IS200BAIAH1BCB 滑入控制架并垂直定位

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS200BAIAH1BCB是通用电气公司生产的桥接应用接口板(BAIA)。

IS200BAIAH1BCB是用来替代印刷电路板的。该板包含存储在工厂安装的EEPROM上的预加载固件。这个EEPROM不应该被移除或重新编程，如果它损坏了整个板将需要更换。有一个RS-232C I/O接口，从DSPX板到键盘和PC的驱动器。

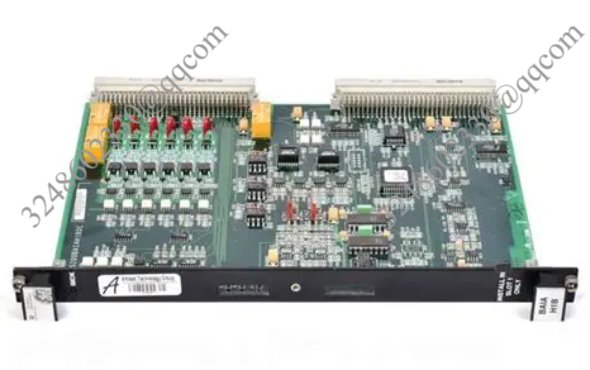

IS200BAIAH1BCB通常滑入控制架并垂直定位。该单板应始终安装在正确的槽位，因为槽位通常是为特定的单板配置的。将单板插入错误的槽位会损坏单板。面板上有一个标签，指示用户只能将此板安装到1号槽位。此外，在这个板的面板上是一个标有IMOK的LED指示灯。还有两个弹射标签和两个安装螺钉，将帮助用户安装和从机架上拆卸板。

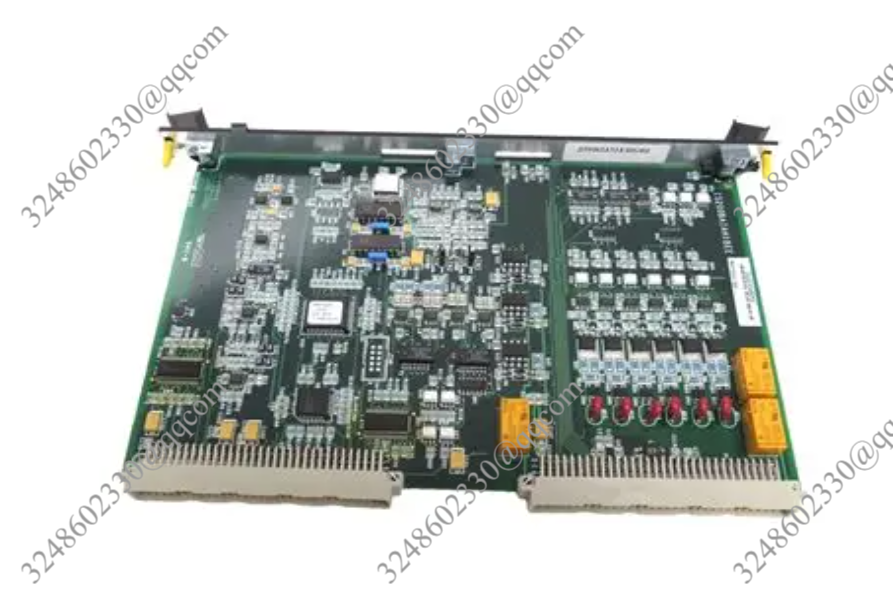

IS200BAIAH1BCB有许多组件。它有50多个集成电路，3个继电器，6个晶体管，一个电感，6个二极管，5个跳线，一个JTAG连接器和两个变压器。这张卡片上有一百多个电容器和电阻器。总共有两个连接器插入位于控制机架组件上的卡槽。

有关安装IS200BAIAH1BCB的更多信息，请阅读数据表:GEI-100268A，最初由通用电气生产。

IS200BAIAH1BCB 滑入控制架并垂直定位

The IS200BAIAH1BCB is a bridge Application Interface Board (BAIA) manufactured by General Electric Company.

IS200BAIAH1BCB is used to replace printed circuit boards. The board contains pre-loaded firmware stored on a factory-installed EEPROM. This EEPROM should not be removed or reprogrammed, and if it damages the entire board will need to be replaced. There is an RS-232C I/O interface from the DSPX board to the keyboard and PC's drive.

The IS200BAIAH1BCB usually slides into the control frame and is positioned vertically. The board should always be installed in the correct slot, as the slot is usually configured for a specific board. Inserting a board into an incorrect slot may damage the board. There is a label on the panel instructing the user to install this board only into slot 1. In addition, on the panel of this board is an LED indicator labeled IMOK. There are also two ejection tabs and two mounting screws that will help the user install and remove the board from the rack.

The IS200BAIAH1BCB has many components. It has more than 50 integrated circuits, three relays, six transistors, an inductor, six diodes, five jumpers, a JTAG connector, and two transformers. There are over a hundred capacitors and resistors on this card. A total of two connectors are inserted into card slots located on the control rack assembly.

For more information on installing the IS200BAIAH1BCB, please read the data sheet :GEI-100268A, originally manufactured by General Electric.

IS200BAIAH1BCB 滑入控制架并垂直定位
