IS200ATBAG1BAA1 应用I/O终端板

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

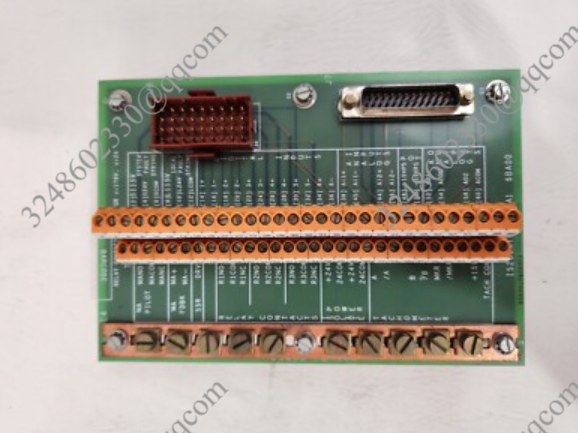

IS200ATBAG1AAA是为Mark VI系列设计的应用I/O终端板。IS200ATBAG1AAA为控制组件背板(CABP)的背板连接器J6/J7上的信号提供端子排连接。该板用于创新系列驱动器。这些电路板安装在控制柜内的din导轨上，保险丝由外部供应。这个模型是G1AA修订版的一部分，它有三个引脚重新分配，其中一个重新分配是I24N，它有一个隔离的24伏返回。

IS200ATBAG1AAA有一个端子排，有60个位置连接到CABP板上的J6/J7连接器。这个接线盒有两行30个连接器。连接器按块标示如下:系统故障串、本地故障串、数字输入、模拟输入、锅、模拟输出、MA导频、MA Fdbk、SSR、继电器触点、隔离电源、转速表。它们的一边是电缆屏蔽，另一边是IS200ATBAG1AAA两个连接器，标记为J6和J7。J6为36针垂直公针连接器(4 × 9.)J7是一个25针的垂直公针连接器。

IS200ATBAG1AAA将9个金属螺钉和垫圈安装到支架上。安装单板时，必须拧紧螺钉，将单板固定到位。完整的安装说明可以在GE出版物GEI-100284中找到。除了安装说明外，还有关于更换电路板以及在所选驱动器内更换电路板时所需的说明。

IS200ATBAG1BAA1 应用I/O终端板

The IS200ATBAG1AAA is an application I/O terminal board designed for the Mark VI series. The IS200ATBAG1AAA provides terminal block connections for signals on the backplane connector J6/J7 of the Control component backplane (CABP). The board is used for innovative series drives. These boards are mounted on din rails inside the control cabinet and fuses are supplied externally. This model is part of the G1AA revision, which has three pin reallocations, one of which is the I24N, which has an isolated 24-volt return.

The IS200ATBAG1AAA has one terminal block with 60 positions connected to the J6/J7 connector on the CABP board. This junction box has two rows of 30 connectors. Connectors are marked by block as follows: system fault string, local fault string, digital input, analog input, pot, analog output, MA pilot, MA Fdbk, SSR, relay contacts, isolation power supply, tachometer. They have cable shielding on one side and IS200ATBAG1AAA two connectors, labeled J6 and J7, on the other. J6 is a 36-pin vertical male connector (4 x 9.)J7 is a 25-pin vertical male connector.

IS200ATBAG1AAA installs 9 metal screws and washers to the bracket. When installing boards, you must tighten screws to secure the boards in place. Complete installation instructions can be found in GE publication GEI-100284. In addition to the installation instructions, there are instructions on replacing the board and what is required when replacing the board in the selected drive.
