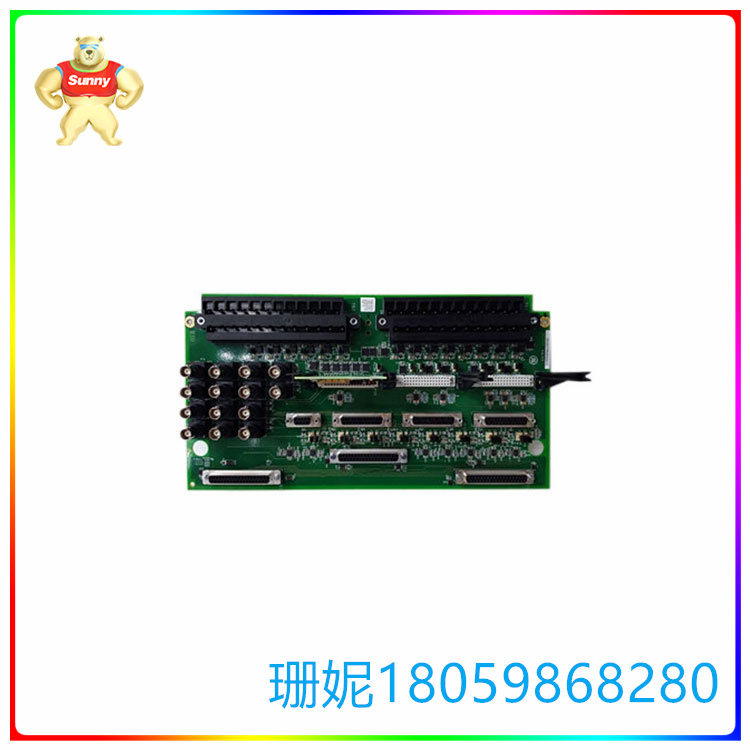

IS200AEPCH1CCB 电路板组件

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS200AEPCH1CCB是通用电气Mark VI控制系统中使用的电路板组件。MKVI包含大量的控制、定时和系统，设计用于燃气或蒸汽工业涡轮机组的可靠、安全运行。

IS200AEPCH1CCB没有像Speedtronic系统中使用的许多GE电路板那样附加面板。它是工厂在几个位置钻孔，包括在每个板角，这些钻孔使用导电材料环每个开口。其他工厂钻的安装孔是沿着板的边缘和板本身的身体。

IS200AEPCH1CCB有一个辅助(子)板安装到其表面使用螺钉安装和支架。这个额外的板有两个集成电路，包括FPBA(现场可编程门阵列)以及母连接器和其他连接器。电路板表面还有晶体管、二极管、电阻器和电容器。辅机标有几个识别代码，包括FA/00和DCOM。

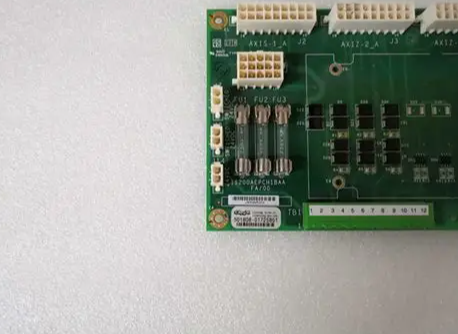

在IS200AEPCH1CCB板的一个角落有两个并排的条形码。它也有几个代码，比如它的子板。主要和辅助板上的大多数组件都标有参考名称，以帮助识别。主板包括端子带、集成电路、保险丝和多插孔(公)连接器等组件。

IS200AEPCH1CCB 电路板组件

The IS200AEPCH1CCB is a circuit board component used in the General Electric Mark VI control system. The MKVI contains a wide range of controls, timing and systems designed for the reliable and safe operation of gas or steam industrial turbines.

The IS200AEPCH1CCB does not have an attached panel like many GE boards used in Speedtronic systems. It is the factory that holes holes in several locations, including at each board corner, and these holes use conductive materials to ring each opening. Other factory drilled mounting holes are along the edge of the board and the body of the board itself.

The IS200AEPCH1CCB has an auxiliary (sub-) plate mounted to its surface using screw mounting and brackets. This additional board has two integrated circuits, including FPBA(Field Programmable Gate Array) as well as female connectors and other connectors. There are also transistors, diodes, resistors and capacitors on the board surface. Auxiliary engines are marked with several identification codes, including FA/00 and DCOM.

In one corner of the IS200AEPCH1CCB board there are two side-by-side barcodes. It also has several codes, such as its daughter board. Most components on the main and auxiliary boards are labeled with reference names to aid identification. The motherboard includes components such as terminal bands, integrated circuits, fuses, and multi-jack (male) connectors.

IS200AEPCH1CCB 电路板组件

【下单请联系我们】

欢迎访问厦门雄霸

销售经理：何小姐

地址：厦门市思明区吕岭路1733号创想中心2009室

（1）24小时电子邮件回复（12小时）;

（2）对于运往亚洲以外的国家/地区，请联系卖方。

【常见问题】

无论您对库存，价格，故障排除还是其他方面有任何疑问，我们都能满足您的需求。请致电我们，填写我们的表格，或向我们发送电子邮件-任何适合您的方式。期待您的回音！

问：您的交货时间如何？

答：我们有很多库存商品，3-5天您将收到它。

问：你们提供保修吗？

答：是的，我们为所有剩余的部件提供1年保修。

问：您可以接受哪些付款方式？

答：通常我们在中国大陆接受T/T和人民币转账
