IS200AEPCH1ABC 安装的辅助卡

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS200AEPCH1ABC是来自GE的Speedtronic Mark VI系统的PCB组件部分。这包含了许多系统，定时和控制设计，以确保蒸汽和燃气工业涡轮系统的安全和可靠的操作。

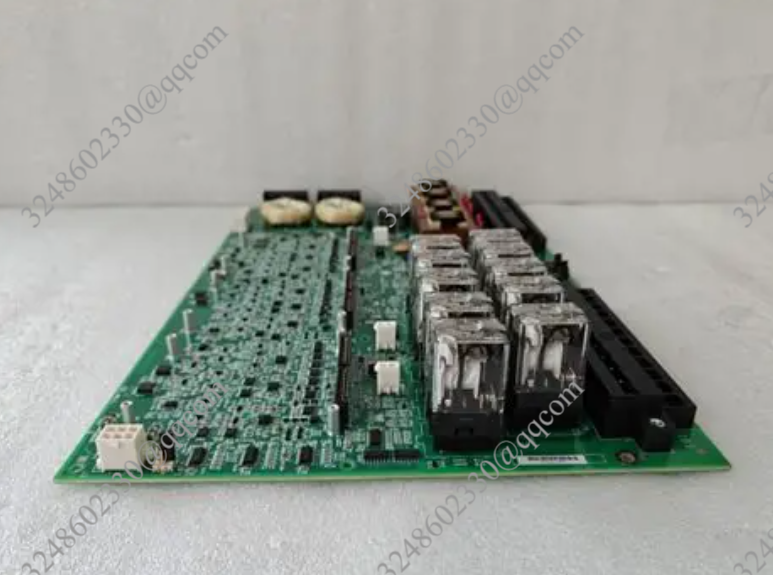

IS200AEPCH1ABC是一个没有面板的小矩形卡。板子的每个角都经过工厂钻孔。每一个钻孔都被导电材料包围着。还有其他工厂钻的孔位于板的身体和沿板的边缘。

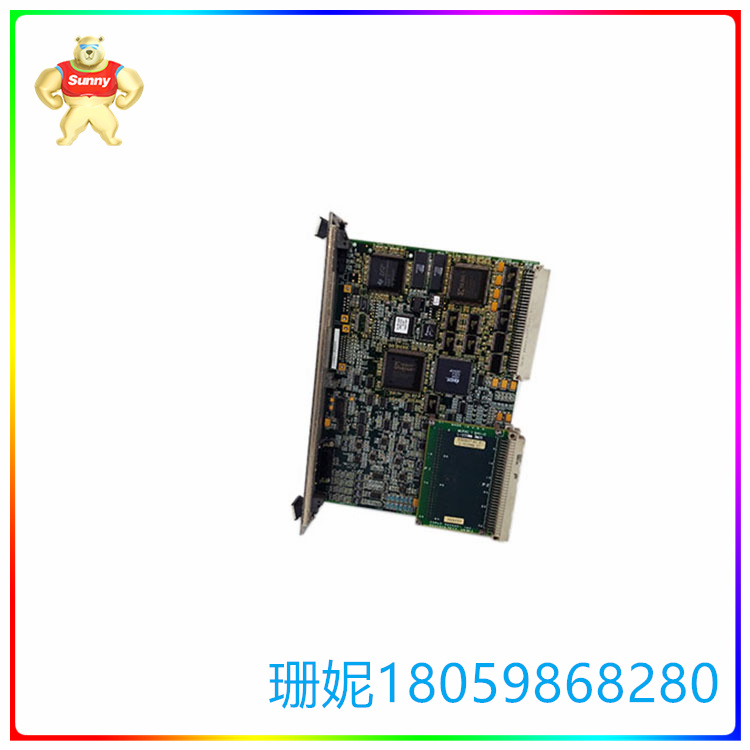

IS200AEPCH1ABC设计有一个安装的辅助卡。这张卡几乎位于IS200AEPCH1ABC板的中心。它是安装到主板使用螺钉螺纹通过僵局。辅助板上有两个母连接器，带有FPGA和其他集成电路，以及其他几个连接器。它也有电容器、电阻器、二极管和晶体管。辅助板上标有DCOM和FA/00等代码。

IS200AEPCH1ABC有两个附着在其表面的条形码。这块板上标有几个识别代码。大多数组件都在附近打印了参考名称，以便于识别。组件包括三个熔断器，两个端子带，集成电路和各种尺寸的多个插孔连接器。

更多关于IS200AEPCH1ABC的信息，它的使用，以及如何在Mark VI系统中正确安装电路板，可以使用GE出版物，如用户指南，数据表和手册。这些出版物还将向用户提供重要的安全信息。只有训练有素的员工才能维护这些设备。

IS200AEPCH1ABC 安装的辅助卡

The IS200AEPCH1ABC is a PCB component from GE's Speedtronic Mark VI system. This includes a number of systems, timing and control designs to ensure the safe and reliable operation of steam and gas industry turbine systems.

IS200AEPCH1ABC is a small rectangular card without a panel. Every corner of the board is drilled through the factory. Each borehole is surrounded by conductive material. There are other factory drilled holes located in the body of the board and along the edge of the board.

The IS200AEPCH1ABC is designed with a mounted auxiliary card. This card is located almost in the center of the IS200AEPCH1ABC board. It is mounted to the motherboard using screw threads through gridlock. On the auxiliary board are two female connectors with FPGas and other integrated circuits, as well as several other connectors. It also has capacitors, resistors, diodes and transistors. The auxiliary boards are marked with codes such as DCOM and FA/00.

The IS200AEPCH1ABC has two bar codes attached to its surface. This board is marked with several identification codes. Most components have a reference name printed nearby for easy identification. Components include three fuses, two terminal bands, integrated circuits, and multiple jack connectors of various sizes.

More information about the IS200AEPCH1ABC, its use, and how to properly mount a board in a Mark VI system can be found using GE publications such as user guides, data sheets, and manuals. These publications will also provide users with important safety information. Only trained staff can maintain the equipment.

IS200AEPCH1ABC 安装的辅助卡
