IS200AEPAH1BKE 三模块或单冗余类型

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

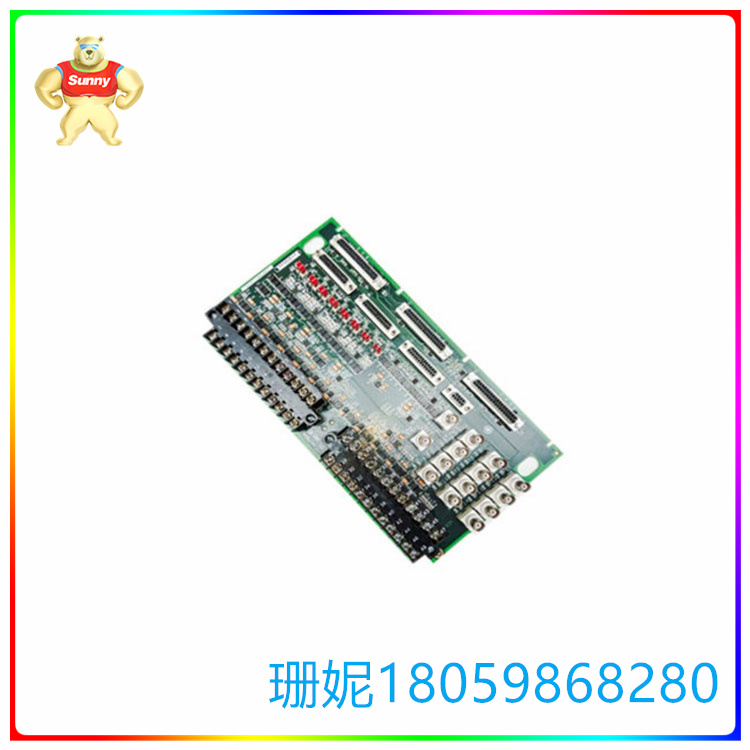

IS200AEPAH1BKE型号为印刷电路板。当AEPA板被建造时，它是与一个可选的辅助板一起建造的。可选的辅助板将用螺钉插入到AEPA的支架上。如果辅助板通过左上角的两个连接器连接到主模块上。两个连接器为公连接器。有许多集成电路包括但不限于三针母插头和两个母插头。

AEPA模块可以与三模块或单冗余类型一起使用。如果采用三模冗余架构，则有三个独立的控制模块、ionet和电源。TMR架构还允许通过电子器件内的单点故障，并且可以在过程运行时修复模块或有缺陷的卡。

IS200AEPAH1BKE型号的一些元件是12个继电器和一些金属氧化物压敏电阻。在电路板的上角有一个主要的金属氧化物压敏电阻。沿着AEPA板的边缘，共有19个白色女性垂直引脚连接器，连接器的范围从两个引脚到18个引脚。

一些可以与IS200AEPAH1BKE板一起使用的潜在输入和输出应用。其中一些是同步，跳闸系统，轴电压和电流监测。这些应用程序只有少数可以与AEPA板一起运行。有关I/O应用程序的更多信息，请参阅GER-4193A GE电源系统手册。

IS200AEPAH1BKE 三模块或单冗余类型

The IS200AEPAH1BKE model is a printed circuit board. When the AEPA board was being built it was built with an optional auxiliary board. The optional auxiliary board will be inserted with screws into standoffs on the AEPA. If the auxiliary board is connected to the main module with the two connectors in the upper left-hand corner. The two connectors are male connectors. There is a multitude of integrated circuits which include but are not limited to a three-pin female connector, and two female phone plugs.

The AEPA module can be used with triple modular or simplex redundancy types. If used with triple modular redundancy type architecture there are three separate and independent control modules, IONets, and power supplies. The TMR architecture also allows for the riding through of a single-point failure within the electronics and can repair the module or defective card while the process is running.

Some of the components of the IS200AEPAH1BKE model are twelve relays and some metal oxide varistors. There is one main metal oxide varistor in the upper corner of the board. Along the edges of the AEPA board, there are a total of nineteen white female vertical pin connectors, the connectors range from two pins to eighteen pins.

Some of the potential input and output applications that can be used with the IS200AEPAH1BKE board. Some of these are synchronizing, trip system, shaft voltage, and current monitoring. These applications are only a few of which can be run with the AEPA board. For more information on the I/O applications refer to the GER-4193A GE Power Systems manual.

IS200AEPAH1BKE 三模块或单冗余类型
