IS200ACLEH1A 应用控制层模块

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS200ACLEH1A是GE应用控制层模块，用于EX2100励磁系统。在升级到更高级别的IS215之前，IS200版本的ACLE是基础级板，而不是IS215。IS200ACLEH1A，通常被称为ACLE，是一种基于微处理器的主控制器，设计用于通过以太网通信网络同时执行多个作业。IS200ACLEH1A的所有软件和配置任务都需要使用GE控制系统工具箱用于EX2100励磁系统控制。

IS200ACLEH1A有一个宽面板，上面印有制造商徽标和板号。由于这种宽面板，该模块占用了EX2100励磁控制系统机架中的两个插槽。IS200ACLEH1A的单板组件上也有单板号和GE标识。它有代码6BA01沿着PCB的一个边缘印刷。板载组件往往由通用电气手册(如GEI-100584A)中的参考标志标识。

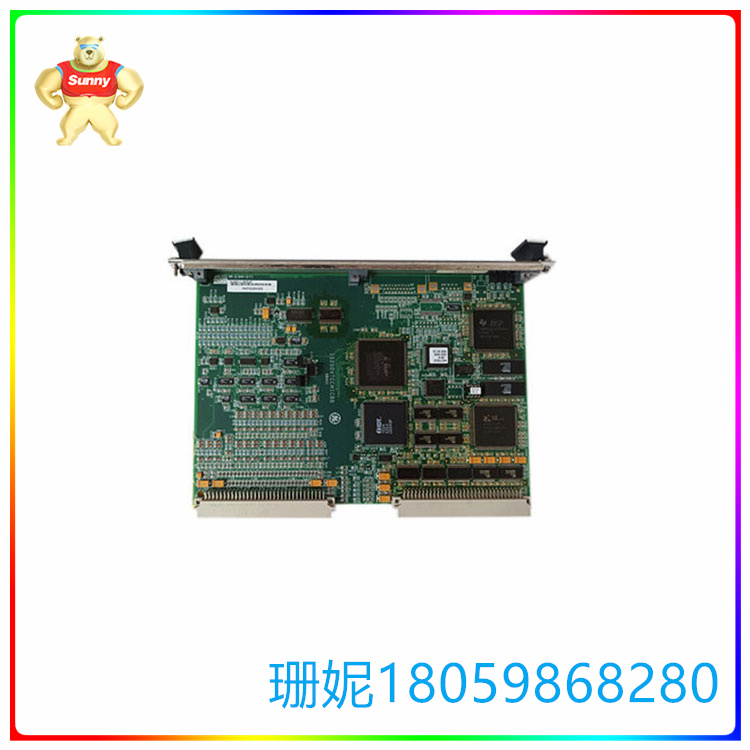

IS200ACLEH1A有几个电路板连接器，包括位于右上角的垂直公针连接器，位于电路板后边缘的背板连接器和多针带状电缆连接器。带状连接器连接到辅助板，该辅助板占板中部的大部分。这个辅助板有许多组件，包括多个引脚连接器和集成电路。主板还有一个IDE到SATA转换器，可容纳128 MB卡。

面板的ACLE模块具有易于识别的状态led。这些状态led包括:OK(看门狗定时器启用)，Active(微处理器访问内存)，ENET(以太网活动)和FLASH(闪存写操作进行中)。

IS200ACLEH1A 应用控制层模块

The IS200ACLEH1A is a GE application control layer module used in the EX2100 excitation system. Before upgrading to the higher level IS215, the IS200 version of ACLE is the base level board, not the IS215. The IS200ACLEH1A, commonly referred to as the ACLE, is a microprocessor-based master controller designed to perform multiple jobs simultaneously over an Ethernet communication network. All software and configuration tasks for the IS200ACLEH1A require the use of the GE Control System Toolbox for EX2100 excitation system control.

The IS200ACLEH1A has a wide panel with the manufacturer's logo and board number printed on it. Because of this wide panel, the module occupies two slots in the EX2100 excitation control system rack. The board component of the IS200ACLEH1A also has a board number and GE identifier. It has the code 6BA01 printed along one edge of the PCB. Onboard components are often identified by reference marks in General Electric manuals such as GEI-100584A.

The IS200ACLEH1A has several board connectors, including a vertical male pin connector located in the upper right corner, a backplane connector located on the back edge of the board, and a multi-pin ribbon cable connector. The strip connector is connected to the auxiliary plate, which takes up most of the middle of the board. This auxiliary board has many components, including multiple pin connectors and integrated circuits. The motherboard also has an IDE to SATA converter that can hold 128 MB cards.

The ACLE module of the panel has an easily identifiable status led. These status leds include :OK(watchdog timer enabled), Active(microprocessor access memory), ENET(Ethernet activity), and FLASH(flash write operation in progress).

IS200ACLEH1A 应用控制层模块

【下单请联系我们】

欢迎访问厦门雄霸

销售经理：何小姐

地址：厦门市思明区吕岭路1733号创想中心2009室

（1）24小时电子邮件回复（12小时）;

（2）对于运往亚洲以外的国家/地区，请联系卖方。

【常见问题】

无论您对库存，价格，故障排除还是其他方面有任何疑问，我们都能满足您的需求。请致电我们，填写我们的表格，或向我们发送电子邮件-任何适合您的方式。期待您的回音！

问：您的交货时间如何？

答：我们有很多库存商品，3-5天您将收到它。

问：你们提供保修吗？

答：是的，我们为所有剩余的部件提供1年保修。

问：您可以接受哪些付款方式？

答：通常我们在中国大陆接受T/T和人民币转账
