IS420ESWBH5A 单模光纤端口

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS420ESWBH5A IONet Switch是ESWB硬件的第五版，也是最终版。本交换机除光纤接口外，其他型号基本相同，有2个光纤接口。本交换机的两个光纤端口为100Base-LX10单模光纤端口，采用lc型连接;请注意，由于这些端口是单模光纤端口，需要额外的单模传感器;这个换能器的零件号是65G2100-008，是通用电气公司生产的。

这个包的操作主要集中在缓冲包的能力上。IS420ESWBH5A包被认为是一级以太网交换机，具有连续的多播和/或广播数据包流，可以缓冲传入的流，并在完全接收后将其发送出去。请注意，当多个流进入时，一次只能释放一个流，所有剩余的流将在以后的时间被缓冲。

这种开关有能力安装在多个位置，危险和非危险一样，以及在两个不同的方向。IS420ESWBH5A开关的危险场所为一类，二区;二级，二区和ATEX。该开关将安装在din导轨上，并放置在与导轨平行或垂直的开关长边缘上。当并联安装时，需要259B2451BVP1夹。如果在第三方场合更换交换机，交换机可以采用面板安装方式，面板安装时使用的螺钉与前一个部件相同。

IS420ESWBH5A 单模光纤端口

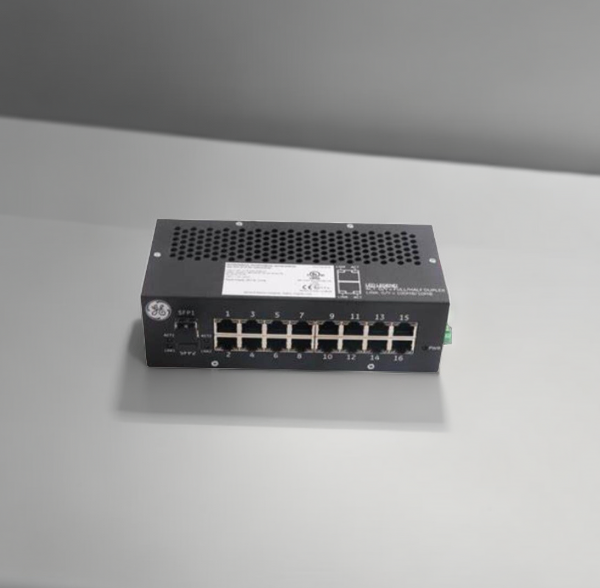

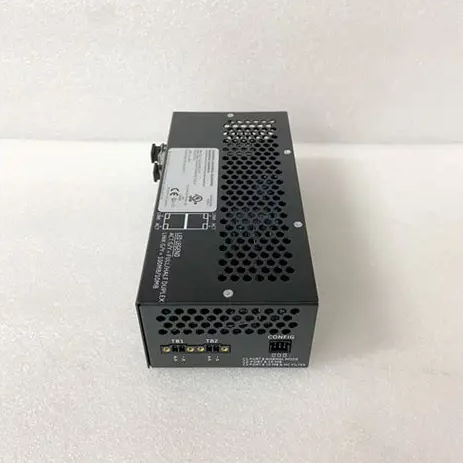

The IS420ESWBH5A IONet Switch is the fifth and final version of ESWB hardware. This switch is of the same model except for optical fiber ports, and has two optical fiber ports. The two optical fiber ports on the switch are 100Base-LX10 single-mode optical fiber ports and are connected by lc. Note that since these ports are single-mode fiber optic ports, additional single-mode sensors are required; The transducer, part number 65G2100-008, is manufactured by General Electric.

The operation of this package focuses on the ability to buffer the package. The IS420ESWBH5A packet is considered a Tier 1 Ethernet switch with a continuous stream of multicast and/or broadcast packets that can buffer incoming streams and send them out when fully received. Note that when multiple streams enter, only one stream can be released at a time, and all remaining streams will be buffered at a later time.

This switch has the ability to be installed in multiple locations, dangerous and non-dangerous alike, as well as in two different directions. IS420ESWBH5A switch dangerous places for Class I, Zone 2; Level 2, Zone 2 and ATEX. The switch will be mounted on the din rail and placed on the long edge of the switch parallel or perpendicular to the rail. When installed in parallel, 259B2451BVP1 clip is required. If a third-party switch is to be replaced, install the switch on the panel. The screws used for installing the panel are the same as those used in the previous part.

IS420ESWBH5A 单模光纤端口
