489-P5-LO-A20 发电机管理继电器
【产品详情】
1）备件
2）保修期：12个月！
3）包装：原包装与纸箱。
4）交货时间：付款后3天内发货
5）所有货物将在发货前进行测试。
489- p5 - lo - a20是一种发电机管理继电器，由GE Multilin为489系列制造。这个继电器有5个A相CT次级。LO控制电源为20 ~ 60vdc, 20 ~ 48vac, 48hz ~ 62hz。该继电器上的模拟输出为4至20 mA。这个继电器有一个基本的显示。
该单元的运输重量为10千克(约)，尺寸为21.6厘米(长)x 22.4厘米(宽)x 25.2厘米(高)。前面板包括多个状态led以及输入按钮，数字键盘，输入端口和用于读取信息的LCD屏幕在单元的位置。
“频率”取值范围为0.00 ~ 90.00 Hz。“中性伏特(3)”参数取值范围为0 ~ 25000 V。“平均电压”参数取值范围为额定电压的0.00 ~ 1.50倍。功率因数参数的范围为0.01至1.00超前/滞后。无功功率(Mvar)参数取值范围为额定电压的-2.00 ~ 2.00。实际功率参数的取值范围为额定电压的-2.00 ~ 2.00倍。视在功率参数的取值范围为额定电压的0.00至2.00倍。模拟输入1 ~ 4的取值范围为-50000 ~ +50000。转速表参数的范围为0到7200rpm。“已用热容量”取值范围为0 ~ 100%。当前需求参数的范围为0.00到20.00 × FLA。Mvar需求参数的范围为额定电压的0.00至2.00倍。MW需求参数的范围为额定电压的0.00至2.00倍。MVA需求参数的范围为额定电压的0.00至2.00倍。
489-P5-LO-A20 发电机管理继电器
The 489-P5-LO-A20 is a generator management relay manufactured by GE Multilin for the 489 series. This relay has 5 A phase CT secondary. LO control power supply is 20 ~ 60vdc, 20 ~ 48vac, 48hz ~ 62hz. The analog output on this relay is 4 to 20 mA. This relay has a basic display.

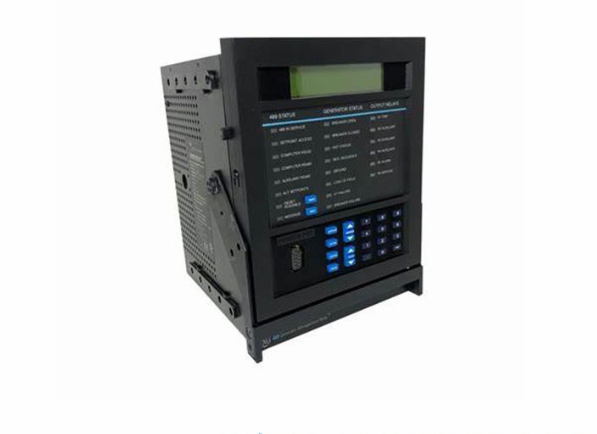

The unit has a transport weight of 10 kg (approx.) and dimensions of 21.6 cm (L)x 22.4 cm (W)x 25.2 cm (H). The front panel includes multiple status leds as well as input buttons, numeric keypads, input ports and an LCD screen for reading information at the location of the unit.
Frequency ranges from 0.00 to 90.00 Hz. Neutral Volt (3) ranges from 0 to 25000 V. Average Voltage ranges from 0.00 to 1.50 times of the rated voltage. The power factor parameters range from 0.01 to 1.00 lead/lag. Reactive power (Mvar) The value ranges from -2.00 to 2.00 of the rated voltage. The actual power parameter ranges from -2.00 to 2.00 times of the rated voltage. The value of the apparent power parameter ranges from 0.00 to 2.00 times of the rated voltage. The value of analog input 1 to 4 ranges from -50000 to +50000. The tachometer parameters range from 0 to 7200rpm. Used heat capacity ranges from 0 to 100%. The current requirement parameters range from 0.00 to 20.00 × FLA. Mvar requirements range from 0.00 to 2.00 times the rated voltage. The MW requirement parameters range from 0.00 to 2.00 times the rated voltage. The MVA requirements range from 0.00 to 2.00 times the rated voltage.
489-P5-LO-A20 发电机管理继电器
| GE | IS200TRPAH2AHE | GE | DS200CTBAG1ADD | GE | IS215UCVEH2AB |
| GE | IS200TSVCH1AJE | GE | DS200DCFBG1 BGB | GE | IS215UCVEH2AE |
| GE | IS200TTURH1CFD | GE | DS200DCFBG1BLC | GE | IS215UCVEM10A |
| GE | IS200TVBAH2ACC | GE | DS200DMCBG1AED | GE | IS215VPROH1BD |
| GE | IS200TVIBH2BBB | GE | DS200DMCBG1AKG | GE | IS220PAICH1A |
| GE | IS200VAICH1DAB | GE | DS200DPCBG1AAA | GE | IS220PAICH2A |
| GE | IS200VCRCH1B | GE | DS200DSPCH1ADA | GE | IS220PAOCH1A |
| GE | IS200VRTDH1D | GE | DS200FGPAG1AHD | GE | IS220PDOAH1A |
| GE | IS200VTCCH1CBB | GE | DS200FSAAG2ABA | GE | IS220PPDAH1B |
| GE | IS200VTURH2BAC | GE | DS200IIBDG1A | GE | IS220PPRFH1A |
| GE | IS200WETBH1ABA | GE | DS200IQXSG1AAA | GE | DS200L DCCH1AGA |
| GE | IS200WNPSH1ABA | GE | DS200KL DBG1ABC | GE | DS200L DCCH1ANA |
| GE | VMIVME-7750 | GE | IS200SRTDH2ACB | GE | DS200SDCCG1AEC |
| GE | VMIVME-7750-734001 | GE | IS220PAICH2A | GE | DS200SDCCG1AFD |
| GE | 350-027750-734001K | GE | 336A4940CSP11 | GE | DS200SDCCG1AGD |
| GE | VMIACC-5595-208 | GE | IS220PDIAH1A | GE | DS200SDCCG5AHD |
| GE | 350-805595-208J | GE | 336A4940CSP1 | GE | DS200SDCIG1ABA |
| GE | RS-FS-9001 | GE | IS220PDOAH1A | GE | DS200SDCIG2AEB |
| GE | 362A1052P404 | GE | 3364940CSP2 | GE | DS200SDCIG2AHB |
| GE | VMICVMIVME-7740-850 | GE | IS220PRTDH1BC | GE | DS200SIOBH1AAA |
| GE | 350-007740-850L | GE | 336A5026ADP13 | GE | IS220PAICH2A |
| GE | 04220FL11232A | GE | IS230SNRTH2A | GE | IS200EGPAG1BCA |
| GE | H201Ti | GE | IS200WETBH1ABA | GE | IS200EPSMG1AED |
| GE | IS220UCSAH1A | GE | SR750-P5-G5-S5-HI-A20-R-T | GE | IS200ERIOH1AAA |
| GE | H201Ci-1 | GE | IS200SRTDH2ACB | GE | IS200HSL AH2ADE |
| GE | UR6CH | GE | IS220YDIAS1A | GE | GE IC698CPE020-JX |
| GE | UR6TH | GE | DS200L DCCH1ANA | GE | VMIVME-7750 |
| GE | UR6UH | GE | IS230SNIDH1A | GE | GE IS200SPROH1AAB MRP663860 |
