DS215TCQAG1BZZ01A 模拟I/O板
【产品详情】
1）备件
2）保修期：12个月！
3）包装：原包装与纸箱。
4）交货时间：付款后3天内发货
5）所有货物将在发货前进行测试。

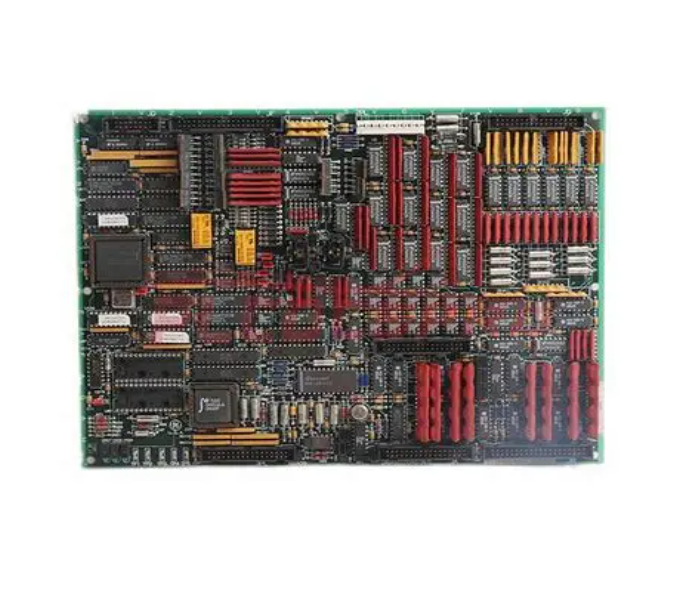

GE RST模拟I/O板DS200TCQAG1包含6个34针连接器，2个40针连接器和6个跳线。该板也有6个led。led排成两行，每行有三个led。当该单板安装在驱动器中时，它安装在其他单板之间，并且从板柜的玻璃正面可以看到GE RST模拟I/O板DS200TCQAG1的侧面。
led是这样安排的，当驱动器在运行时，操作员可以看到它们。led指示板的6个功能的健康状况，并在活动发生时闪烁。要了解每个LED的用途，您可以阅读工厂提供的原始板的安装说明中提供的有关LED的信息。驱动器操作员可以一眼确定电路板的健康状况和正在进行的处理。
JA, JB, JD, JE, JG和3PL是分配给34针连接器的id。id被印在每个连接器旁边的电路板表面上。当您计划更换电路板时，请检查有缺陷的电路板，同时它仍在驱动器中，并在带状电缆上标记它所连接的连接器的ID。它将加快新板的安装，因为您将立即知道在哪里连接34针带状电缆。通过连接器将带状电缆连接到电路板上以将其分离。
DS215TCQAG1BZZ01A常见问题
DS215TCQAG1BZZ01A读取什么类型的输入?
DS215TCQAG1BZZ01A读取LVDT输入。VDC1和VDC2的第一个冗余传感器输入也通过专用带状电缆通信到< R >控制处理器中的DS215TCQAG1BZZ01A。
哪些调节器是DS215TCQAG1BZZ01A软件的一部分?
数字控制稳压器是Mark V中每个控制处理器中DS215TCQAG1BZZ01A上I/O组态软件的一部分。
当Mark V发生故障自杀时，DS215TCQAG1BZZ01A会发生什么?
当Mark V上的电流故障自杀使能时，DS215TCQAG1BZZ01A上的继电器将断电，DS215TCQAG1BZZ01A上的一对常闭触点将一起短路输出端子。
DS215TCQAG1BZZ01A 模拟I/O板
The GE RST analog I/O board DS200TCQAG1 contains six 34-pin connectors, two 40-pin connectors, and six jumpers. The board also has 6 leds. The leds are arranged in two rows with three leds in each row. When the board is mounted in a drive, it is mounted between other boards, and the sides of the GE RST analog I/O board DS200TCQAG1 are visible from the glass front of the board cabinet.
The leds are arranged in such a way that the operator can see them when the drive is running. The led indicator panel has 6 functions for health and flashes when activity occurs. To understand the purpose of each LED, you can read the information about the LED provided in the installation instructions of the original board provided by the factory. The driver operator can determine at a glance the board's health and ongoing treatment.
JA, JB, JD, JE, JG, and 3PL are the ids assigned to 34-pin connectors. The id is printed on the board surface next to each connector. When you plan to replace the board, check the defective board while it is still in the drive and mark the ID of the connector to which it is connected on the strip cable. It will speed up the installation of the new board because you will immediately know where to connect the 34-pin ribbon cable. Attach ribbon cables to the circuit board via connectors to separate it.
DS215TCQAG1BZZ01A Common problems
What type of input does the DS215TCQAG1BZZ01A read?
DS215TCQAG1BZZ01A reads the LVDT input. The first redundant sensor inputs for the VDC1 and VDC2 are also communicated via a dedicated ribbon cable to the DS215TCQAG1BZZ01A in the < R > control processor.
Which regulators are part of the DS215TCQAG1BZZ01A software?
The digital control regulator is part of the I/O configuration software on the DS215TCQAG1BZZ01A in each control processor in the Mark V.
What happens to DS215TCQAG1BZZ01A when Mark V malfunctions and commits suicide?
When the current fault suicide on the Mark V is enabled, the relay on the DS215TCQAG1BZZ01A will be powered off, and the pair of normally closed contacts on the DS215TCQAG1BZZ01A will short-circuit the output terminals together.
