DS215DMCBG1AZZ03A 高速电子驱动板
【产品详情】
1）备件
2）保修期：12个月！
3）包装：原包装与纸箱。
4）交货时间：付款后3天内发货
5）所有货物将在发货前进行测试。

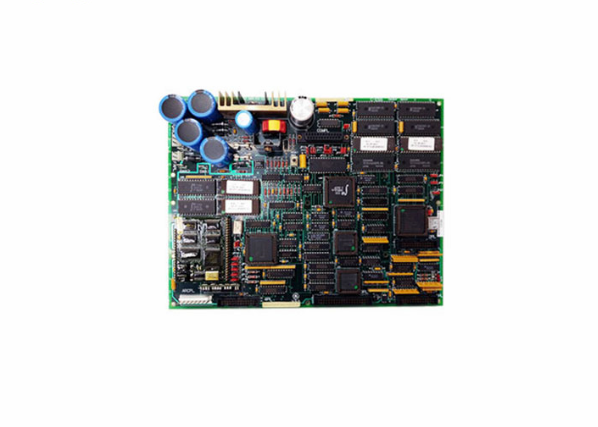

DS215DMCBG1AZZ03A MK V GE高速电子驱动板
DS215DMCBG1AZZ03A是GE制造的用于MKV Speedtronic系统的电路板组件。MKV是为控制燃气和蒸汽轮机系统而设计的，而MKV板组件不再由原始制造商制造，它们可以在这里找到作为修复和全面测试的单位在AX控制。DS215DMCBG1AZZ03A是一块驱动板。与类似的DS200板相比，它提供了更新的硬件和/或固件。
DS215DMCBG1AZZ03A是一款人口密集的电路板，具有以下规格:
它有五个垂直电缆连接器。这包括四个公连接器和一个母连接器。
它有三个垂直头连接器。
它有三个插入式连接器。
它有超过20个跳线开关。
它有一个复位开关位于其左上方象限。
有LED指示灯。
它有一个电感线圈。
它有TP测试点检查板电压。
它有超过55个集成电路。这包括振荡芯片、现场可编程门阵列和用于存储数据的EPROM芯片。
它有几个保险丝组件。
它由两个辅助板填充。这包括一个垂直安装板和一个水平安装板。两个板都位于左下角。
DS215DMCBG1AZZ03A采用电阻网络阵列、晶体管以及各种电容、二极管和电阻。该板是标记对齐沿其两个边缘使用字母和对齐标记和缺口。它被钻在板的角落，在板的中心，并有额外的钻孔沿板的边缘。
DS215DMCBG1AZZ03A 高速电子驱动板
DS215DMCBG1AZZ03A MK V GE high-speed electronic driver board
The DS215DMCBG1AZZ03A is a GE manufactured circuit board assembly for MKV Speedtronic systems. MKV is designed to control gas and steam turbine systems, while MKV board components are no longer manufactured by the original manufacturer, they can be found here as repaired and fully tested units under AX control. The DS215DMCBG1AZZ03A is a drive board. It offers updated hardware and/or firmware compared to similar DS200 boards.
The DS215DMCBG1AZZ03A is a densely populated circuit board with the following specifications:
It has five vertical cable connectors. This includes four male connectors and one female connector.
It has three vertical head connectors.
It has three plug-in connectors.
It has more than 20 jumper switches.
It has a reset switch located in its upper left quadrant.
There are LED indicators.
It has an inductor coil.
It has TP test points to check the board voltage.
It has more than 55 integrated circuits. This includes oscillating chips, field programmable gate arrays, and EPROM chips for storing data.
It has several fuse assemblies.
It is filled with two auxiliary plates. This includes a vertical mounting plate and a horizontal mounting plate. Both boards are located in the lower left corner.
The DS215DMCBG1AZZ03A uses resistance network arrays, transistors, and various capacitors, diodes, and resistors. The board is marked aligned along its two edges using letters and aligned marks and notches. It is drilled in the corner of the board, in the center of the board, and has additional drilling holes along the edge of the board.
For important information on handling and installation, please consult the technical support products previously provided by GE. This includes manuals and data sheets.
