DS200TCPDG1BEC 有36个OK led和1个10针连接器
【产品详情】
1）备件
2）保修期：12个月！
3）包装：原包装与纸箱。
4）交货时间：付款后3天内发货
5）所有货物将在发货前进行测试。
GE配电板DS200TCPDG1BEC具有8个拨动开关，36个熔断器和4个信号线端子。它还有36个OK led和1个10针连接器。GE配电板DS200TCPDG1BEC配有36个熔断器的黑色塑料外壳。保险丝位于罐内的垂直位置，在需要时易于访问和更换。要更换电路板上的保险丝，拧开保险丝盒的顶部即可。顶部仍然连接到罐方便使用。用拇指和另一根手指把保险丝从药筒里取出来。最好的做法是丢弃烧坏的保险丝，这样它就不会意外地再次插入电路板上的一个罐中。要安装新的保险丝，请将保险丝对准开口并放入罐中。保险丝的任何一端都可以放入罐中。把盖子放在罐子上，拧一拧就关上了。
要确定保险丝烧断并需要更换，请考虑不可能对保险丝进行目视检查，因为保险丝在罐内。然而，每个保险丝旁边都有一个LED，表明保险丝是OK的。当点亮时，绿色LED表示保险丝中的元件完好无损，并保护电路板电路。断开时，保险丝烧断或电路板未接收电源。如果所有的led都熄灭，您可能怀疑电路板没有接收电源。
DS200TCPDG1BEC 有36个OK led和1个10针连接器

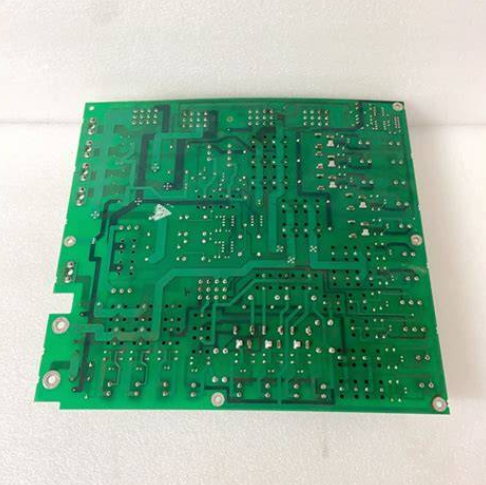

The GE switchboard DS200TCPDG1BEC has 8 toggle switches, 36 fuses and 4 signal line terminals. It also has 36 OK leds and a 10-pin connector. The GE switchboard DS200TCPDG1BEC has a black plastic housing with 36 fuses. The fuse is located vertically inside the tank, making it easy to access and replace if needed. To replace the fuse on the circuit board, unscrew the top of the fuse box. The top is still attached to the can for easy use. Use your thumb and other finger to remove the fuse from the cartridge. The best course of action is to discard the burned fuse so that it does not accidentally insert again into a canister on the circuit board. To install a new fuse, align the fuse with the opening and place it in the can. Either end of the fuse can be put into the can. Put the lid on the jar and close it with a twist.
To determine that a fuse has blown and needs to be replaced, consider that a visual inspection of the fuse is not possible because the fuse is in the tank. However, there is an LED next to each fuse indicating that the fuse is OK. When lit, the green LED indicates that the components in the fuse are intact and protects the board circuit. When disconnected, the fuse is blown or the circuit board does not receive power. If all the leds are off, you may suspect that the board is not receiving power.
DS200TCPDG1BEC 有36个OK led和1个10针连接器
| GE | IS200VTCCH1CBB | GE | DS200FSAAG2ABA | GE | IS220PPDAH1B |
| GE | IS200VTURH2BAC | GE | DS200IIBDG1A | GE | IS220PPRFH1A |
| GE | IS200WETBH1ABA | GE | DS200IQXSG1AAA | GE | DS200L DCCH1AGA |
| GE | IS200WNPSH1ABA | GE | DS200KL DBG1ABC | GE | DS200L DCCH1ANA |
| GE | VMIVME-7750 | GE | IS200SRTDH2ACB | GE | DS200SDCCG1AEC |
| GE | VMIVME-7750-734001 | GE | IS220PAICH2A | GE | DS200SDCCG1AFD |
| GE | 350-027750-734001K | GE | 336A4940CSP11 | GE | DS200SDCCG1AGD |
| GE | VMIACC-5595-208 | GE | IS220PDIAH1A | GE | DS200SDCCG5AHD |
| GE | 350-805595-208J | GE | 336A4940CSP1 | GE | DS200SDCIG1ABA |
| GE | RS-FS-9001 | GE | IS220PDOAH1A | GE | DS200SDCIG2AEB |
| GE | 362A1052P404 | GE | 3364940CSP2 | GE | DS200SDCIG2AHB |
| GE | VMICVMIVME-7740-850 | GE | IS220PRTDH1BC | GE | DS200SIOBH1AAA |
| GE | 350-007740-850L | GE | 336A5026ADP13 | GE | IS220PAICH2A |
| GE | 04220FL11232A | GE | IS230SNRTH2A | GE | IS200EGPAG1BCA |
| GE | H201Ti | GE | IS200WETBH1ABA | GE | IS200EPSMG1AED |
| GE | IS220UCSAH1A | GE | SR750-P5-G5-S5-HI-A20-R-T | GE | IS200ERIOH1AAA |
