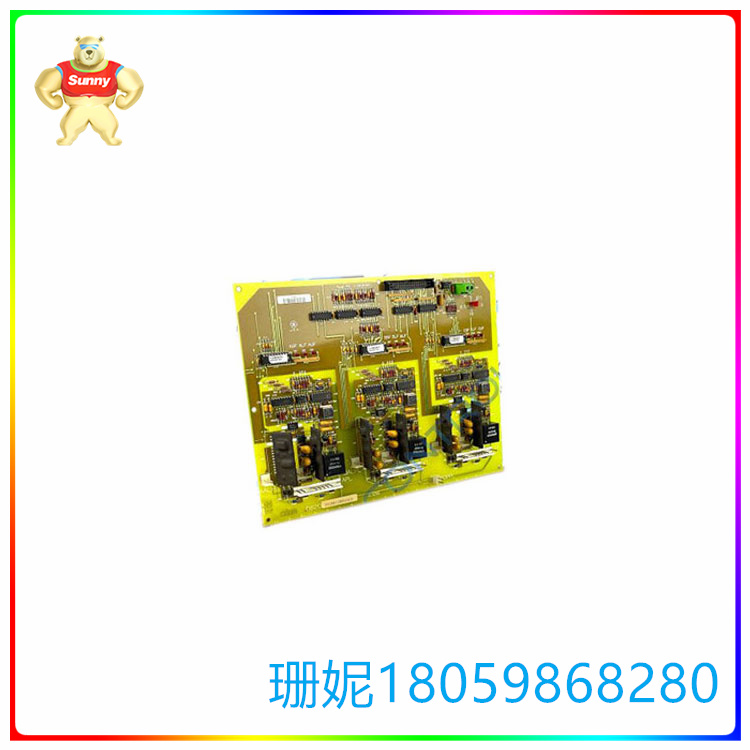

DS200TCEAG1BNE 系统保护核心
【产品详情】
1）备件
2）保修期：12个月！
3）包装：原包装与纸箱。
4）交货时间：付款后3天内发货
5）所有货物将在发货前进行测试。
产品描述
DS200TCEAG1BNE型号由通用电气制造，在Mark V系列中运行。GE将该型号描述为安装在Mark V系统保护核心<P1>中的紧急超速保护单元，用于监控高速保护电路，也可称为保护处理器。当TCEA单元在Mark V系统中时，将使用三种TCEA型号，在保护核心中分别称为<X>、<Y>和<Z>处理器。这些电路板一起使用，以引入多种功能的信号，如火焰检测，自动同步，高低轴速。接收到的信号将通过IONET调节、缩放并通过<X>位置的型号JX1连接器写入系统中的STCA板。
位于Mark V系统R1核心的I/O引擎将使用来自DS200TCEAG1BNE板的数据来执行三个值的中位数选择，结果将通过Corebus传输到控制引擎。DS200TCEAG1BNE型号也用于向涡轮跳闸板(TCTG)发送紧急跳闸信号，TCEA型号将向不同的继电器发送跳闸信号。TCTG上的三个继电器可以执行2/3继电器驱动级投票。所采取的结果将决定是否TCTG板将最终跳闸的单位。安装在Mark V系统内的每个TCEA板都有自己的电源和电源诊断。
关于DS200TCEAG1BNE型号的所有可用信息和更多信息可以在Mark V GEH-6153功能手册中找到。
DS200TCEAG1BNE常见问题解答
DS200TCEAG1BNE是什么?它的用途是什么?
DS200TCEAG1BNE是一款紧急超速保护板;该模型用于监控高速电路，被称为保护处理器。它还用于引入高、低轴速信号、自动同步和火焰检测。
DS200TCEAG1BNE 系统保护核心
Product description
The DS200TCEAG1BNE model is manufactured by General Electric and operates in the Mark V series. GE describes this model as an emergency overspeed protection unit installed in the Mark V system Protection Core <P1> to monitor the high-speed protection circuit, also known as the protection processor. When a TCEA unit is in a Mark V system, three TCEA models will be used, called <X>, <Y>, and <Z> processors in the protection core. These boards are used together to introduce signals for a variety of functions, such as flame detection, automatic synchronization, and high and low shaft speed. The received signal will be adjusted by IONET, scaled, and written to the STCA board in the system via the model JX1 connector in the <X> position.
The I/O engine located at the core of the Mark V system R1 will use data from the DS200TCEAG1BNE board to perform a median selection of three values, and the results will be transmitted to the control engine via Corebus. The DS200TCEAG1BNE model is also used to send emergency trip signals to the turbine jump gate (TCTG), and the TCEA model will send trip signals to different relays. The three relays on the TCTG can perform 2/3 relay drive level voting. The results taken will determine whether the TCTG plate will eventually trip the unit. Each TCEA board installed within the Mark V system has its own power supply and power diagnostics.
All available information about the DS200TCEAG1BNE model and more can be found in the Mark V GEH-6153 function manual.
DS200TCEAG1BNE Frequently Asked Questions
What is DS200TCEAG1BNE? What is it used for?
DS200TCEAG1BNE is an emergency overspeed protection panel. This model is used to monitor high-speed circuits and is called a protection processor. It is also used to introduce high and low axial speed signals, automatic synchronization and flame detection.
