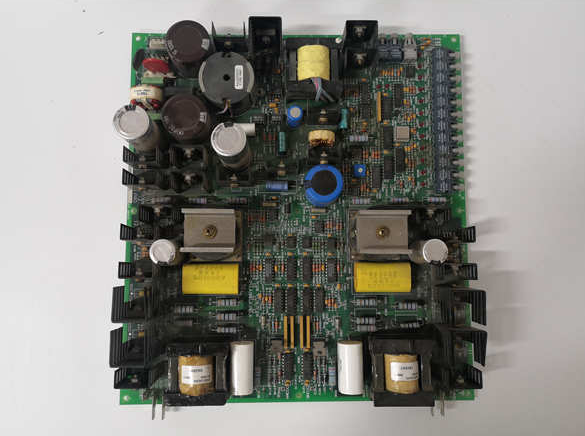

DS200FGPAG1AHD GE  电源开关

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

关于DS200FGPAG1AHD的常见问题

什么是DS200FGPAG1AHD?

DS200FGPAG1AHD是一款门脉冲放大卡，为可控硅桥的一个相位提供门电源，监控可控硅状态，并将交流电源转换为直流电源。

在哪里可以找到DS200FGPAG1AHD的手册?

DS200FGPAG1AHD的说明书为GEI-100223，可根据要求从AX Control获得。

DS200FGPAG1AHD板主要有三个功能。它们是什么，它们做什么?

三个主要功能是开关电源、栅极驱动和可控硅状态监控。电源开关功能的目的是将接收到的交流电压转换为门控和状态功能所需的直流电压。可控硅状态监测的目的是从附加的fhva积累单元电压信息，并通过光串行数据链路将信息中继到LCI控制器。栅极驱动器用于为可控硅桥的一相提供任何栅极电源。有关这些功能的更多信息可以在GEI-100223门脉冲放大器用户指南的首页找到。

DS200FGPAG1AHD板上在门A、门B和单元状态监测测试点之间有30个测试点。门A中测试点的描述是什么?

A门共有9个测试点，其中很多测试点都有各自不同的命名方式描述，有些如下:TP101，命名方式1PUSH1，描述逻辑1=命令启动推循环;TP105，术语VLINKA，描述初级电压;和TP110，术语0RELA，描述逻辑0 =释放闸驻留。

门脉冲放大板的可接受输入功率是多少?

FGPA将接受120 Vrms Ù 20%， 50/60 Hz，最大约350 VA的电源输入。FGPA模型上有四个不同的点可以接受如下电压，P15在未监测时通常接受13.5-14.5 VDC的电源，P5接受4.7-5.1 VDC的电压，P90接受大于或等于81 VDC, P40接受大于或等于25 VDC。

什么源为FGPA板上的推挽电路提供门极电流?

有两种不同的来源，一种是大门基座，另一种是大门后廊。

DS200FGPAG1AHD GE  电源开关

Frequently asked questions about DS200FGPAG1AHD

What is DS200FGPAG1AHD?

The DS200FGPAG1AHD is a gate pulse amplifier card that provides gate power to one phase of the thyristor bridge, monitors the thyristor status, and converts AC power to DC power.

Where can I find the DS200FGPAG1AHD manual?

The specification for the DS200FGPAG1AHD is GEI-100223 and is available on request from AX Control.

The DS200FGPAG1AHD board has three main functions. What are they? What do they do?

The three main functions are switching power supply, gate drive and thyristor status monitoring. The purpose of the power switch function is to convert the received AC voltage to the DC voltage required for gated and status functions. The purpose of thyristor condition monitoring is to accumulate cell voltage information from the additional fhva and relay the information to the LCI controller via an optical serial data link. The gate driver is used to provide any gate power to a phase of the thyristor bridge. More information about these features can be found on the home page of the GEI-100223 Gate Pulse Amplifier User Guide.

There are 30 test points on the DS200FGPAG1AHD board between Gate A, Gate B and the unit condition monitoring test points. What is the description of the test point in gate A?

A gate has 9 test points, many of which are described by different naming methods, some are as follows :TP101, named 1PUSH1, describes the logic 1= command to start the push loop; TP105, the term VLINKA, describes the primary voltage; And TP110, the term 0RELA, describes logical 0 = release gate resident.

What is the acceptable input power of the gate amplifier panel?

The FGPA will accept 120 Vrms U 20%, 50/60 Hz, and a maximum power input of approximately 350 VA. There are four different points on the FGPA model that can accept the following voltages, P15 typically accepts a supply of 13.5-14.5 VDC when unmonitored, P5 accepts a voltage of 4.7-5.1 VDC, P90 accepts a voltage greater than or equal to 81 VDC and P40 accepts a voltage greater than or equal to 25 VDC.

What source provides gate current to the push-pull circuit on the FGPA board?

There are two different sources, one is the base of the gate and the other is the back porch of the gate.
