DS200ADGIH1AAA GE 辅助接口板
【产品详情】
1）备件
2）保修期：12个月！
3）包装：原包装与纸箱。
4）交货时间：付款后3天内发货
5）所有货物将在发货前进行测试。
产品描述

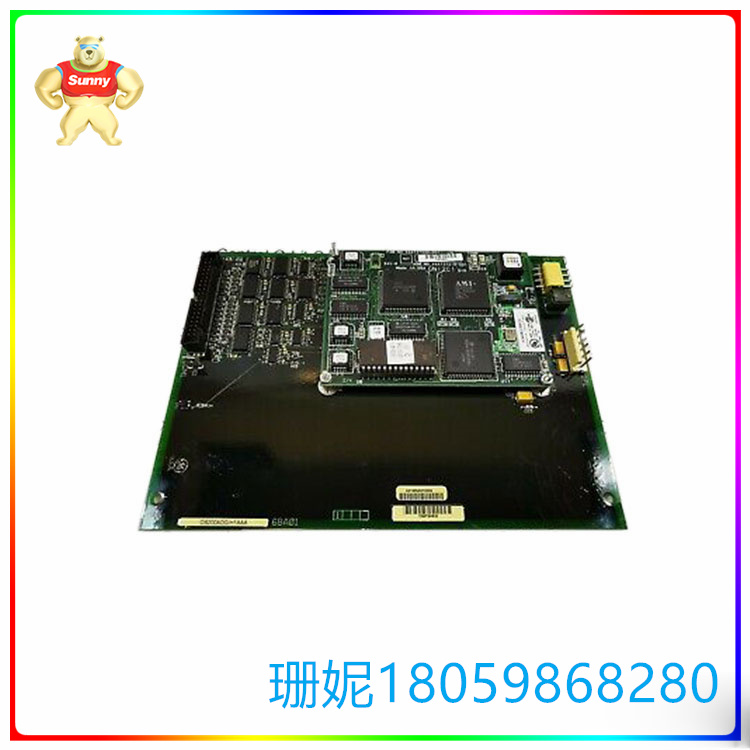

GE DS200ADGIH1AAA具有一个40针连接器，60个跳线和一个6针连接器。GE辅助接口板DS200ADGIH1AAA也有多个测试点。这块板宽8英寸。DS200ADGIH1AAA长6英寸，设计安装在驱动板柜中。它有四个螺钉，它们与板架上的一个位置对齐，以便用螺钉安装。
测试点提供了一种测试电路板上电路的方法。但是，只有合格的服务人员才能测试电路板。服务人员必须配备针对任务进行校准和设计的测试设备。控制必须正确设置，探头必须设计为与测试仪一起使用。将单板放在一个平整的表面上，并在单板下面放置一个保护袋。
操作人员必须始终佩戴防静电腕带，以防止静电的产生。防静电腕带安装正确后，可以将防静电腕带的一端系在手腕上，另一端夹在工作台或书桌的金属腿上。它也可以附着在其他金属结构上。静电被金属接地吸引，然后离开电路板或人体。
另一个减少静电积聚的适当步骤是在拿着冲浪板时避免四处走动。行走时的摩擦使静电积聚起来。在凉爽干燥的天气条件下尤其如此。如果没有防静电腕带，您也可以将防静电包内的防静电板触摸到金属结构上，如椅子或金属桌腿。
DS200ADGIH1AAA GE 辅助接口板
Product description
The GE auxiliary interface board DS200ADGIH1AAA has a 40-pin connector, 60 jumpers, and a 6-pin connector. The GE auxiliary interface board DS200ADGIH1AAA also has multiple test points. The board is 8 inches wide. The DS200ADGIH1AAA is 6 inches long and designed to be mounted in a drive board cabinet. It has four screws, which are aligned with a position on the board frame for mounting with screws.
A test point provides a method for testing a circuit on a board. However, only qualified service personnel can test the circuit board. Service personnel must be equipped with test equipment calibrated and designed for the task. The controls must be set correctly and the probe must be designed for use with the tester. Place the veneer on a flat surface and place a protective bag under the veneer.
You must always wear an ESD wrist strap to prevent static electricity. After the ESD wrist strap is installed correctly, you can tie one end of the ESD wrist strap to your wrist and clip the other end to the metal leg of your workbench or desk. It can also be attached to other metal structures. Static electricity is attracted to the metal ground and then leaves the circuit board or the human body.
Another appropriate step to reduce static buildup is to avoid moving around while holding your board. The friction of walking causes static electricity to build up. This is especially true in cool, dry weather conditions. If you do not have an ESD wrist strap, you can also touch the ESD board in the ESD bag to a metal structure, such as a chair or a metal table leg.
DS200ADGIH1AAA GE 辅助接口板
