【产品详情】
1）备件
2）保修期：12个月！
3）包装：原包装与纸箱。
4）交货时间：付款后3天内发货
5）所有货物将在发货前进行测试。
IS230TVBAH2A是通用电气为Mark VI制造的小型板组件。MKVI是一种燃气和蒸汽轮机管理系统，是通用电气以“Speedtronic”名称发布的最后一款产品之一。Mark VI是一个完整的集成管理系统，其中硬件和软件被设计在一起，并一起工作，以保持涡轮机在其最佳水平。马克六是在TMR(三模冗余)和单纯形式提供。

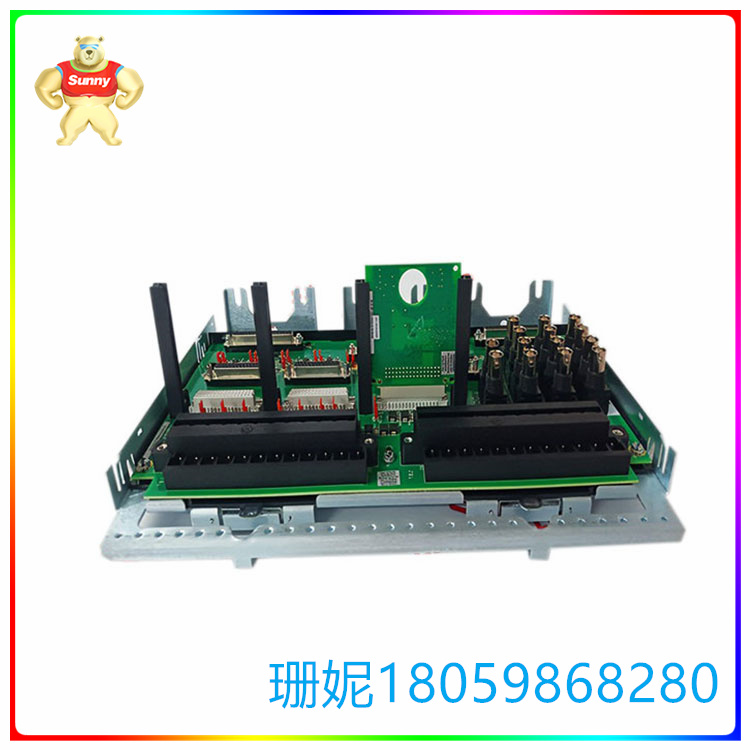

IS230TVBAH2A是一款热电偶输入端子板。该板可以接受热电偶输入的E, J, K，或T类型。这张卡工作与VTCC处理器，并设计了两个屏障型终端条放置在其前缘。这些标着TB1和TB2。每个端子组有24个热电偶输入。
在安装过程中，热电偶直接连接到IS230TVBAH2A的I/O端子排。电路板上的j型连接器(JRA/JRB, JSA/JSB, JTA/JTB)将连接到位于VME机架中的输入/输出处理器。

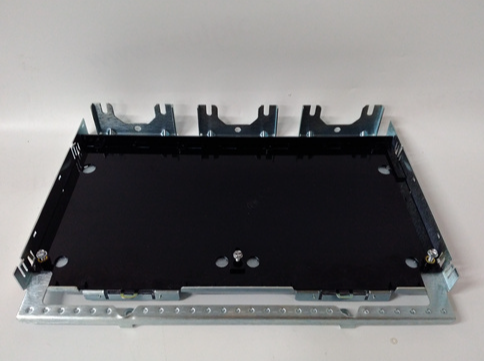

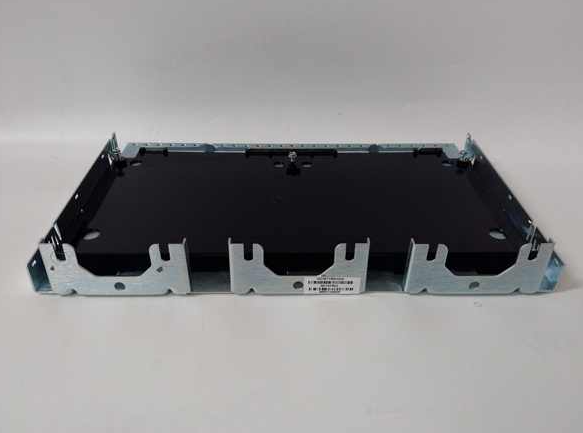

IS230TVBAH2A螺丝安装在三个位置的屏蔽杆上。这个框架环绕PCB的所有四个方面，并从前缘延伸。热电偶输入可以接地或不接地。如果需要维护端子排，可以将端子排从单板表面拔下。
The IS230TVBAH2A is a small board assembly manufactured by General Electric for the Mark VI. MKVI, a gas and steam turbine management system, was one of the last products released by GE under the name Speedtronic. Mark VI is a complete integrated management system in which hardware and software are designed together and work together to keep the turbine at its optimum level. The Mark VI is available in TMR(three-mode redundancy) and pure form.
IS230TVBAH2A is a thermocouple input terminal board. The board can accept thermocouple inputs of E, J, K, or T type. This card works with a VTCC processor and is designed with two barrier type terminal bars placed on its leading edge. These are labeled TB1 and TB2. Each terminal group has 24 thermocouple inputs.
During installation, the thermocouple is directly connected to the I/O terminal block of the IS230TVBAH2A. J-connectors on the board (JRA/JRB, JSA/JSB, JTA/JTB) will be connected to the input/output processor located in the VME rack.
The IS230TVBAH2A screws are installed on the shielding rods in three positions. This frame wraps around all four sides of the PCB and extends from the leading edge. The thermocouple input can be grounded or ungrounded. If you need to maintain the terminal block, remove the terminal block from the board surface.
More information on the operation, installation, diagnosis and specifications of the IS230TVBAH2A can be accessed in the Mark VI Control System Guide. If you are unable to obtain this publication, please contact our team when ordering.
