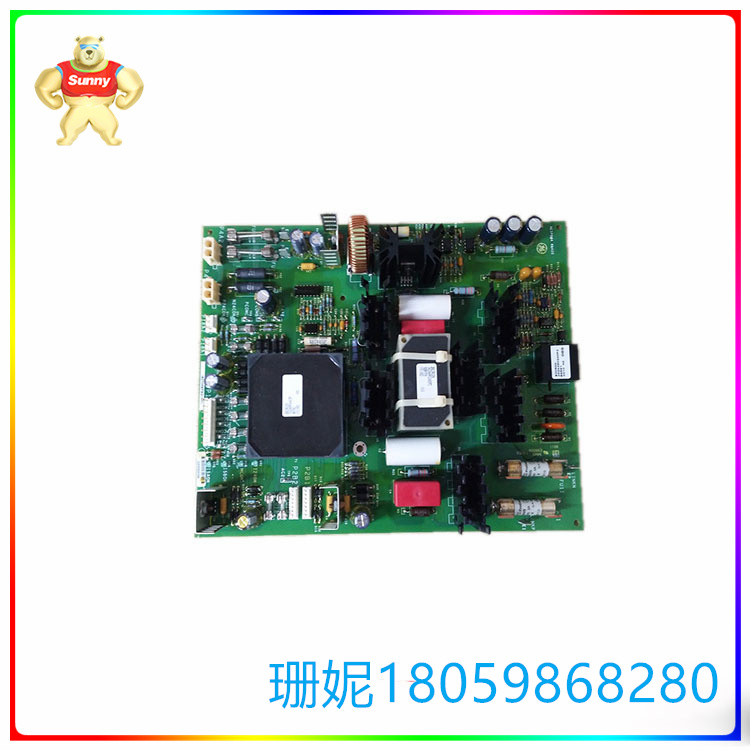

IS230TNPAH2A GE  高速处理器

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS230TNPAH2A技术规格

零件号IS230TNPAH2A

产品类型模拟I/O板

系列mark VI IS200涡轮控制系统

制造商美国通用电气公司，通用电气工业系统

功能缩写tnai

产品描述

IS230TNPAH2A是一个模拟I/O卡，允许din导轨安装。该板具有三个IS220PDIA封装，通过三个37针连接器(垂直)与锁定紧固件(JR1/JS1/JT1)连接到板上。这些分立输入包提供以太网网络(最多两个)和输入终端板之间的电气接口。每个包有一个处理器板，两个独立的10/100以太网端口和一个内部温度传感器。这块板还有一个高速处理器，带有RAM和闪存。任何必要的诊断都通过位于每个模块顶部的板载LED指示灯进行。PDIA包无需手动重新配置即可更换;自动重新配置应该允许从控制器自动下载到任何新的I/O包。

IS230TNPAH2A由两个螺钉安装到板表面的端子条填充。电路板有两个3位插头。它由几行电容器、二极管和电阻器组成。该电路板有25个MOVs(金属氧化物压敏电阻)，用于保护电路免受过电压的影响。

IS230TNPAH2A通过螺钉连接安装到din导轨框架上。这些都是通过工厂制造的钻孔和两个椭圆形切割在板表面。DIN导轨延伸过一个边缘，包括一个屏蔽杆。如果需要更多信息，请参考制造商的出版物，如零件数据表或一系列用户指南。通用电气是所有马克六世技术支持的原始来源。有关该模型如何与Mark VI系列一起使用的信息，最好与通用电气联系，以获取所有可能的文档。

IS230TNPAH2A GE  高速处理器

IS230TNPAH2A technical specifications

Part number IS230TNPAH2A

Product Type Analog I/O board

Series mark VI IS200 turbine control system

Manufacturer General Electric, General Electric Industrial Systems

Function abbreviation tnai

Product description

The IS230TNPAH2A is an analog I/O card that allows din rail mounting. The board has three IS220PDIA packages that are connected to the board via three 37-pin connectors (vertical) with locking fasteners (JR1/JS1/JT1). These discrete input packets provide an electrical interface between an Ethernet network (up to two) and an input terminal board. Each package has a processor board, two separate 10/100 Ethernet ports, and an internal temperature sensor. The board also has a high-speed processor with RAM and flash memory. Any necessary diagnosis is made via an on-board LED indicator located at the top of each module. PDIA packages can be replaced without manual reconfiguration; Automatic reconfiguration should allow any new I/O packages to be automatically downloaded from the controller.

The IS230TNPAH2A is filled with terminal strips mounted to the surface of the plate with two screws. The board has two 3-position plugs. It consists of several rows of capacitors, diodes and resistors. The board has 25 MOVs(metal oxide varistors), which are used to protect the circuit from overvoltage.

The IS230TNPAH2A is attached to the din rail frame by screw connection. These are made by factory drilling holes and two oval cuts on the surface of the board. The DIN rail extends over an edge and includes a shield rod. For more information, refer to the manufacturer's publications, such as part data sheets or a series of user guides. Ge is the original source of all Mark VI technical support. For information on how this model can be used with the Mark VI family, it is best to contact GE for all possible documentation.

IS230TNPAH2A GE  高速处理器
