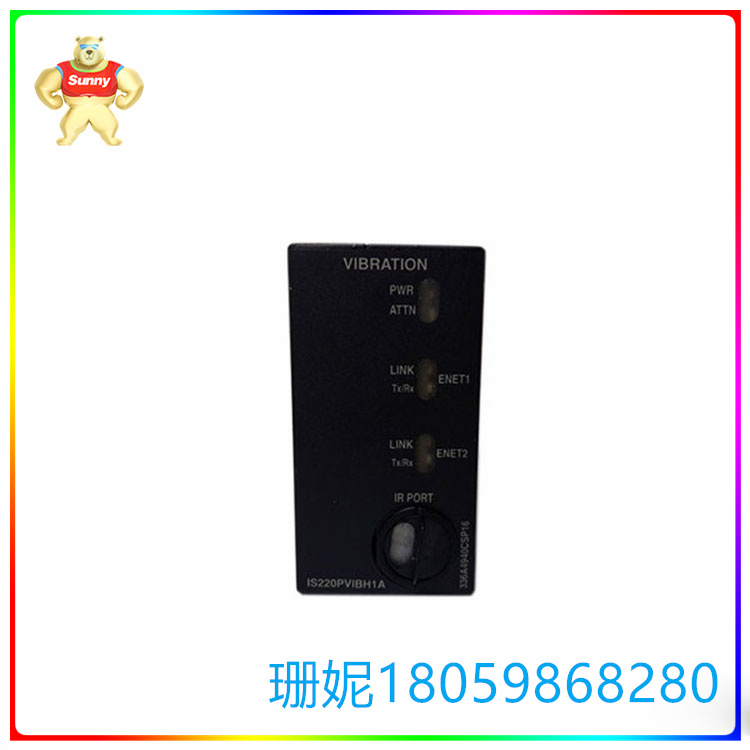

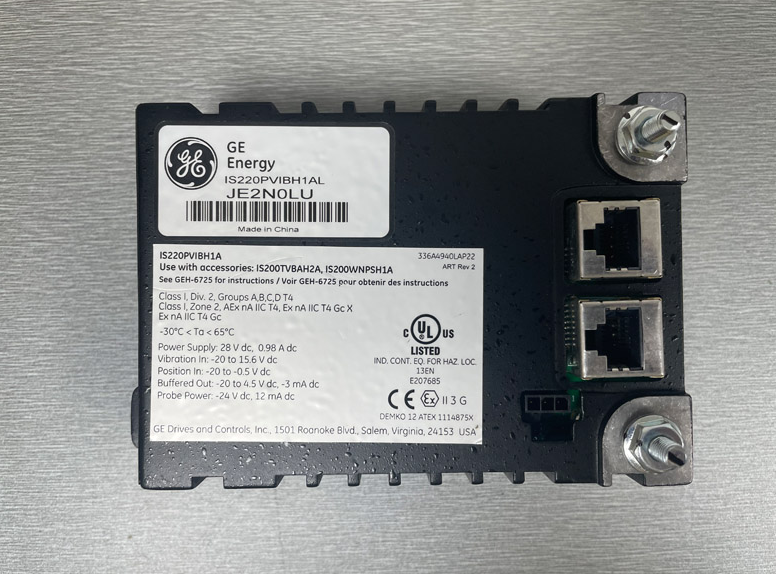

IS220PVIBH1A 336A4940CSP16  GE  振动监视器I/O包

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS220PVIBH1A技术规范

环境温度范围-30℃~ 65℃

板兼容振动终端板(TVBA)

13频道用于接近和振动

共模电压最小5 VDC

尺寸3.25“高x 1.65”宽x 4.78“深

帧率3.125、6.25、12.5、25、50和100 Hz

功能缩写/缩写pvib

LED指示灯

探头电源-24伏直流电，每个传感器负载12毫安

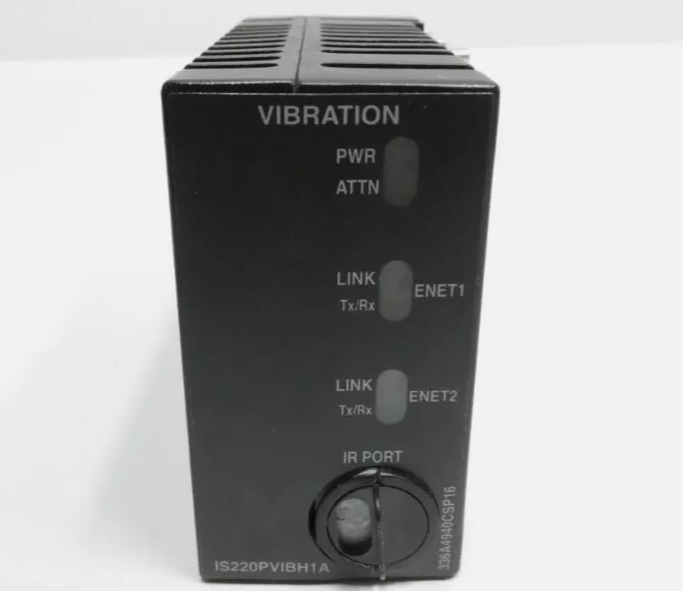

状态指示灯attn, Pwr, Link, TxRx

修订版修订版A、B、C、D

型号is220pvibh1a

关于IS220PVIBH1A的常见问题

IS220PVIBH1A的功能是什么?

IS220PVIBH1A是一款Mark VIe振动监视器I/O包，连接到Mark VIe系统的终端板上。

产品描述

IS220PVIBH1A模型被设计为振动监测包。PVIB包的主要功能是提供多达两个I/O以太网网络和振动终端板之间的电气接口功能。该包的主要组件是与大多数MK VIe分布式I/O包以及子板和采集板一起使用的主处理器板。

传感器类型用于不同的通道，例如，加速度计仅用于通道1、2和3。请注意，通道9、10、11和12只能用于支持近端，而第13通道可以输入近端类型或键相量信号类型。请注意，IS220PVIBH1A包上的13个差分输入有一个DAC(数字模拟转换器)，用于偏置调整，可以使信号的DC内容无效，从而更好地集中a /D(模数)输入范围。

PVIB I/O包有一个处理器应用程序代码，用于潜在地包含允许包从单或双以太网输入操作所需的所有逻辑代码。当从两个以太网输入操作时，正确操作IS220PVIBH1A包所需的网络路径始终处于活动状态。如果由于任何原因其中一个网络发生故障，它不会对I/O包的操作造成任何类型的干扰，但故障将通过操作网络连接指示。

IS220PVIBH1A 336A4940CSP16  GE  振动监视器I/O包

IS220PVIBH1A technical specification

The ambient temperature ranges from -30℃ to 65℃

Board Compatible Vibrating Terminal Board (TVBA)

Channel 13 is used for proximity and vibration

Minimum common mode voltage 5 VDC

Dimensions 3.25 "high x 1.65" wide x 4.78 "deep

Frame rates 3.125, 6.25, 12.5, 25, 50, and 100 Hz

Function abbreviation/abbreviation pvib

LED indicator

Probe power supply -24 volts DC, 12 mA load per sensor

Status indicator attn, Pwr, Link, TxRx

Revisions Revisions A, B, C, D

Model is220pvibh1a

FAQ about IS220PVIBH1A

What is the function of IS220PVIBH1A?

The IS220PVIBH1A is a Mark VIe vibration monitor I/O package that connects to the terminal board of the Mark VIe system.

Product description

The IS220PVIBH1A model is designed as a vibration monitoring package. The main function of the PVIB package is to provide electrical interface function between up to two I/O Ethernet networks and vibrating terminal boards. The main component of the package is the main processor board used with most MK VIe distributed I/O packages, as well as the daughter board and acquisition board.

Sensor types are used for different channels, for example, accelerometers are only used for channels 1, 2, and 3. Note that channels 9, 10, 11 and 12 can only be used to support the near end, while channel 13 can input either the near end type or the key phasor signal type. Note that the 13 differential inputs on the IS220PVIBH1A packet have a DAC(digital-to-analog converter) for bias adjustment that can invalidate the DC content of the signal to better focus the a /D(analog-to-digital) input range.

The PVIB I/O packet has a processor application code that is used to potentially contain all the logic code needed to allow the packet to operate from single or dual Ethernet inputs. When operating from both Ethernet inputs, the network path required for proper operation of the IS220PVIBH1A packet is always active. If for any reason one of the networks fails, it will not cause any type of interference with the operation of the I/O packet, but the failure will be indicated through the operational network connection.

IS220PVIBH1A 336A4940CSP16  GE  振动监视器I/O包
