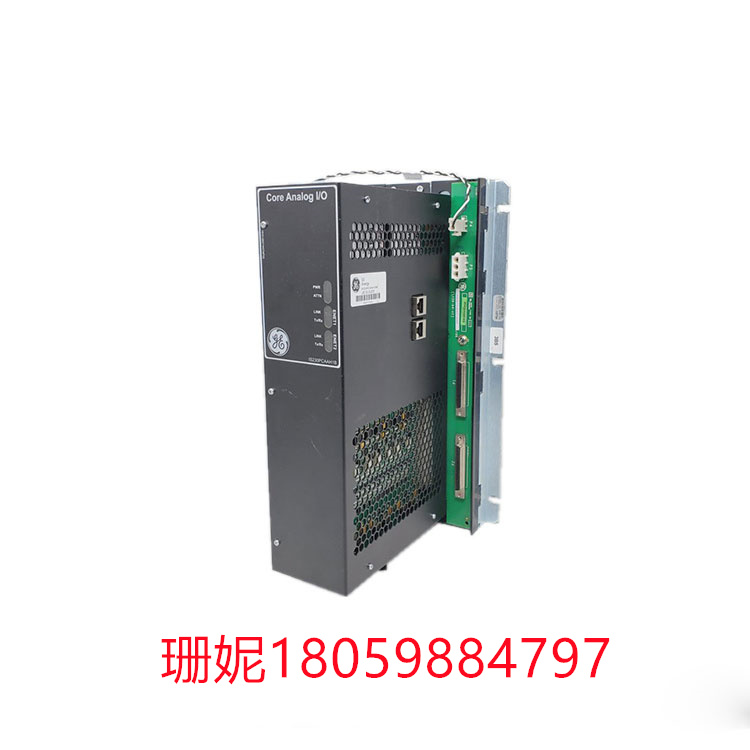

IS220PPRFH1A GE 涡轮控制系统
【产品详情】
1)备件
2)保修期:12个月!
3)包装:原包装与纸箱。
4)交货时间:付款后3天内发货
5)所有货物将在发货前进行测试。
IS220PPRFH1A技术规范
部件编号is220pprfh1a
系列mark VI涡轮控制系统
制造商通用电气
工作温度-20 ~ +55℃
产品类型模拟I/O包
产品描述profibus主网关模块
功能缩写/缩写pprf
输入电流最大0.18 Adc
输入电压最小27.4 -最大28.6 Vdc
产品描述
型号IS220PPRFH1A是通用电气公司生产的Mark VI系列中描述的PROFIBUS主网关模块。虽然该模型设计用于Mark VI系列,但它也可以用于Mark VIe和Mark VIeS系列。PPRF模型被认为是一个模拟输出包,通常与IS200SPIDG1A附件ID板一起使用。I/O包和终端板一起被额定和批准用于危险和非危险场所。
当使用IS220PPRFH1A型号时,必须遵循电气规范,以消除潜在的财产损失或某些情况下的人身伤害。有两种规格,分别标有电压和电流。电源电压范围为27.4 ~ 28.6 VDC,标称电源电压为28.0 VDC。PPRF包使用的电源电流最大为0.18 ADC。还有一个特定的温度范围,PPRF模型必须在;此温度范围为-4至131°F或-20至55°C。
如上所述,IS220PPRFH1A型号被评为在危险和非危险场所使用。对于每个位置,都有一个列表认证。无危险认证为UL E207685,与ii类A、B、C、D组和ii类2区IIC组认证相同。ATEX Zone 2, Group IIC的认证是UL DEMKO 12 ATEX 1114875X。更多认证请参考GEH-6725 Mark VIe和Mark VIe控制设备HazLoc手册。
关于IS220PPRFH1A的常见问题
IS220PPRFH1A型号是什么类型的I/O包?
IS220PPRFH1A包被通用电气标记为模拟I/O包。该型号特别标记为PROFIBUS主网关模块。
IS220PPRFH1A型号是否与Mark VI, VIe或VIeS系列的任何终端板接口?
有一个特定的终端板,IS220PPRFH1A模型将接口;这个型号被标记为IS200SPIDG1A附件ID板。
描述中只有IS220PPRFH1A型号的认证吗?
不,还有更多的位置/认证可以使用IS220PPRFH1A模型。IS220PPRFH1A型号的另一个标准是ANSI/ISA-12.12.01-2015或CAN/CSA-C.22.2 No. 213-15。这些标准被归类为第一类,第二部分,A、B、C和D组。
我在哪里可以找到关于PPRF模型的信息?
IS220PPRFH1A GE 涡轮控制系统
关于PPRF模型的信息可以在任何可用的Mark VI、Mark VIe或Mark VIeS文档中找到。信息的主要来源之一是GEH-6725 Mark VIe和Mark VIe控制设备HazLoc指南,该指南仅提供有关标准和认证以及型号的电气额定值的信息。
IS220PPRFH1A technical specification
Component number is220pprfh1a
Series mark VI turbine control system
Manufacturer General Electric
Operating temperature -20 ~ +55℃
Product Type Analog I/O packages
Product Description profibus main gateway module
Function abbreviation/abbreviation pprf
The maximum input current is 0.18 Adc
Input voltage minimum 27.4 - maximum 28.6 Vdc
Product description
The model IS220PPRFH1A is a PROFIBUS main gateway module described in the Mark VI series produced by General Electric. While the model is designed to work with the Mark VI series, it can also work with the Mark VIe and Mark VIeS series. The PPRF model is considered an analog output package and is commonly used with the IS200SPIDG1A Accessory ID board. I/O packets and end boards together are rated and approved for use in hazardous and non-hazardous locations.
When using IS220PPRFH1A models, electrical codes must be followed to eliminate potential property damage or, in some cases, personal injury. There are two sizes, marked with voltage and current respectively. The power supply voltage ranges from 27.4 to 28.6 VDC, and the nominal power supply voltage is 28.0 VDC. PPRF packages use a power supply current of up to 0.18 ADC. There is also a specific temperature range in which the PPRF model must operate; This temperature range is -4 to 131°F or -20 to 55°C.
As mentioned above, the IS220PPRFH1A model is rated for use in hazardous and non-hazardous locations. For each location, there is a list authentication. The hazard free certification is UL E207685, the same as Class ii Group A, B, C, D and Class ii Area 2 IIC Group certification. The certification of ATEX Zone 2, Group IIC is UL DEMKO 12 ATEX 1114875X. For more certifications, refer to the GEH-6725 Mark VIe and Mark VIe Control Device HazLoc Manual.
FAQ about IS220PPRFH1A
What type of I/O package is IS220PPRFH1A?
The IS220PPRFH1A package is labeled by General Electric as an analog I/O package. This model is specifically labeled PROFIBUS Main Gateway Module.
Does the IS220PPRFH1A model interface with any terminal board of the Mark VI, VIe or VIeS series?
There is a specific terminal board, IS220PPRFH1A model will interface; The model number is labeled IS200SPIDG1A Accessory ID board.
Is only IS220PPRFH1A model certified in the description?
No, there are many more locations/certifications available using the IS220PPRFH1A model. Another standard for IS220PPRFH1A models is ANSI/ISA-12.12.01-2015 or CAN/CSA-C.22.2 No. 213-15. These criteria are classified as Category I, Part II, Groups A, B, C and D.
Where can I find information about the PPRF model?
Information about the PPRF model can be found in any available Mark VI, Mark VIe, or Mark VIeS documentation. One of the main sources of information is the GEH-6725 Mark VIe and Mark VIe Control Equipment HazLoc Guide, which only provides information on standards and certifications and the electrical rating of the model.
