IS210WSVOH1AE GE  可以构建为单工或三重模块化冗余系统

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS210WSVOH1AE是GE为Mark VI系统制造的电路板组件。作为Speedtronic生产线的一部分，Mark VI是一个燃气/蒸汽轮机管理程序，可以构建为单工或三重模块化冗余系统。与大多数Speedtronic系统一样，MKVI旨在通过高效可靠的管理来提高其相关涡轮机的可靠性。

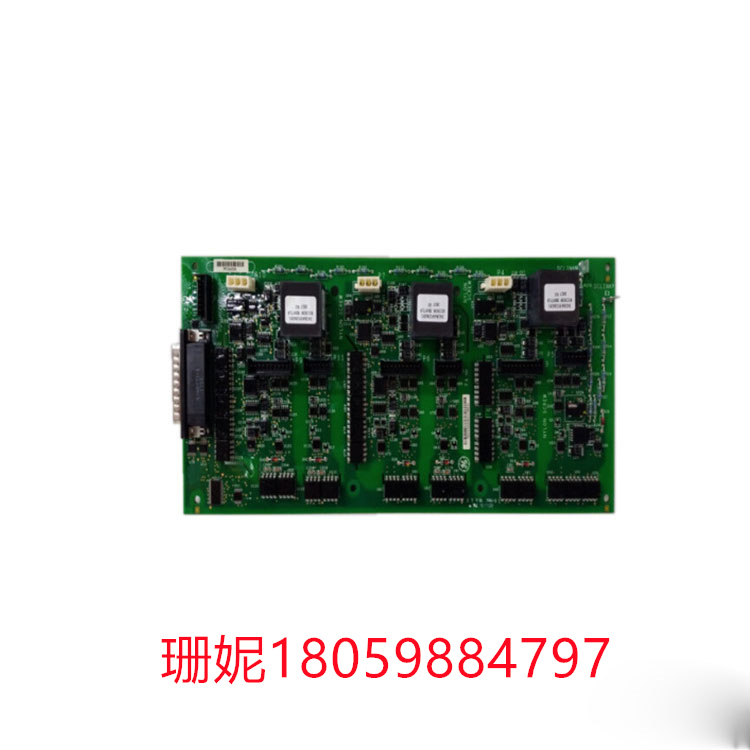

IS210WSVOH1AE作为桥接接口板。它有四个变压器放在电路板上，其中三个在靠近电路板中心的一条线上，第四个放在电路板的顶部。这些标记是342A 4902AG P1 Bicron。变压器额定电压为12KV至15KV，开关频率为10KHz至500KHz。这些变压器的Hipot要求为5 KVAC。IS210WSVOH1AE配备了180多个集成电路。这包括五个振荡芯片。电路板有二极管、电容器和电阻器。电阻器包括金属膜电阻器，它们以几条线放置在电路板上。电路板也有许多晶体管。

IS210WSVOH1AE在其边缘的九个位置进行工厂钻孔。这块板的主体上有几个槽。这些通常由晶体管等元件覆盖。该板有许多连接器，包括放置在板左边缘的单个直角连接器，标记为P1, 8个垂直针公连接器，2个头连接器和4个3位插头。有关这些连接器使用的信息可以在手册或用户指南中找到。电路板标记为SCC 43985, 94V-0和M3。

IS210WSVOH1AE在单板的正面和背面都有组件。为了便于识别，组件都标有标志。

IS210WSVOH1AE GE  可以构建为单工或三重模块化冗余系统

The IS210WSVOH1AE is a board component manufactured by GE for the Mark VI system. Part of the Speedtronic line, Mark VI is a gas/steam turbine management program that can be built as a simplex or triple modular redundant system. Like most Speedtronic systems, MKVI is designed to improve the reliability of its associated turbines through efficient and reliable management.

IS210WSVOH1AE serves as the bridge interface board. It has four transformers placed on the board, three of which are in a line near the center of the board and the fourth is placed on the top of the board. These labels are 342A 4902AG P1 Bicron. The rated voltage of the transformer is 12KV to 15KV, and the switching frequency is 10KHz to 500KHz. The Hipot requirement for these transformers is 5 KVAC. The IS210WSVOH1AE is equipped with more than 180 integrated circuits. This includes five oscillating chips. The circuit board has diodes, capacitors and resistors. Resistors include metal film resistors, which are placed on the circuit board in several wires. The circuit board also has many transistors.

The IS210WSVOH1AE drilled factory holes in nine locations along its edge. There are several slots in the body of the board. These are usually covered by components such as transistors. The board has a number of connectors, including a single right Angle connector placed on the left edge of the board, labeled P1, eight vertical pin male connectors, two head connectors, and four 3-position plugs. Information on the use of these connectors can be found in the manual or user guide. The boards are labeled SCC 43985, 94V-0 and M3.

The IS210WSVOH1AE has components on both the front and back of the board. Components are marked for easy identification.

IS210WSVOH1AE GE  可以构建为单工或三重模块化冗余系统
