IS210AEBIH3BEC  GE  三个变压器组成

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS210AEBIH3BEC是通用电气创建的电路板组件，作为Mark VI系统的一部分。MKVI是通用电气公司发布的最后一款用于管理重型蒸汽/燃气轮机的Speedtronic系统之一。这发生在20世纪90年代，经过几十年的研究和发展进入Speedtronic线。MKVI是一种TMR(三模冗余)体系结构系统，也可以设计为单纯形系统。它包括一个基于windows的PC HMI(人机界面)，装载了用于涡轮机管理的软件，如控制系统工具箱和GE的simplicity图形。

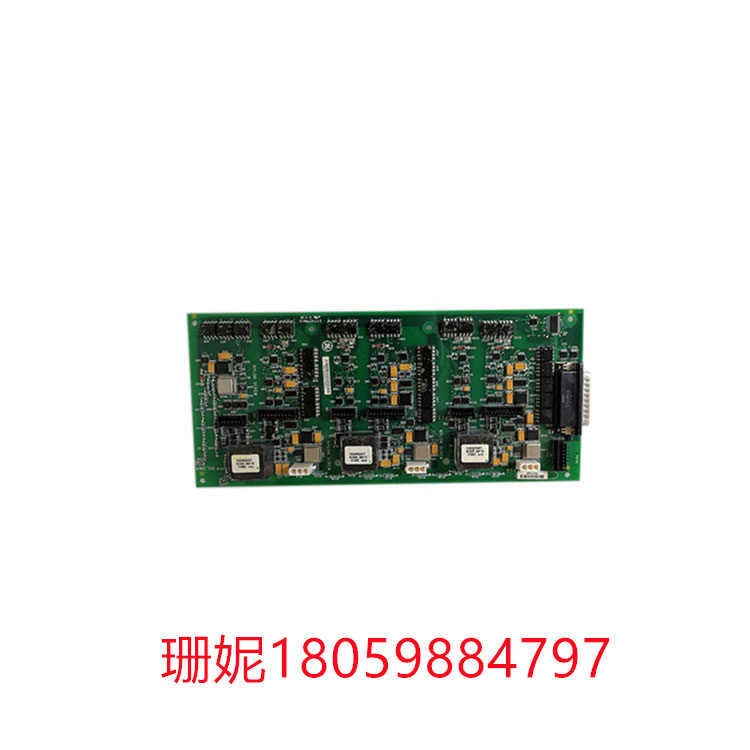

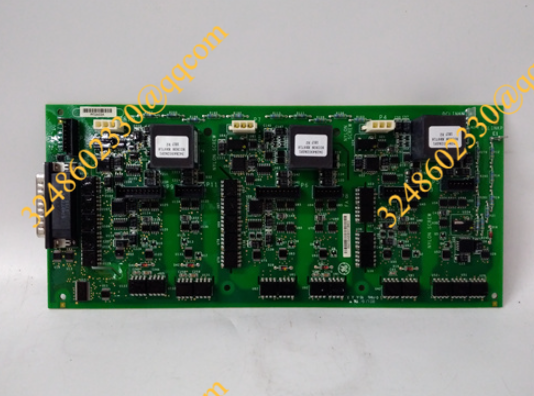

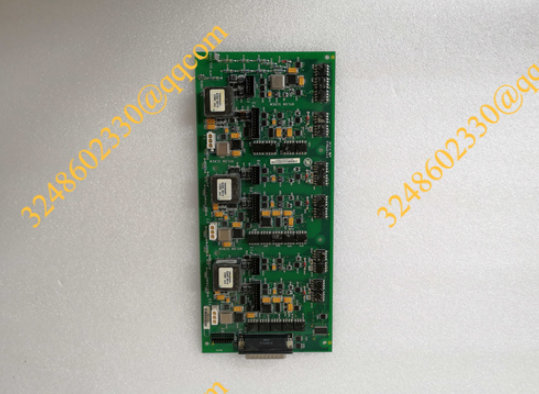

IS210AEBIH3BEC是在每个角上钻孔的矩形板。还有两个额外的工厂钻孔沿每个板的长边缘。该板有一个小的矩形臂从前端延伸。它的表面钻有两个导电端子。主板的左短边由直角电缆连接器填充。这被标记为“P1”。位于其侧面的“P2”连接器是一个多针垂直公连接器。该板上有9个额外的连接器，包括从5个引脚到10个引脚的男性垂直引脚连接器以及3个位置的女性插头。该板还具有位于右上角的插入式连接器。

IS210AEBIH3BEC由三个变压器组成。它有一百多个集成电路。这包括几个振荡芯片。安装程序可以在用户指南和手册等出版物中找到。请遵循制造商的安全程序建议。

IS210AEBIH3BEC  GE  三个变压器组成

The IS210AEBIH3BEC is a circuit board assembly created by General Electric as part of the Mark VI system. The MKVI was one of the last Speedtronic systems released by General Electric for the management of heavy-duty steam/gas turbines. This happened in the 1990s, after decades of research and development into the Speedtronic line. MKVI is a TMR(three-mode redundant) architecture system that can also be designed as a simplex system. It includes a Windows-based PC HMI(Human Machine Interface) loaded with software for turbine management such as the Control System Toolbox and GE's simplicity graphics.

IS210AEBIH3BEC is a rectangular plate with holes drilled at each corner. There are two additional factory drilling holes along the long edge of each board. The board has a small rectangular arm extending from the front end. Its surface drill has two conductive terminals. The left short side of the motherboard is filled with right-angle cable connectors. This is labeled "P1". The "P2" connector located on its side is a multi-pin vertical male connector. There are 9 additional connectors on the board, including male vertical pin connectors from 5 pins to 10 pins, and female plugs in 3 positions. The board also has a plug-in connector located in the upper right corner.

The IS210AEBIH3BEC consists of three transformers. It has more than a hundred integrated circuits. This includes several oscillating chips. Installers can be found in publications such as user guides and manuals. Follow the manufacturer's safety procedure recommendations.

IS210AEBIH3BEC  GE  三个变压器组成

【下单请联系我们】

欢迎访问厦门雄霸

销售经理：何小姐

电子邮件ID：2082431634 qq.com

微信：18059868280

手机：+86 18059868280

在线客服qq：2082431634

地址：厦门市思明区吕岭路1733号创想中心2009室

（1）24小时电子邮件回复（12小时）;

（2）对于运往亚洲以外的国家/地区，请联系卖方。

【常见问题】

无论您对库存，价格，故障排除还是其他方面有任何疑问，我们都能满足您的需求。请致电我们，填写我们的表格，或向我们发送电子邮件-任何适合您的方式。期待您的回音！

问：您的交货时间如何？

答：我们有很多库存商品，3-5天您将收到它。

问：你们提供保修吗？

答：是的，我们为所有剩余的部件提供1年保修。

问：您可以接受哪些付款方式？

答：通常我们在中国大陆接受T/T和人民币转账
