IS200VCRCH1B  GE  分立输入/输出板

【产品详情】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

IS200VCRCH1B是GE Mark VI板组件。MKVI是燃气和蒸汽轮机管理系统的Speedtronic家族的一部分，该家族自20世纪60年代发布Mark I以来一直由通用电气开发和改进。MKVI是Speedtronic生产线上的第五个管理系统，具有对所有保护参数和关键控制的三重冗余控制，以及用于保护和监测涡轮系统的先进控制机制。

IS200VCRCH1B作为分立输入/输出板。这是一个单槽板，具有与VCCC板相同的功能，但不包括子板，因此占用较少的机架空间。但是，由于该板的继电器输出使用VME机架上的J3/J4端口，因此必须在前面板上放置电缆。如果不希望这样，请使用VCCC板而不是VCRC PCB。

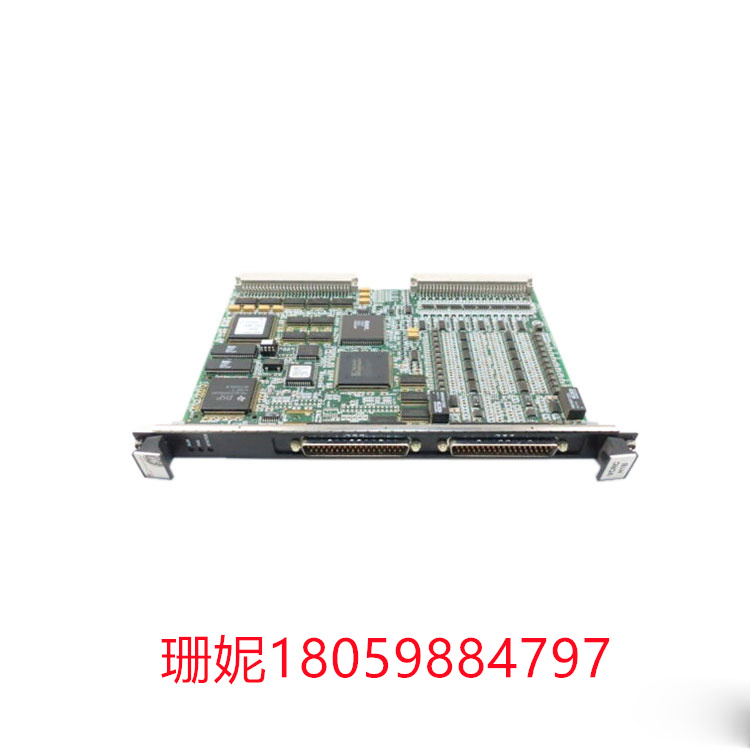

IS200VCRCH1B有一个带有两个电缆连接器的前面板(J33和J44)。面板还容纳三个LED组件，它们被放置在板的顶部角落附近。这些led有绿色、红色和橙色，分别标有运行、故障和状态。

IS200VCRCH1B的表面填充了两个背板连接器。几个导电连接器位于电路板表面(P4到P6)。该板还包括电阻、二极管、电容器和TP测试点。这块电路板有30多个晶体管和两个电源。位于电路板表面的集成电路包括fpga和各种SRAM和RAM芯片。有关IS200VCRCH1B的更多信息可以使用数据表，手册或Mark VI控制系统指南找到。

IS200VCRCH1B  GE  分立输入/输出板

The IS200VCRCH1B is a GE Mark VI board component. The MKVI is part of the Speedtronic family of gas and steam turbine management systems, which has been developed and improved by GE since the release of the Mark I in the 1960s. The MKVI is the fifth management system on the Speedtronic production line, featuring triple redundant control over all protection parameters and critical controls, as well as advanced control mechanisms for protecting and monitoring turbine systems.

The IS200VCRCH1B serves as a discrete input/output board. This is a single slot board that has the same functionality as the VCCC board, but does not include a sub-board, so it takes up less rack space. However, since the relay output of this board uses J3/J4 ports on the VME rack, cables must be placed on the front panel. If you do not want this, use a VCCC board instead of a VCRC PCB.

The IS200VCRCH1B has a front panel with two cable connectors (J33 and J44). The panel also houses three LED components, which are placed near the top corner of the board. These leds come in green, red and orange and are marked with operating, fault and status respectively.

The surface of the IS200VCRCH1B is filled with two backplane connectors. Several conductive connectors are located on the board surface (P4 to P6). The board also includes a resistor, diode, capacitor, and TP test point. The board has more than 30 transistors and two power supplies. Integrated circuits located on the surface of the board include FPgas and various SRAM and RAM chips. More information about the IS200VCRCH1B can be found using data sheets, manuals or the Mark VI Control System Guide.

IS200VCRCH1B  GE  分立输入/输出板
