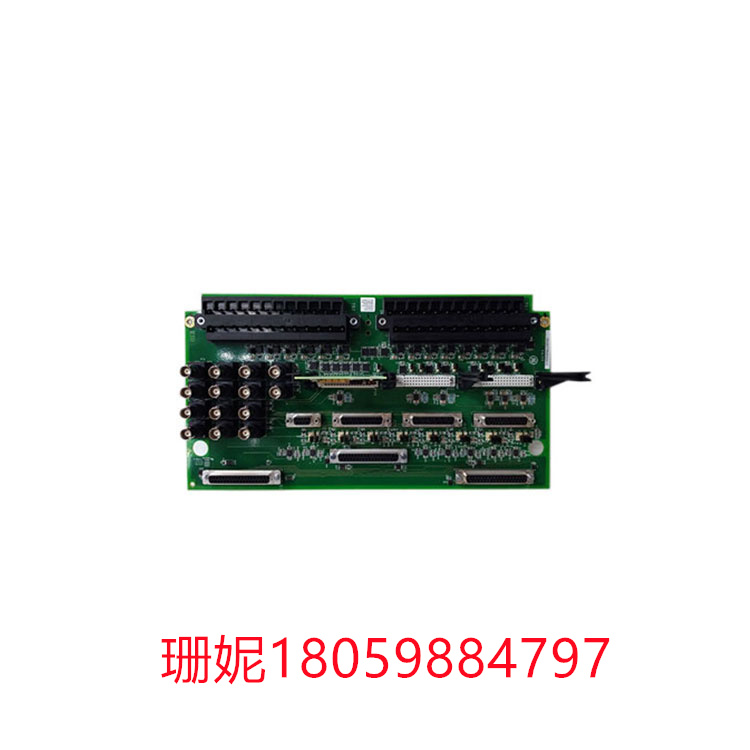

IS200TVBAH2ACC 振动输入监测板
【产品详情】
1)备件
2)保修期:12个月!
3)包装:原包装与纸箱。
4)交货时间:付款后3天内发货
5)所有货物将在发货前进行测试。
IS200TVBAH2ACC技术规格
零件号为200tvba2aaa
系列mark VI IS200
制造商美国通用电气公司,通用电气工业系统
功能缩写/缩写tvba
板型终端输入振动监测板
接线端子数量2
储存温度-40至+158°F
Sub-D引脚连接器数量
产品描述
IS200TVBAH2ACC板作为振动输入监测板销售。该型号使用的是直流电的电压而不是交流电的电压,没有负直流电源,该型号的唯一电源是正28伏直流电。该模型可用于TMR(三模冗余)或单纯形系统。当该模块与基于tmr的架构(如Mark VI系列)一起使用时,它由电源、ionet和三个独立的控制模块组成。
IS200TVBAH2ACC板的物理组件包括7个sub-D引脚连接器,2个端子带,3个母插头连接器和14个单针连接器。sub-D连接器有不同的引脚数量;一个连接器有9个引脚,而剩下的6个连接器中有一半是25个引脚连接器,剩下的3个是37个引脚连接器。三个37针连接器位于靠近电路板外缘的位置,标记为JR1, JS1和JT1;其余四个连接器分别标记为JA1、JB1、JC1和JD1。
如上所述,IS200TVBAH2ACC板有两个端子带/排;这两个端子位于电路板的边缘。这两个终端有能力接受14个传感器输入。每个端子组有24个端子,可以使用#12 AWG线。两个端子排分别标记为TB2和TB1。
TVBA模型的通信方法是IONet或单位数据高速公路。Unit数据高速公路是一个基于以太网的局域网,可以与通用电气生产的多个系统进行通信,如EX2000发电机励磁控制、hmi、静态启动器等。
关于IS200TVBAH2ACC的常见问题
是否有与IS200TVBAH2ACC型号一起工作的板或包?
是的,TVBA模型充当PVIB或YVIB I/O包的信号接口板。IS200TVBAH2ACC模型还可以直接连接速度(地震)测速仪、proximitor和加速度计型探头。该模型还将为模型上的每个输入信号提供电磁接口保护和信号抑制。信号也将被连接到上拉偏置,以允许开路检测。
在TVBA模型上接收到输入信号后发送到哪里?
在TVBA模型上接收到输入信号后,它们将通过37针连接器发送到相关的I/O包。TVBA将根据模型所使用的系统应用程序发出不同的信号。当TVBA模型在三模冗余系统中使用时,所有的信号将被扇形输出到三个I/O包。IS200TVBAH2ACC型号还包含缓冲输出,通过超出正常三十七针连接的附加连接器连接。
IS200TVBAH2ACC 振动输入监测板
IS200TVBAH2ACC technical specifications
The part number is 200tvba2aaa
Series mark VI IS200
Manufacturer General Electric, General Electric Industrial Systems
Function abbreviation/abbreviation tvba
Plate type terminal input vibration monitoring plate
Number of wiring terminals 2
Storage temperature -40 to +158°F
Sub-D Number of pin connectors
Product description
IS200TVBAH2ACC board is marketed as a vibration input monitoring board. This model uses DC voltage instead of AC voltage, there is no negative DC power supply, and the only power supply for this model is positive 28 volts DC. The model can be used in TMR(three-mode redundancy) or simplex systems. When the module is used with a TMR-based architecture such as the Mark VI series, it consists of a power supply, ionet and three separate control modules.
The physical components of the IS200TVBAH2ACC board include 7 sub-D pin connectors, 2 terminal bands, 3 female plug connectors, and 14 single pin connectors. sub-D connectors have different number of pins; One connector has 9 pins, while half of the remaining 6 connectors are 25 pin connectors, and the remaining 3 are 37 pin connectors. Three 37-pin connectors are located near the outer edge of the board, labeled JR1, JS1, and JT1; The remaining four connectors are labeled JA1, JB1, JC1, and JD1.
As mentioned above, the IS200TVBAH2ACC board has two terminal bands/bars; The two terminals are located on the edge of the board. These two terminals have the capacity to accept 14 sensor inputs. Each terminal group has 24 terminals and can use #12 AWG wires. The two terminal blocks are labeled TB2 and TB1.
The communication method of TVBA model is IONet or unit data highway. The Unit Data Superhighway is an Ethernet-based local area network that can communicate with multiple systems produced by General Electric, such as EX2000 generator excitation control, hmi, static starters, and more.
FAQ about IS200TVBAH2ACC
Are there boards or packages that work with IS200TVBAH2ACC models?
Yes, the TVBA model acts as a signal interface board for PVIB or YVIB I/O packets. The IS200TVBAH2ACC model can also be directly connected to velocity (seismic) accelerometers, proximitor and accelerometer type probes. The model will also provide electromagnetic interface protection and signal suppression for each input signal on the model. The signal will also be connected to a pull-up bias to allow open circuit detection.
Where is the input signal sent after receiving it on the TVBA model?
After the input signals are received on the TVBA model, they are sent to the relevant I/O packet via the 37-pin connector. TVBA will emit different signals depending on the system application used by the model. When the TVBA model is used in a three-mode redundant system, all the signals are fanned out into three I/O packets. The IS200TVBAH2ACC model also contains a buffered output, connected via additional connectors beyond the normal thirty-seven pin connection.
