IS200SAMBH1ABA GE 是一款声学监测终端板
【产品详情】
1)备件
2)保修期:12个月!
3)包装:原包装与纸箱。
4)交货时间:付款后3天内发货
5)所有货物将在发货前进行测试。
IS200SAMBH1ABABA是通用电气为Mark VI和Mark VIe系统制造的PCB(印刷电路板)组件。这些系统由通用电气公司发布,通过可靠的管理来提高燃气轮机和蒸汽轮机的效率。它们都是TMR(三模块冗余)系统,提供关键控制和保护参数的多个备份。

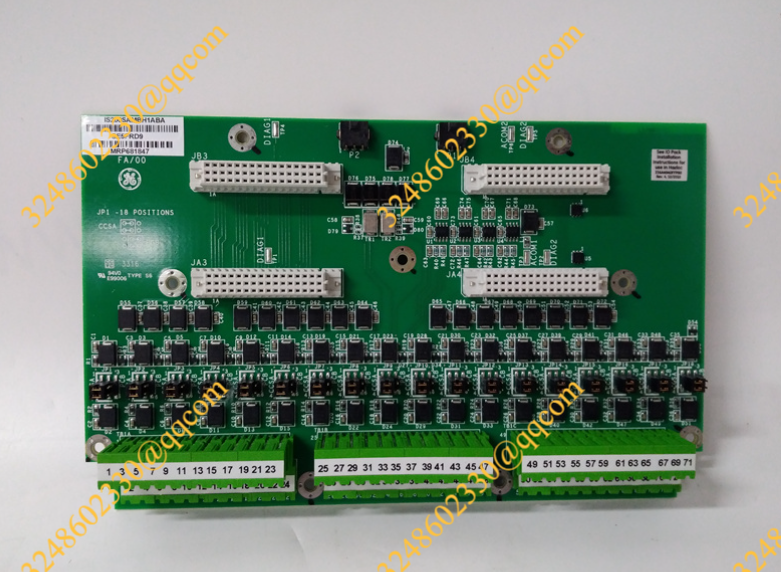

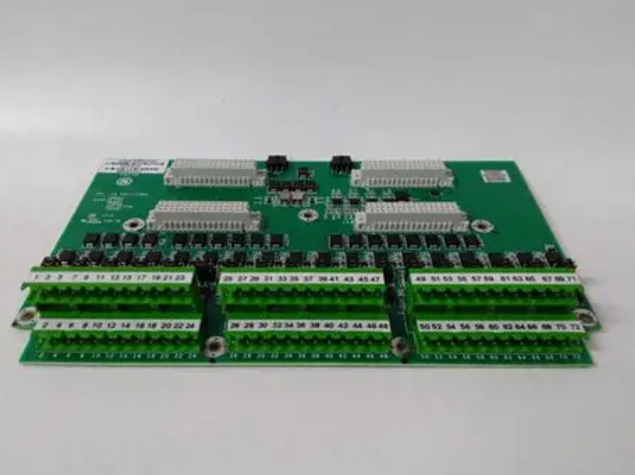

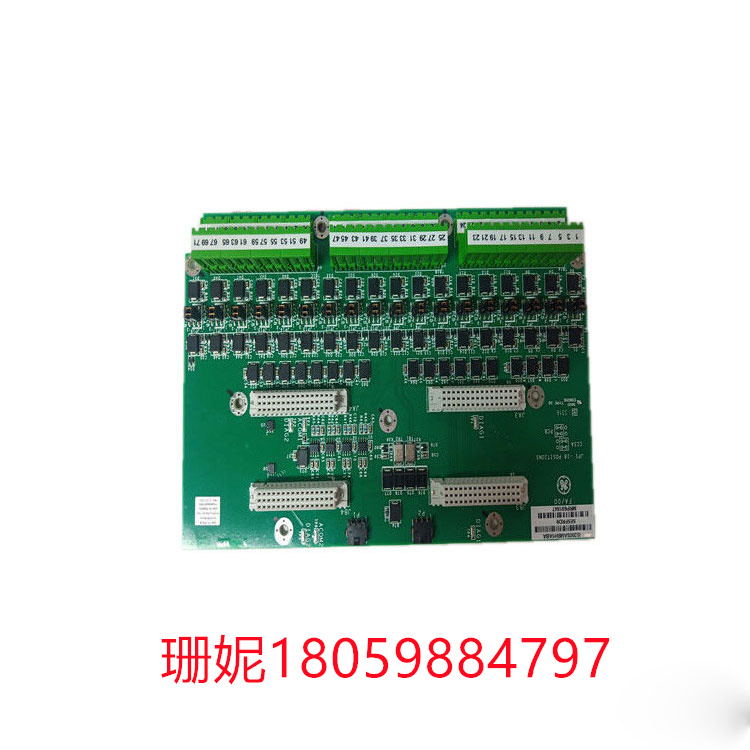

IS200SAMBH1ABABA是一款声学监测终端板。双端子板通过位于连接两线输入的端子带上的36个端子,为声学监测系统增加了18个输入。该板还具有带有36个终端连接的端子带,用于增加两线缓冲输出,总共有18个输出。这些输出通常监测电压信号。IS200SAMBH1ABABA填充了无源电磁干扰(EMI)滤波器,以防止外部来源的高频噪声。
IS200SAMBH1ABABA设计有一个附加的金属框架,环绕PCB的所有四个边缘。这个框架有多个法兰,包括沿每个长边放置的大礼帽法兰,已钻与安装缺口或孔。单板表面标有各种代码,包括FA/00。板组件和前面提到的框架通过支架和螺钉安装连接。单板尺寸为9.1英寸×5.625英寸。冷却是通过空气对流实现的。
IS200SAMBH1ABABA由许多跳线开关填充。这些用于将SigX线连接到恒流源。关于电路板的更多信息,它的组件,操作和安装,可以通过制造商的用户指南和手册找到。
IS200SAMBH1ABA GE 是一款声学监测终端板
The IS200SAMBH1ABABA is a PCB(printed circuit board) component manufactured by General Electric for the Mark VI and Mark VIe systems. These systems, released by General Electric, improve the efficiency of gas and steam turbines through reliable management. They are both TMR(three-module redundant) systems that provide multiple backups of critical control and protection parameters.
The IS200SAMBH1ABABA is an acoustic monitoring terminal board. The double terminal board adds 18 inputs to the acoustic monitoring system through 36 terminals located on the terminal band that connects the two wire inputs. The board also has a terminal band with 36 terminal connections for an additional two-wire buffer output for a total of 18 outputs. These outputs typically monitor voltage signals. The IS200SAMBH1ABABA is filled with passive electromagnetic interference (EMI) filters to protect against high-frequency noise from external sources.
The IS200SAMBH1ABABA design has an additional metal frame that wraps around all four edges of the PCB. This frame has multiple flanges, including top hat flanges placed along each long side that have been drilled with mounting notches or holes. The surface of the board is marked with various codes, including FA/00. The plate assembly and the aforementioned frame are connected by brackets and screw mounting. The dimensions of the board are 9.1 inches x 5.625 inches. Cooling is achieved by convection of air.
The IS200SAMBH1ABABA is filled with many jumper switches. These are used to connect SigX lines to a constant current source. More information about the board, its components, operation and installation, can be found through the manufacturer's user guide and manual.
