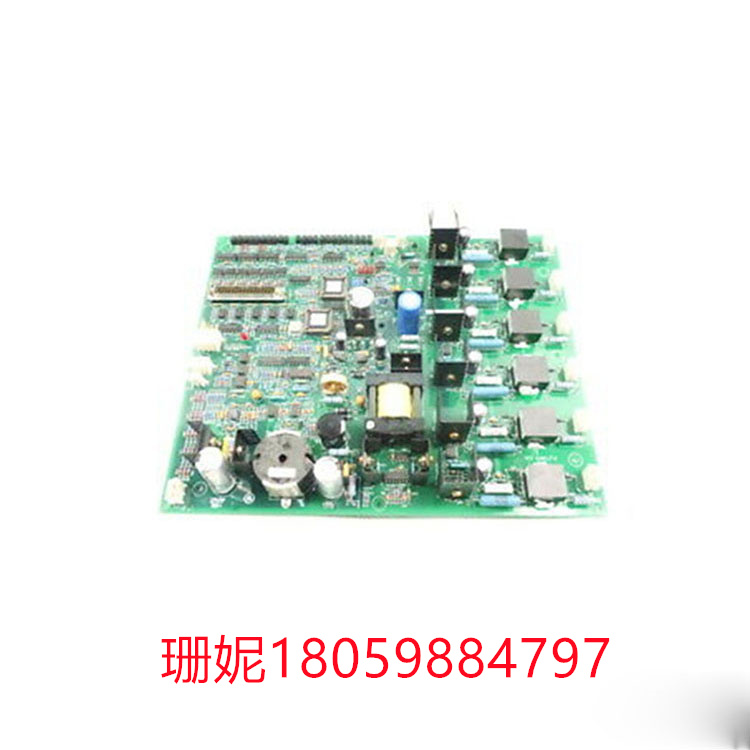

IS200EGPAG1BCA GE 与电源转换模块相连
【产品详情】
1)备件
2)保修期:12个月!
3)包装:原包装与纸箱。
4)交货时间:付款后3天内发货
5)所有货物将在发货前进行测试。
IS200EGPAG1BCA技术规范
板型门脉冲放大板
可配置硬件5板上跳线
已停产/过时/遗留是的,请联系AX控制以获取可用剩余
电源桥的功能接口控制
功能缩写(简称)egpa
使用说明书编号gei -100461 (GEH-6632系列手册)
型号为is200egpag1b
板载绿色和红色LED指示灯
OEM /制造商通用电气,通用电气工业系统
可修复Y/ n可修复
ex2100系列/产品线励磁控制-励磁系统
体重1磅9盎司
产品描述
门极脉冲放大器板号为IS200EGPAG1BCA,位于电源转换柜中,可与电源转换模块相连。该模块是标记在桥接板和保护板/模块下的板之一,虽然该板可以独立运行,但通常需要从EPDM模块之一取电。
IS200EGPAG1BCA板接收安装在可控硅散热器上的两个热开关的反馈。这些开关在报警级别和跳闸级别触发和打开,并直接连接到IS200EGPAG1BCA。在触发开关之前必须达到的温度是190°F的跳闸水平和170°F的报警水平。开关既可以单独打开,也可以一起打开,如果只有一个开关打开,则发生了关于桥的过温警报,如果两个开关都打开,则表明发生了跳闸和故障。
IS200EGPAG1BCA板有五个跳线,这些跳线允许用户选择所需的特定应用配置,并在安装前轻松调整跳线配置。
关于IS200EGPAG1BCA的常见问题
axcontrol可以提供什么,因为它涉及到IS200EGPAG1BCA门脉冲放大器板?
axcontrol将购买,出售或维修IS200EGPAG1BCA板,并且通常在货架上有剩余库存可供报价。IS200EGPAG1BCA门脉冲放大器板的销售和维修提供3年保修。请通过电话或电子邮件联系我们的销售团队,以便快速报价。
IS200EGPAG1A和IS200EGPAG1BCA上的LED指示灯是否相同?
是的!IS200EGPAG1BCA板上的led还用于指示进入电桥的电流状态、线路滤波器、栅极电源、输出着火、电桥温度、报警/故障条件和冷却风扇旋转。
在EX2100系列中,有许多不同类型的印刷线路板。IS200EGPAG1BCA型号属于哪一类?
IS200EGPAG1BCA型号属于印刷线路板的桥接和保护板/模块。
IS200EGPAG1A和IS200EGPAG1BCA板有什么区别吗?
根据GEH-6632 EX2100励磁控制用户指南,两个EGPA板之间没有差异。
IS200EGPAG1BCA GE 与电源转换模块相连
IS200EGPAG1BCA technical specification
Plate type gate pulse amplifying plate
Hardware 5 board jumpers can be configured
Discontinued/Obsolete/Legacy Yes, please contact AX Control for available surplus
Power bridge function interface control
Functional abbreviation (abbreviated)egpa
Instruction Manual No. gei-100461 (GEH-6632 Series Manual)
The model is is200egpag1b
Onboard green and red LED indicators
OEM/Manufacturer General Electric, General Electric Industrial Systems
Repairable Y/ n Repairable
ex2100 Series/Product Line Excitation Control - excitation system
Weighs 1 pound, 9 ounces
Product description
The gate pulse amplifier board number IS200EGPAG1BCA is located in the power conversion cabinet and can be connected to the power conversion module. This module is one of the boards marked under the bridge board and the protection board/module, and although the board can operate independently, it usually needs to draw power from one of the EPDM modules.
The IS200EGPAG1BCA board receives feedback from two thermal switches mounted on the thyristor radiator. These switches trigger and open at alarm and trip levels and are directly connected to the IS200EGPAG1BCA. The temperature that must be reached before the switch is triggered is the trip level of 190°F and the alarm level of 170°F. The switches can be turned on either individually or together, if only one switch is turned on, an overtemperature alarm about the bridge has occurred, if both switches are turned on, it indicates that tripping and failure have occurred.
The IS200EGPAG1BCA board has five jumpers that allow the user to select the desired application-specific configuration and easily adjust the jumper configuration before installation.
FAQ about IS200EGPAG1BCA
What can axcontrol offer as it relates to the IS200EGPAG1BCA gate pulse amplifier board?
axcontrol will buy, sell or repair IS200EGPAG1BCA boards and usually has surplus stock on the shelf to quote. IS200EGPAG1BCA Gate pulse amplifier boards are sold and repaired with a 3-year warranty. Please contact our sales team by phone or email for a quick quote.
Are the LED indicators on IS200EGPAG1A and IS200EGPAG1BCA the same?
Yes, we do! The leds on the IS200EGPAG1BCA board are also used to indicate the current status entering the bridge, line filter, gate power supply, output fire, bridge temperature, alarm/fault conditions, and cooling fan rotation.
In the EX2100 series, there are many different types of printed circuit boards. Which category does IS200EGPAG1BCA model belong to?
The IS200EGPAG1BCA model is a bridge and protection board/module for printed circuit boards.
Is there any difference between IS200EGPAG1A and IS200EGPAG1BCA boards?
According to the GEH-6632 EX2100 Excitation Control User Guide, there is no difference between the two EGPA boards.
