IS215VPROH1BD GE 紧急保护组件
IS215VPROH1BD GE 紧急保护组件
紧急跳闸功能,紧急停机功能,紧急超速保护
制造商ge(石油和天然气),通用电气
部件编号简称vpro
系列mark VI涡轮控制系统
体重5磅
零件号is215vproh1b
汽轮机保护总成模块

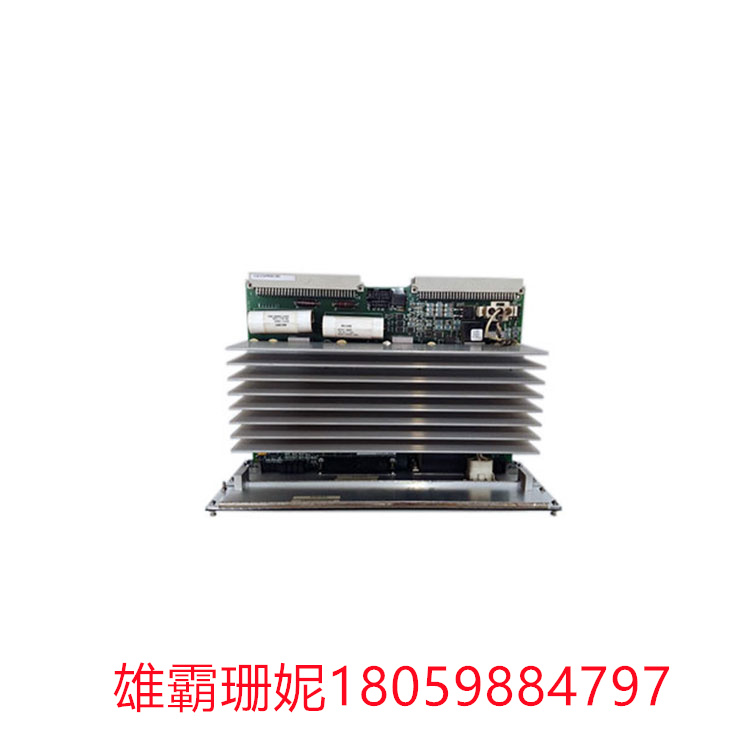

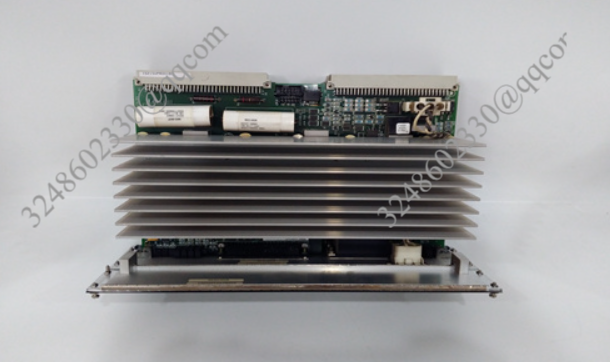

说明:GE IS215VPROH1B是Mark VI涡轮控制系统中使用的紧急保护组件,在大多数手册和文档中引用为VPRO。
IS215VPROH1B是为Mark VI系统制造的模块。Mark VI是来自Speedtronic生产线的燃气/蒸汽轮机管理系统,GE已经开发了30多年,专注于创建可靠和高效的系统。
IS215VPROH1B作为应急涡轮保护模块。IS215VPROH1B提供速度差检测和备份同步检查保护。该板接受热电偶和模拟输入。这个模块有两个电路板堆叠在一起。顶部板是一个IS200VPRW板,通过四个螺纹连接安装到底部板上。电路板由集成电路、变压器、几个晶体管以及电阻、电容器和二极管组成。电容器包括聚酯乙烯基制成的电容器。电阻器有时由碳复合材料制成。电路板有几个电感线圈和许多连接器,包括插头。有一个散热器位于右前方。
IS215VPROH1BD GE 紧急保护组件
Function in Application Emergency Trip Function, Emergency Stop Functions, Emergency Overspeed Protection
Manufacturer GE (Oil & Gas), General Electric
Part Number Abbreviation VPRO
Series Mark VI Turbine Control System
Weight 5 lbs
Part Number IS215VPROH1B
Product Type Turbine Protection Assembly Module
Description: The GE IS215VPROH1B is an emergency protection assembly used in Mark VI Turbine Control Systems and referenced as VPRO in most manuals and documentation.
The IS215VPROH1B is a module manufactured for the Mark VI system. The Mark VI is a gas/steam turbine management system from the Speedtronic line, which has been developed by GE for over thirty years with a focus on creating systems that are reliable and efficient.
The IS215VPROH1B functions as an Emergency Turbine Protection module. The IS215VPROH1B offers speed difference detection and backup synch check protection. The board accepts thermocouple and analog inputs. This module has two circuit boards stacked one on top of each other. The top board is an IS200VPRW board that mounts to the lower board via four screw connections threaded into standoffs. The board is populated by integrated circuits, a transformer, several transistors, as well as resistors, capacitors, and diodes. Capacitors include those made of polyester vinyl. Resistors are sometimes made of carbon composite material. The board has several inductor coils and many connectors including plugs. There is a heat sink located to the right front side.
