IS215UCVEH2AE是通用电气Mark VI Speedtronic控制系统的一个组件。该单板作为VME控制卡。VME卡机架是Mark VI的标准机架，可作为13或21槽机架。

IS215UCVEH2AE是一种矩形板，带有附加的前面板。面板在顶部和底部有一个固定螺钉，以帮助将电路板安装到机架系统中后固定到位。前面板包括1个以太网接口、2个COM接口和1个LAN接口。它也有一个夹层卡的空缺。

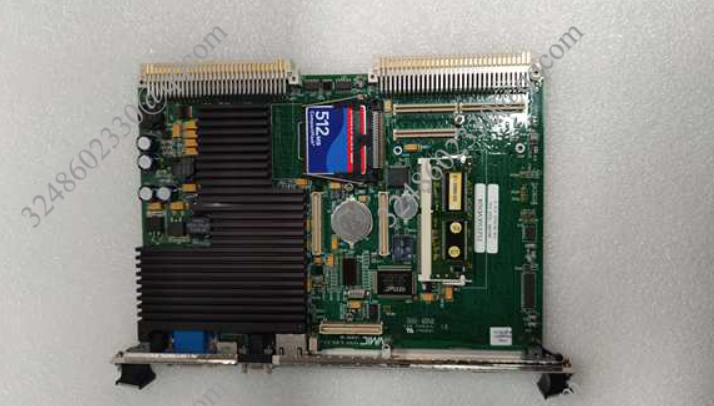

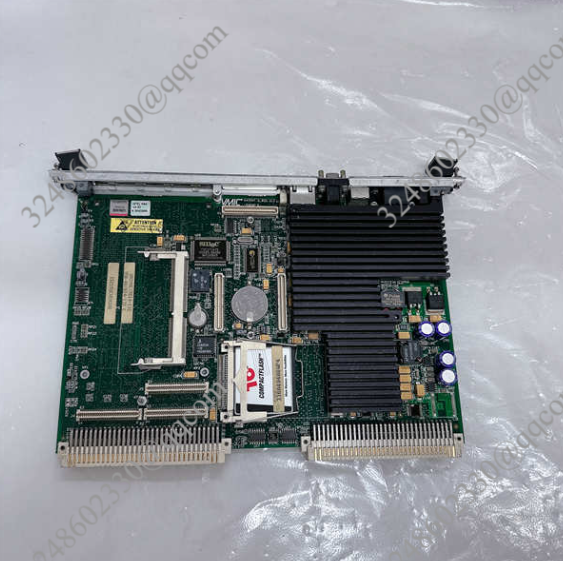

该板本身包括板体内的垂直引脚连接器和沿板边缘的直角引脚连接器。此外，电路板有几个集成电路，电阻器，电容器，扼流圈和其他组件。此外，还有一个小电路板安装在一个角度在板的中心和散热罩位于一半以上的板。

IS215UCVEH2AE GE  直角引脚连接器

The IS215UCVEH2AE is a component of the General Electric Mark VI Speedtronic control system. The board functions as a VME control card. The VME card rack is the standard rack for Mark VI and can be used as a 13 or 21 slot rack.

The IS215UCVEH2AE is a rectangular board with an additional front panel. The panel has a set screw at the top and bottom to help secure the board in place after it is installed into the rack system. The front panel provides one Ethernet port, two COM ports, and one LAN port. It also has a mezzanine card vacancy.

The board itself includes a vertical pin connector inside the board and a right Angle pin connector along the edge of the board. In addition, the board has several integrated circuits, resistors, capacitors, chokes and other components. In addition, there is a small circuit board mounted at an Angle in the center of the board and a heat sink located more than half of the board.
