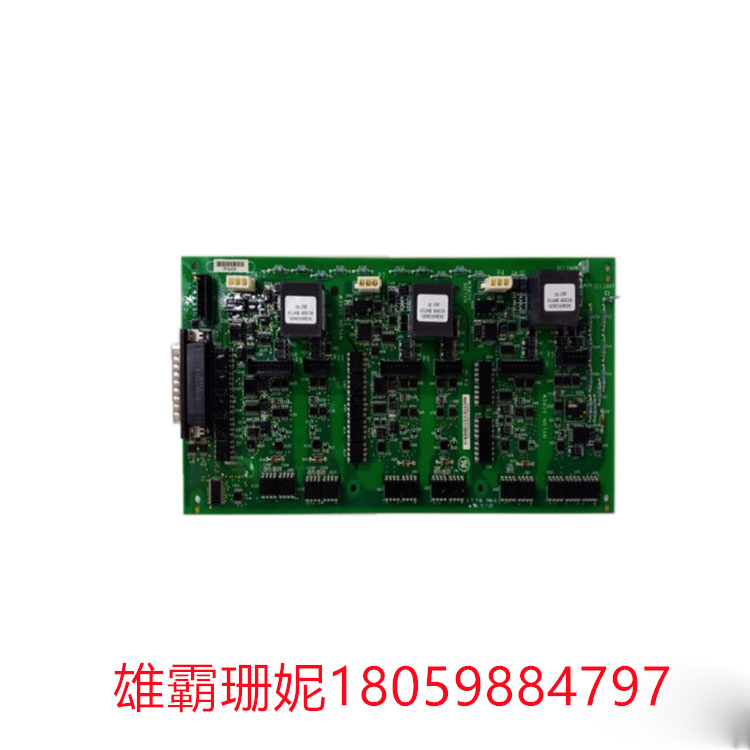

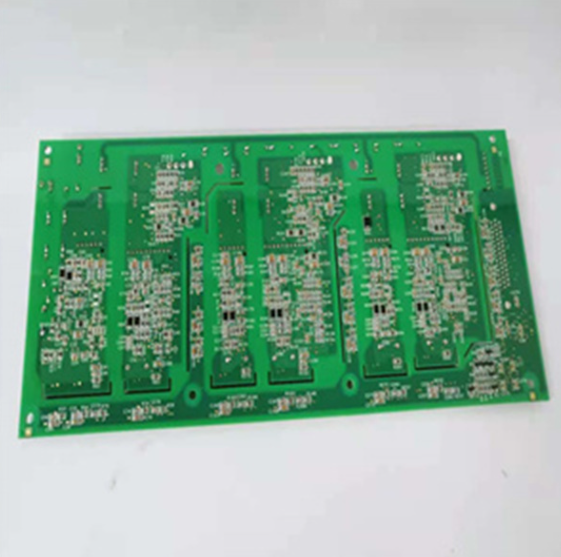

IS210WSVOH1AE GE 线程输入/输出板

IS210WSVOH1AE GE  线程输入/输出板

IS210WSVOH1AE GE  线程输入/输出板

IS210WSVOH1AE是GE为Mark VI制造的PCB组件。MKVI是用于蒸汽或气体重型涡轮系统的涡轮管理系统。MKVI的特点是I/O卡设计为通用I/O以及应用程序特定的I/O。

IS210WSVOH1AE作为线程输入/输出板。它由8个继电器组成，包括4个大型继电器(K1/K2/K3/K4)和4个较小的继电器(K5/K6/K7/K8)。电路板上有led、电阻、集成电路、二极管和电容器，包括一个旋转电位器(C188)。该板也有一个单跳线(JP1)，有多个位置。

IS210WSVOH1AE有许多连接器，包括两个端子板(TB1和TB2)，每个板有12个螺钉连接。它们位于与长边平行且彼此平行的位置。单板右侧有一个直角电缆连接器(J1)。这个标着1212B。它有一个2位插头连接器(J4)。有3个插孔连接器(P1到P3)和8个插接连接器(P10到P17)。最后一个连接器是前端的头部连接器(P18)。

IS210WSVOH1AE GE  线程输入/输出板

The IS210WSVOH1AE is a PCB component manufactured by GE for the Mark VI. MKVI is a turbine management system for steam or gas heavy duty turbine systems. MKVI features I/O cards designed for general-purpose I/O as well as application-specific I/O.

IS210WSVOH1AE as thread input/output board. It consists of eight relays, including four large relays (K1/K2/K3/K4) and four smaller relays (K5/K6/K7/K8). On the board are leds, resistors, integrated circuits, diodes and capacitors, including a rotating potentiometer (C188). The board also has a single jumper (JP1) that has multiple positions.

The IS210WSVOH1AE has a number of connectors, including two terminal boards (TB1 and TB2), each with 12 screw connections. They are located parallel to the long side and parallel to each other. There is a right Angle cable connector (J1) on the right side of the board. This one is labeled 1212B. It has a 2-position plug connector (J4). There are 3 jack connectors (P1 to P3) and 8 jack connectors (P10 to P17). The last connector is the front head connector (P18).

IS210WSVOH1AE GE  线程输入/输出板
