IS210BPPBH2BMD是通用电气制造的Mark VI板组件。MKVI是通用电气公司发布的第五款Speedtronic系统，专为蒸汽或燃气轮机管理而设计。从20世纪60年代到世纪之交，Speedtronic生产线一直是通用电气的主要管理生产线。该系统包括一个中央控制模块，连接到终端板以及操作员界面，允许访问涡轮机数据，可编程维护工具和报警状态。

IS210BPPBH2BMD是一个小的辅助板，连接到一个更大的WETA板。IS210BPPBH2BMD通过四个钻出的孔连接到主板上。这些位于板的每个角附近。螺钉插入到支架，然后进入主板下面。这块木板的三个边都有小切口。

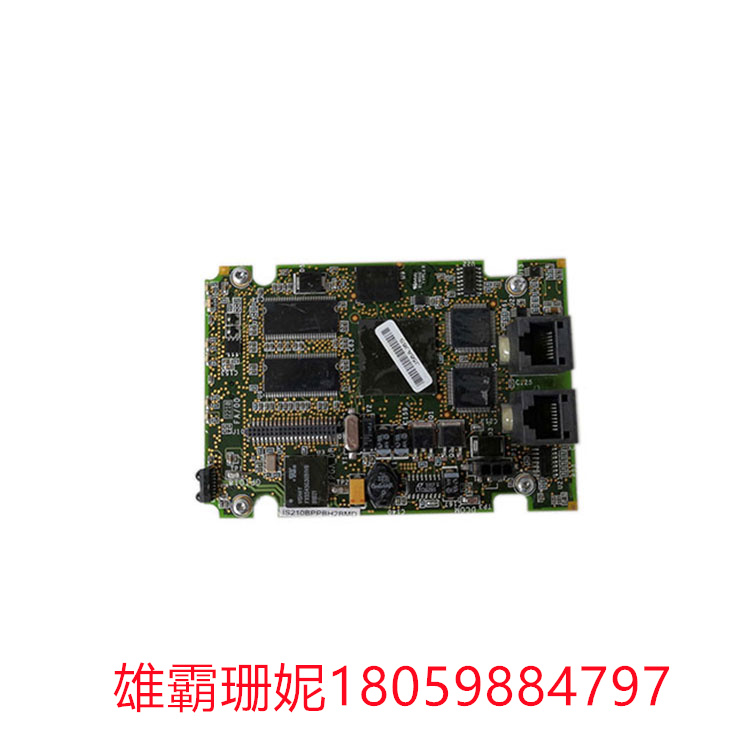

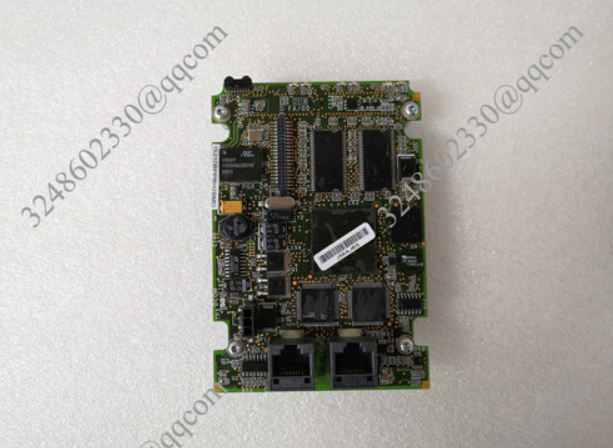

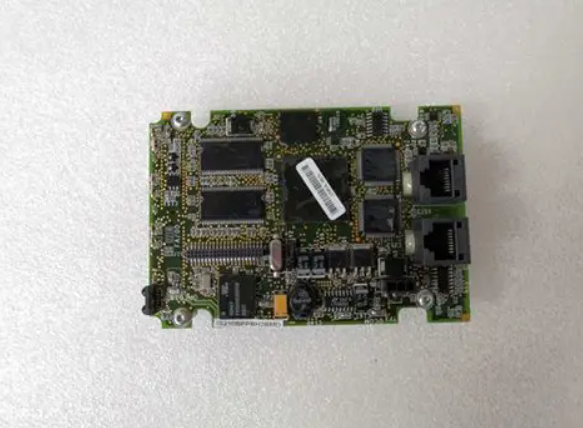

IS210BPPBH2BMD由两个母插头填充。其中一种是三位置插头。另一个插头是又长又窄的。该板也有两个母插孔连接器。电路板由变压器、晶体管、电感线圈和两个晶体/振荡器组成。它也有两个LED组件并排位于沿板的一个边缘。

IS210BPPBH2BMD带有GE标识。它还携带6型、FA/00和E99006等代码。有关电路板组件、安装程序和安全建议的更多信息可在制造商的出版物中找到。

IS210BPPBH2BMD GE  中央控制模块

The IS210BPPBH2BMD is a Mark VI board component manufactured by General Electric.   Created for steam or gas turbine management, the MKVI was the fifth Speedtronic system released by GE.   The Speedtronic line was General Electric’s primary management line from the 1960s through to the turn of the century.   This system includes a central Control module that connects to termination boards as well as to an Operator Interface that allows access to turbine data, programmable maintenance tools, and alarm states.

The IS210BPPBH2BMD is a small auxiliary board that connects to a larger WETA board.   The IS210BPPBH2BMD connects to its motherboard using screws that thread through four drilled out holes.   These are located near each of the corners of the boards.  The screws insert into standoffs and then into the motherboard below.    This board has small cutouts on three edges.

The IS210BPPBH2BMD is populated by two female plugs.   One of these is a three-position plug.  The other plug is a long, narrow plug.    The board also has two female jack connectors.  The board is populated by transformers, transistors, an inductor coil, and two crystal/oscillators.   It also has two LED components that are located side-by-side along one edge of the board.

The IS210BPPBH2BMD is marked with the GE logo.  It also carries codes like Type 6, FA/00, and E99006.   More information about board components, installation procedures, and safety recommendations may be found within publications from the manufacturer.
