IS210AEDBH4AGD GE Mark VI系统的板组件

IS210AEDBH4AGD GE Mark VI系统的板组件

IS210AEDBH4AGD GE Mark VI系统的板组件

IS210AEDBH4AGD是由GE制造的Mark VI系统的板组件。Mark VI系统用于管理燃气轮机和蒸汽轮机，并具有集成的HMI/操作员界面，允许用户使用特殊设计的软件(如GE的simplicity图形平台)访问系统数据。

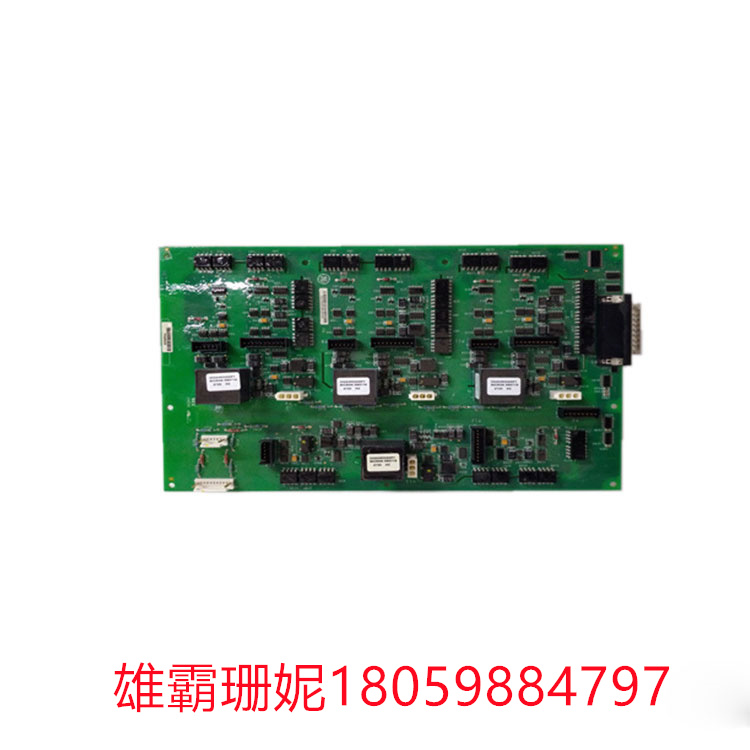

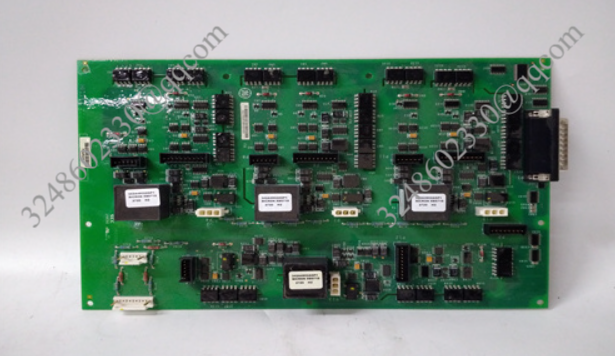

IS210AEDBH4AGD为桥接接口卡。该组件的前表面有许多连接器，包括标有574 9771-1 1301的直角电缆连接器。有两个头连接器，有六个或四个位置，但每个有两个垂直引脚。该板有9个雄性垂直引脚连接器，范围从6引脚到10引脚。电路板也有四个插头，每个插头有三个位置。

IS210AEDBH4AGD GE Mark VI系统的板组件

The IS210AEDBH4AGD is a board component of the Mark VI system manufactured by GE. The Mark VI system is used to manage gas and steam turbines and features an integrated HMI/ operator interface that allows users to access system data using specially designed software such as GE's simplicity graphics platform.

The IS210AEDBH4AGD is a bridge interface card. The front surface of the assembly has a number of connectors, including a right Angle cable connector marked 574 9771-1 1301. There are two head connectors that have six or four positions, but each has two vertical pins. The board has 9 male vertical pin connectors ranging from 6 pins to 10 pins. The board also has four plugs, each with three positions.

IS210AEDBH4AGD GE Mark VI系统的板组件
