IS200WETBH1ABA是GE为Mark VI系统创建的一个组件。Mark VI是Speedtronic系列的一部分，Speedtronic系列是通用电气在20世纪60年代至90年代之间开发的燃气/蒸汽轮机管理系列，其重点是通过使用可靠的管理来提高相关涡轮系统的运行效率。MKVI是用通用I/ o和特定应用I/ o构建的。这些控制和监测的问题，如火焰检测，振动，轴电压积累，和适当的同步。

IS200WETBH1ABA是一个组件密集的板。这块板的边缘有一条裸露的铜条，每隔一段时间钻一次。大多数板的65+插头和连接器沿板边缘放置。这些包括两个位置到20个位置的插头。女千斤顶的位置从4个到12个不等。内板也有三个垂直公连接器;P1是一个10针连接器，P2是一个6针连接器，P3是一个4针连接器。

IS200WETBH1ABA具有单个变压器组件。电路板上有30多个两种不同类型的继电器。有熔断器(10)，跳线(2)，散热器(7)，稳压器(9)，线圈电感器，TP测试点和单个开关元件。这块电路板上还有50多个集成电路。电路板采用压敏电阻和高压电解电容器。有些电阻器是由金属膜制成的。is200wethh1baa的安装程序可以使用用户指南、数据表或手册找到。请遵循所有安全建议。

IS200WETBH1ABA GE  组件密集的板

IS200WETBH1ABA is a component created by GE for the Mark VI system. The Mark VI is part of the Speedtronic family, a family of gas/steam turbine management developed by General Electric between the 1960s and 1990s with a focus on improving the operational efficiency of associated turbine systems through the use of reliable management. MKVI is built with generic I/ o and application-specific I/ o. These control and monitor issues such as flame detection, vibration, shaft voltage accumulation, and proper synchronization.

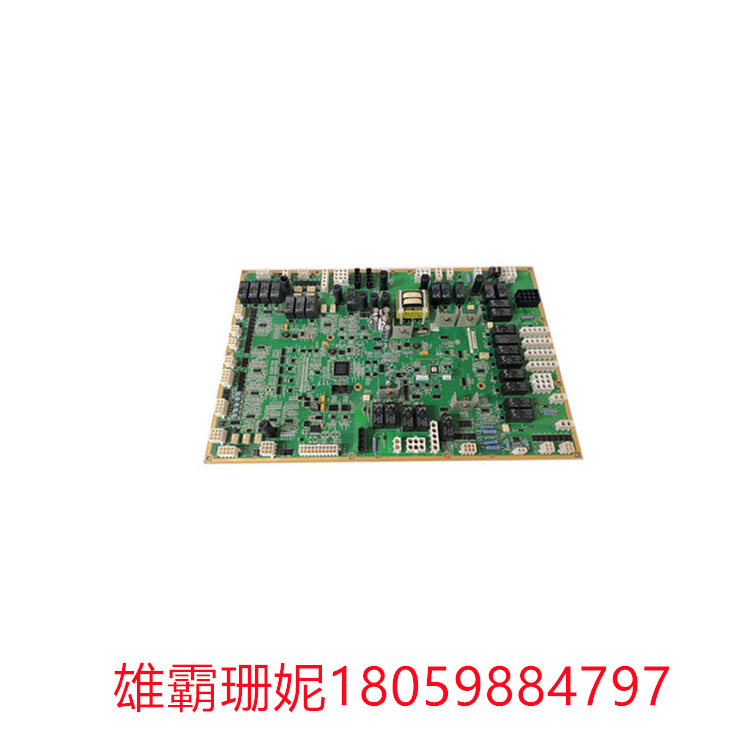

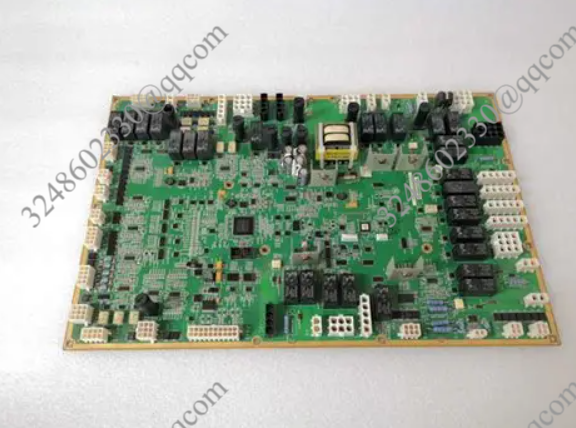

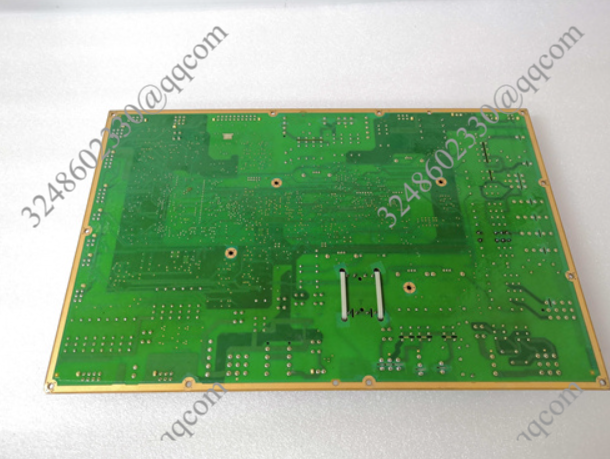

The IS200WETBH1ABA is a component-dense board. The edge of this board has a strip of exposed copper that is drilled at regular intervals. Most boards have 65+ plugs and connectors placed along the edge of the board. These include plugs from two positions to 20 positions. The positions of the women's jacks vary from 4 to 12. The inner plate also has three vertical male connectors; P1 is a 10-pin connector, P2 is a 6-pin connector, and P3 is a 4-pin connector.

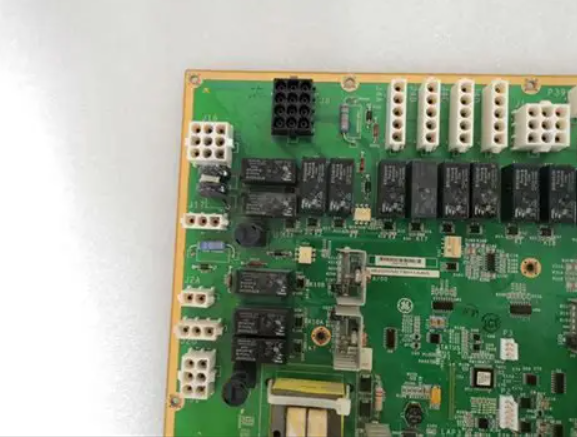

The IS200WETBH1ABA has a single transformer assembly. There are more than 30 relays of two different types on the circuit board. There are fuses (10), jumpers (2), heat sinks (7), voltage regulators (9), coil inductors, TP test points and individual switching elements. There are also more than 50 integrated circuits on this board. The circuit board uses varistor and high voltage electrolytic capacitor. Some resistors are made of metal film. The installation program for is200wethh1baa can be found using the user guide, data sheet, or manual. Please follow all safety recommendations.
