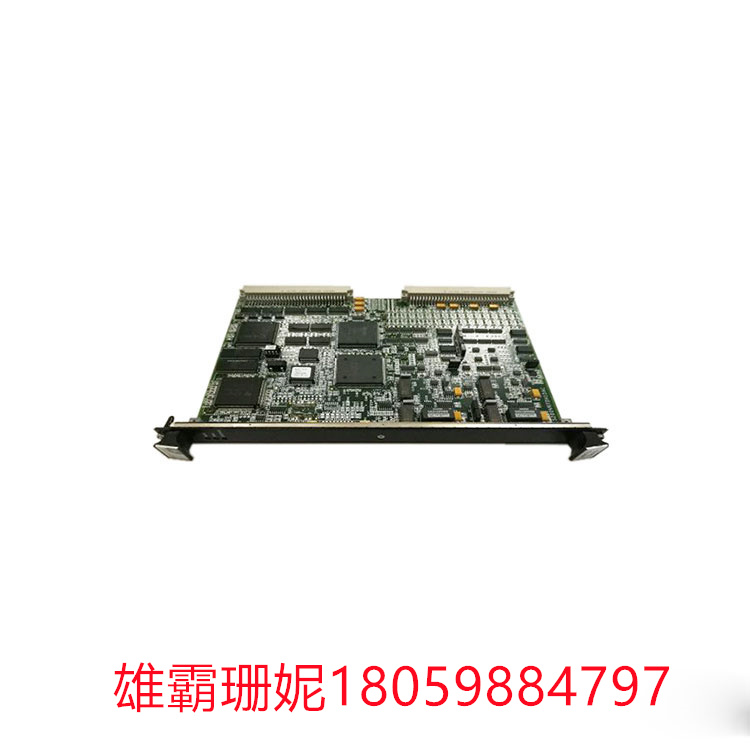

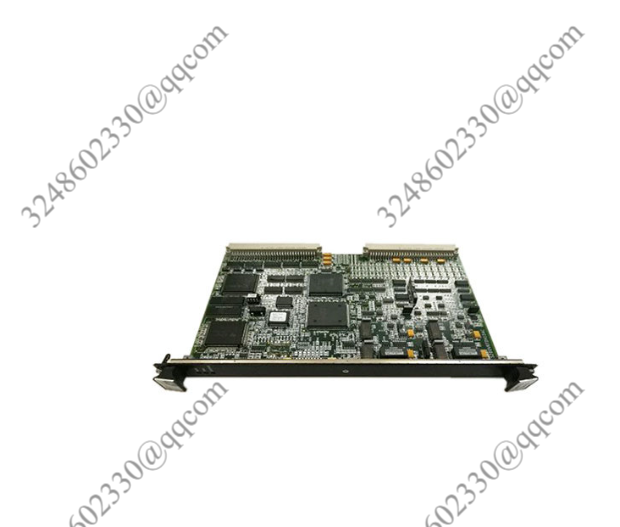

IS200VRTDH1D是GE Mark VI单板组件。Mark VI是通用电气从20世纪60年代末一直到21世纪初开发和发布的燃气和蒸汽轮机管理Speedtronic系列的一部分。这条涡轮机管理线开始与马克1，并逐渐成为更先进的技术。Mark VI包括一个三重冗余中央控制模块，连接到基于pc的操作界面。该操作界面允许使用为涡轮机控制设计的软件从单个位置访问涡轮机数据。

IS200VRTDH1D为RTD(电阻温度器件)输入。该板接受16个三线RTD输入，虽然这些输入不直接连接到板。相反，输入线连接到RTD端子板，并通过电缆连接到安装IS200VRTDH1D的VME机架。

IS200VRTDH1D有一个单槽面板。面板上安装了三个LED指示灯，用于指示运行/故障/状态。led有绿色、红色和橙色三种颜色。面板用三个螺丝连接到主PCB上。

IS200VRTDH1D组件密集。电路板电容器(200多个)和电阻(数百个)以及200多个集成电路。这包括现场可编程门阵列(fpga)。电路板上的感应珠位于几条线上。它在几个位置钻孔，包括在特定安装的芯片周围。单板上标有94V-0、6BA01、PC-40802等代码。GE的出版物GEH-6421将提供有关该板的组件和安装的更多信息。

IS200VRTDH1D GE  单槽面板

The IS200VRTDH1D is a GE Mark VI board component.    The Mark VI is part of the Speedtronic line of gas and steam turbine management  developed and released by General Electric from the late 1960s all the way through the beginning of the 2000s.   This turbine management line began with the Mark I and has progressively become more technologically advanced.   The Mark VI includes a triple redundant central control module connected to a PC-based operator interface.    This Operator Interface allows for the access of turbine data from a single location using software designed for turbine control.

The  IS200VRTDH1D is an RTD (Resistance Temperature Device) Input.     The board accepts sixteen three-wire RTD inputs, although these inputs are not wired directly to the board.    Instead, the inputs wire to an RTD terminal board and connect by cables to the VME rack in which the IS200VRTDH1D is mounted.

The  IS200VRTDH1D has a single-slot faceplate.    There are three LED indicators mounted in the faceplate used to indicate Run/Fail/Status.   The LEDs are green, red, and orange in color.    The faceplate is connected to the main PCB using three screws.

The  IS200VRTDH1D is component dense.    The board capacitors (over 200,) and resistors (several hundred,) as well as over 200 integrated circuits.    This includes field programmable gate arrays (FPGAs.)   The board has inductor beads located in several lines.    It is drilled in several locations, including around specific mounted chips.   The board is marked with codes such as 94V-0, 6BA01, and PC-40802.    GE publication GEH-6421 will provide more information on components and installation of the board.
