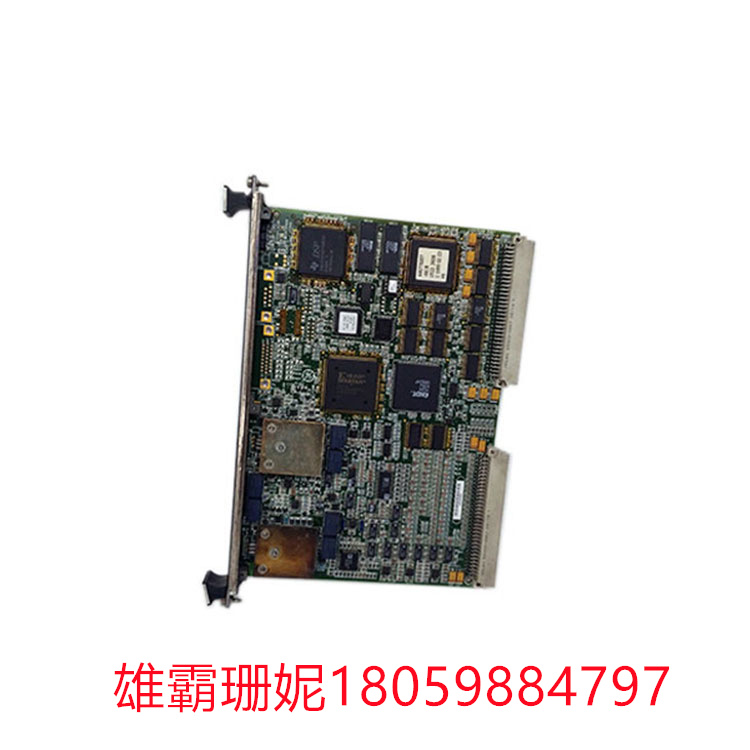

IS200VAICH1DAB型号与TBAIH1C或STAI端子板兼容，用于通用电气制造的Mark VI系列，将数字输出值转换为模拟电流，通过附加的端子板驱动进入客户电路。该VAIC模型可用于单纯形和TMR系统应用。

零件号:is200vaich1dab

系列标志VI

制造商通用电气

使用说明书geh -6421

产品类型模拟输入/输出板

功能缩写/缩写vaic

扫描时间正常扫描10ms, 100hz

电力消耗

由通用电气制造的模拟输入/输出板，IS200VAICH1DAB模型用于TMR或单工应用中的Mark V系统。当用于TMR系统配置时，附加的终端板(TBAIH1C或STAI板)上的输入信号将被扇形分布到三个VME机架，T, R和S，每个机架包含一个VAIC板。VAIC板上的输出信号将由专有电路驱动，使用所有可用的VAIC板产生理想的电流。如果VME机架上的任何IS200VAICH1DAB型号出现故障，则会将故障的VAIC型号从输出中移除，剩余的VAIC板可以继续提供正确的电流。当该模型用于单工配置时，附加的端子板将为其中一个VAIC模型提供输入，为输出提供所有电流。

在IS200VAICH1DAB模型运行期间，它将控制4个模拟输出并接受多达20个模拟输入。该模型具有模拟MUX, A/D转换器，D/A转换器和信号调理。该型号有两个模拟输入，±1ma或4- 20ma，由附加端子板上的跳线选择。模拟输出电路分为两部分;两个输出可配置为0-200 mA或4-20 mA，其他输出仅为4-20 mA。IS200VAICH1DAB型号的输入和输出都包含高抑制电路，以防止高频噪声和浪涌。

IS200VAICH1DAB GE  模拟输入/输出板

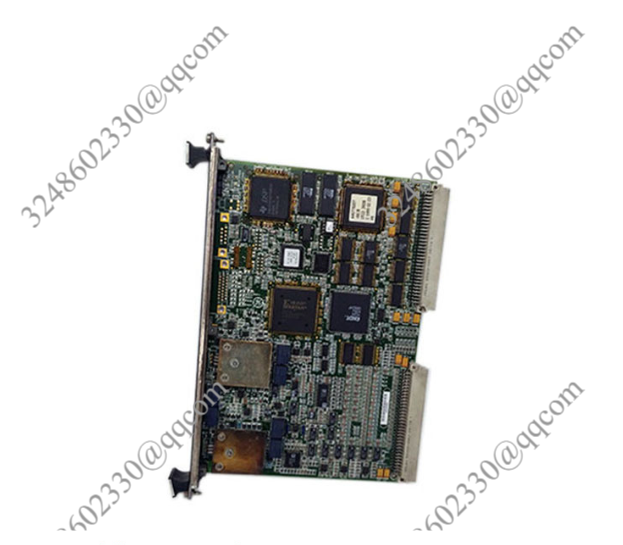

Compatible with the TBAIH1C or STAI terminal boards, the IS200VAICH1DAB model is used in the Mark VI series manufactured by General Electric to convert digital output values to analog currents driven through the attached terminal boards into the customer circuit.  The VAIC model can be used in simplex and TMR system applications.

Part Number IS200VAICH1DAB

Series Mark VI

Manufacturer GE

Instruction Manual GEH-6421

Product Type Analog Input/Output Board

Functional Acronym/Abbreviation VAIC

Scan Time Normal Scan 10 ms at 100 Hz

Power Consumption

Manufactured by General Electric as an Analog Input/Output Board, the IS200VAICH1DAB model is used in the Mark V system in either TMR or simplex applications.  When used in a TMR system configuration, the input signals on the attached terminal boards, TBAIH1C or STAI board, will be fanned out to three VME racks, T, R, and S, each containing a VAIC board.  The output signals on the VAIC board will be driven with a proprietary circuit creating a desirable current using all of the available VAIC boards.  If any of the IS200VAICH1DAB models fail on the VME rack, the failed VAIC model will be removed from the output, and the remaining VAIC boards can continue to provide the correct current.  When the model is used in a simplex configuration, the attached terminal boards will provide inputs to one of the VAIC models providing all current for the outputs.

During the operation of the IS200VAICH1DAB model, it will control four analog outputs and accept up to twenty analog inputs.  The model has an analog MUX, A/D converter, D/A converter, and signal conditioning.  There are two analog inputs in the model, either ±1 mA or 4-20 mA, which are selected by jumpers on the attached terminal boards.  The analog output circuits are divided;  two outputs can be configured at 0-200 mA or 4-20 mA, and the others are just 4-20 mA.  Both inputs and outputs on the IS200VAICH1DAB model contain high-suppression circuitry to protect against high-frequency noise and surges.
