IS200TVIBH2BBB GE 振动终止板

IS200TVIBH2BBB GE   振动终止板

IS200TVIBH2BBB GE   振动终止板

IS200TVIBH2BBB是由通用电气制造和创建的，作为该公司Speedtronic Mark VI涡轮机控制线的一部分。Speedtronic系统用于控制工业蒸汽和燃气轮机系统从大到小的功能和操作。MKVI设计易于集成，提供控制和保护功能。

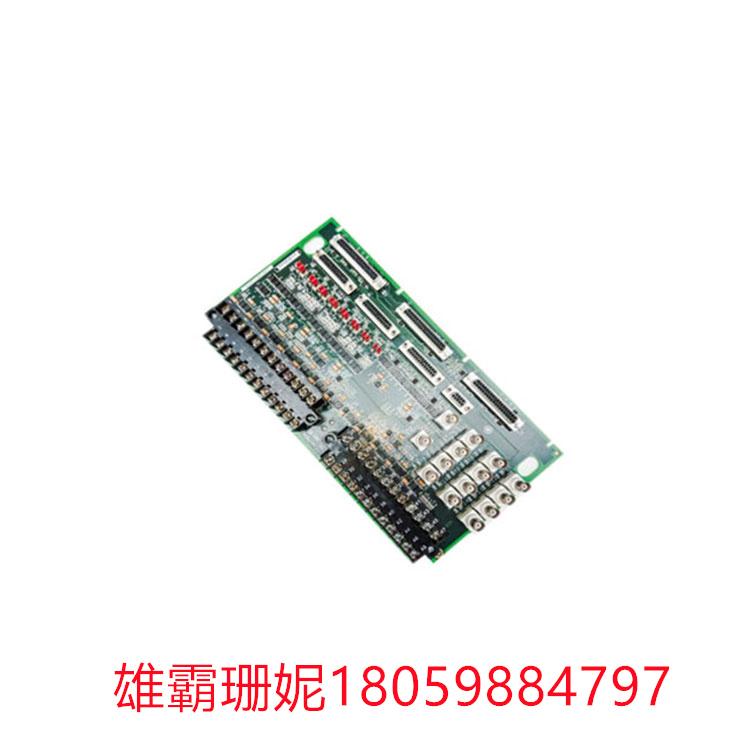

IS200TVIBH2BBB作为振动终止板。它的表面安装了多个集成电路来控制和包含数据。电路板还包括典型的元件，如电阻和电容器。此外，它有14个插头连接器位于板的一侧。

IS200TVIBH2BBB有两个大端子块，占用一个长板边缘。这些接线端子有两行螺钉连接。每个单独的螺丝连接都有编号。这将允许用户更好地维护和跟踪所有板连接。

IS200TVIBH2BBB上的其他电路板组件包括母d壳连接器、电感器和跳线开关。跳线被放置在靠近板中心的单线上。它们成对放置。跳线可以改变或重置，以控制电路板中的电路如何路由。更多信息请参考GE的原始文档。

IS200TVIBH2BBB通常与VVIB一起工作以控制振动。这种振动控制有转速限制，需要考虑。GE手册和数据表将为您提供更多详细信息。在拆箱之前，请务必阅读所有技术信息，以确保您理解所有处理说明和安装指南。

IS200TVIBH2BBB GE   振动终止板

The IS200TVIBH2BBB was manufactured and created by General Electric as part of the company's Speedtronic Mark VI turbine control line. Speedtronic systems are used to control the function and operation of industrial steam and gas turbine systems from large to small. The MKVI design is easy to integrate and provides control and protection.

IS200TVIBH2BBB serves as a vibration stop board. It has multiple integrated circuits mounted on its surface to control and contain data. The board also includes typical components such as resistors and capacitors. In addition, it has 14 plug connectors located on one side of the board.

The IS200TVIBH2BBB has two large terminal blocks occupying a long board edge. These terminals are connected by two rows of screws. Each individual screw connection is numbered. This will allow users to better maintain and track all board connections.

Other board components on the IS200TVIBH2BBB include female D-shell connectors, inductors, and jumper switches. The jumper is placed on a single wire near the center of the board. They are placed in pairs. Jumpers can be changed or reset to control how circuits in the board are routed. Refer to GE's original documentation for more information.

IS200TVIBH2BBB usually works with VVIB to control vibration. This vibration control has speed limits that need to be taken into account. GE manuals and data sheets will provide you with more details. Be sure to read all technical information before unpacking to ensure that you understand all handling instructions and installation guidelines.

IS200TVIBH2BBB GE   振动终止板
