IS200TTURH1CFD 是通用电气公司制造和设计的微处理器扩展板。它是 Mark IV 控制系统的一部分。微处理器扩展板是一种用于扩展基于微处理器的系统功能的设备。在涡轮机控制系统中，微处理器扩展板可用于向控制系统添加额外的输入/输出 (I/O) 功能。涡轮机控制系统通常使用微处理器来控制涡轮机的运行。这些微处理器的 I/O 引脚数量有限，这会限制可连接到控制系统的传感器和执行器的数量。微处理器扩展板可用于向系统添加额外的 I/O 功能，从而允许连接更多传感器和执行器。

例如，微处理器扩展板可用于向涡轮机控制系统添加额外的温度传感器。这将使控制系统能够监测涡轮机中多个点的温度，提供***的温度读数并更好地控制涡轮机。微处理器扩展板还可用于为控制系统添加额外的处理能力。这在控制系统需要执行复杂计算或算法的情况下非常有用。通过增加额外的处理能力，控制系统可以更快、更高效地执行这些计算。

IS200TTURH1C主要是矩形，有一些小切口。该板与PTUR和VTUR板等其它PCB一起使用，控制发电机的同步。这主要通过硬件和连接来实现。

IS200TTURH1C有几个表面安装继电器。此外，电路板使用可变电阻，电路板中心附近还有两个变压器。与其他电路板组件的通信通过d外壳连接器(公母)、插头连接器和端子板进行。电路板上最大的两个端子板配有螺丝安装连接器，并标有编号以供参考。

IS200TTURH1C还包括两个跳线开关，允许更改电路板电路，以允许单工或TMR表决。

IS200TTURH1CFD GE 微处理器扩展板

The IS200TTURH1CFD is a microprocessor expansion board manufactured and designed by General Electric Company. It is part of the Mark IV control system. A microprocessor expansion board is a device used to extend the functionality of a microprocessor-based system. In turbine control systems, microprocessor expansion boards can be used to add additional input/output (I/O) functions to the control system. Turbine control systems typically use microprocessors to control the operation of the turbine. These microprocessors have a limited number of I/O pins, which limits the number of sensors and actuators that can be connected to the control system. The microprocessor expansion board can be used to add additional I/O capabilities to the system, allowing more sensors and actuators to be connected.

For example, the microprocessor expansion board can be used to add additional temperature sensors to the turbine control system. This will enable the control system to monitor the temperature at multiple points in the turbine, providing optimal temperature readings and better control of the turbine. The microprocessor expansion board can also be used to add additional processing power to the control system. This is useful in situations where the control system needs to perform complex calculations or algorithms. By adding additional processing power, the control system can perform these calculations faster and more efficiently.

The IS200TTURH1C is mostly rectangular with a few small cuts. The board is used with other PCBS such as PTUR and VTUR boards to control the synchronization of the generator. This is mainly achieved through hardware and connectivity.

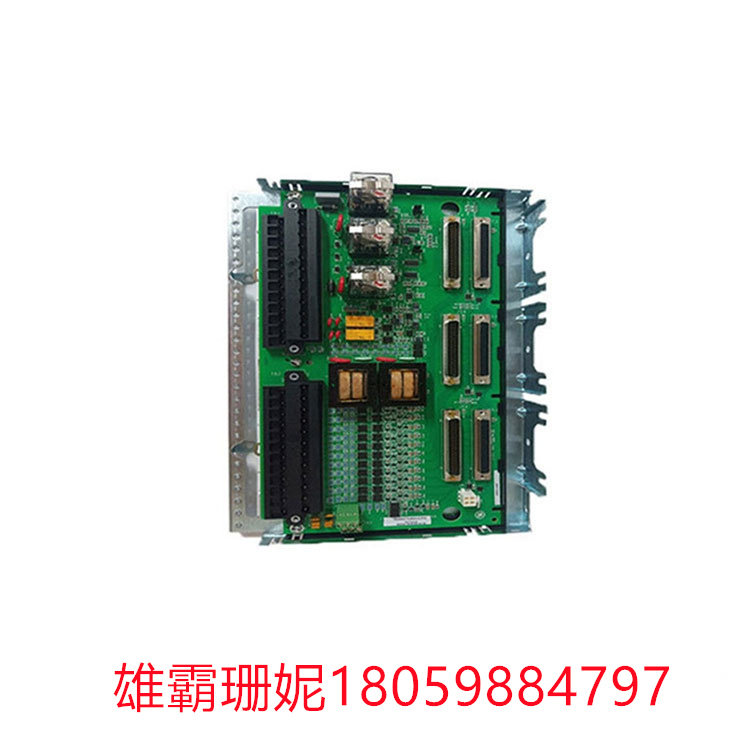

The IS200TTURH1C has several surface-mounted relays. In addition, the board uses variable resistors, and there are two transformers near the center of the board. Communication with other board components occurs through D-housing connectors (male and female), plug connectors, and terminal boards. The two largest terminal boards on the board are equipped with screw mount connectors and are numbered for reference.

The IS200TTURH1C also includes two jumper switches that allow the board circuit to be changed to allow simplex or TMR voting.
