通用电气的IS200TSVCH1A是Mark VI印刷电路板，设计用于伺服终端板。这是通用电气作为Mark VI或Mark VIe Speedtronic系统的一部分提供的几个涡轮特定终端板之一。这些I/O模块提供了与现场设备的直接接口。这有助于减少或消除过去需要的许多工具。这种减少大大简化了长期维护，并从系统中消除了故障点。它还可以为现场设备的直接监测提供直接诊断。该板通常与PSVOH1A包一起工作。

IS200TSVCH1A是一种可移动的阻隔型端子排板。电路板有2线圈输出，2通道，和2脉冲率输入。该板提供8个lvdt。

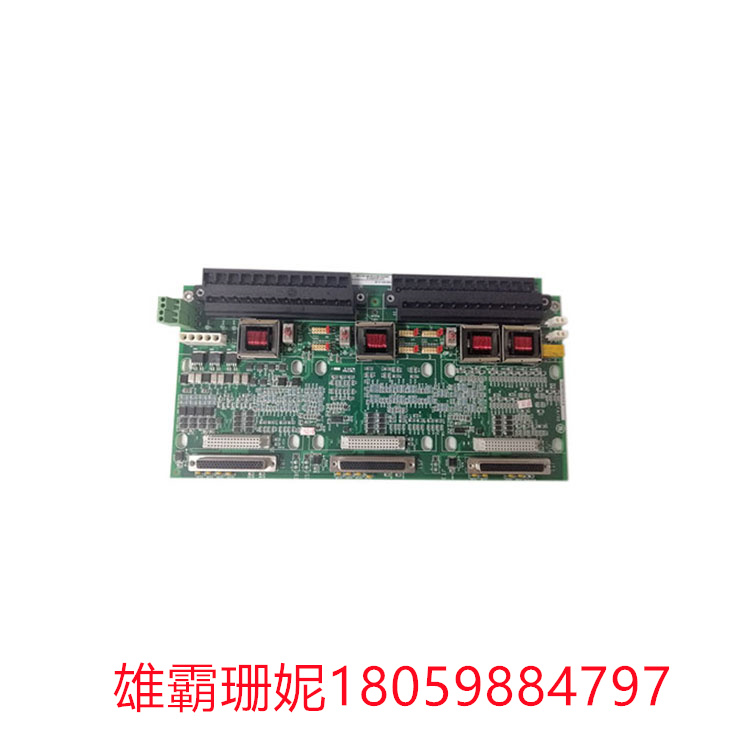

IS200TSVCH1A沿电路板顶部填充了两行垂直连接器。在靠近一个小终端连接器的电路板右下角有额外的连接器。另外两个垂直连接器位于电路板的左侧。此外，该板具有沿板底部的两个终端带。

IS200TSVCH1AJE GE  Mark VI印刷电路板

The IS200TSVCH1A, from General Electric, is a Mark VI printed circuit board designed to function as a Servo terminal board.   This is one of several turbine-specific terminal boards available from GE as part of the Mark VI or Mark VIe Speedtronic system.    These I/O modules offer a direct interface to field devices.   This helps to reduce or eliminate much of the instrumentation that used to be needed.   Such reductions considerably simplify long-term maintenance and remove points of failure from the system.    It also enables direct diagnostics for the direct monitoring of field devices.     This board typically works along with a PSVOH1A pack.

The IS200TSVCH1A  is a removable barrier-type terminal block board.    The circuit board has 2-coil outputs, 2 channels, and 2 pulse rate inputs.    The board offers 8 LVDTs.

The IS200TSVCH1A  is populated with two lines of vertical connectors along the top of the board.    There are additional connectors toward the bottom right side of the board near one small terminal connector.   Two additional vertical connectors are located on the left side of the board.    Additionally, the board has two terminal strips located along the bottom of the board.
