IS200TREGH1BEC是GE Mark VI或Mark VIe Speedtronic系统内的电路板组件。这两种系统都用于工业燃气轮机和蒸汽轮机的管理。

IS200TREGH1BEC与紧急涡轮保护板(VPRO)相关联，有助于提供独立的紧急超速保护。该系统与主涡轮控制系统分开，并使用相关TREG板控制行程螺线管。这也与TRPG板一起工作。IS200TREGH1BEC用于提供125 VDC的正极跳闸功能，另一块板提供负极功能。两种板都可以提供跳闸功能。

IS200TREGH1BEC是GE Mark VI或Mark VIe Speedtronic系统内的电路板组件。这两种系统都用于工业燃气轮机和蒸汽轮机的管理。

IS200TREGH1BEC与紧急涡轮保护板(VPRO)相关联，有助于提供独立的紧急超速保护。该系统与主涡轮控制系统分开，并使用相关TREG板控制行程螺线管。这也与TRPG板一起工作。IS200TREGH1BEC用于提供125 VDC的正极跳闸功能，另一块板提供负极功能。两种板都可以提供跳闸功能。

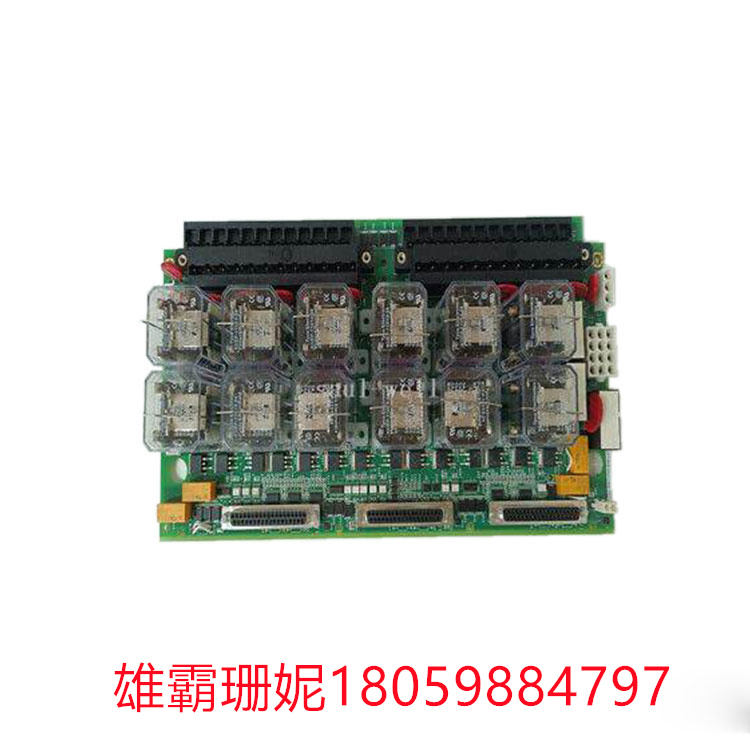

IS200TREGH1BEC在其表面总共有12个继电器。其中九个用于形成三组三个继电器，对控制跳闸螺线管的输入进行投票。这些继电器由VPRO板提供28 VDC。其他板组件包括三个(母)d壳连接器电缆连接，两个终端带，和几个额外的母插头连接。该电路板还有12个金属氧化物压敏电阻，几个跳线器，以及集成电路和晶体管。电阻器、二极管和电容器等元件安装在电路板的前后表面。

IS200TREGH1BEC带有单板id、GE标识、条形码和其他一些用于识别的代码。这些帮助用户找到合适的手册或用户指南，为他们的特定部分。有关IS200TREGH1BEC的安装或维护的详细信息，请参阅这些最初由GE提供的出版物。
