通用电气(GE)创建了IS200TREAH2AED跳闸紧急终止板。IS200TREAH2AED电路板是组成GE Mark VI系列的元件之一。马克六是组成燃气/涡轮设备马克家族的系列之一。这些产品用于自动化和管理燃气轮机和/或蒸汽轮机的过程。

矩形IS200TREAH2AED印刷电路板在其左边界上具有两(2)个长实色黑色端子块。每一个接线柱里面都有24个银金属端子。一系列大约十(10)个圆形的红色元件，称为MOVs或金属氧化物压敏电阻，排列在这些端子块的右侧。IS200TREAH2AED中间的大部分空间由集热器或大型继电器或接触器占用。这些继电器/接触器被安排成两(2)条每(6)个元件的长线。组件成对放置，从上到下彼此平行。沿着IS200TREAH2AED右边界是一组三(3)插孔连接器端口。每个端口包含一个小引脚端口的集合。在IS200TREGH1BDB右侧的两(2)个不同区域可以找到四个矩形形状的大电容器。这四(4)个组件是纯黄色的。两个(2)在右上角附近配对，另外两个(2)在右下角的角落配对。

IS200TREAH2AED GE 跳闸紧急终止板

General Electric (GE) has created the IS200TREAH2AED Trip Emergency termination Board. The IS200TREAH2AED circuit board is one of the components that make up the GE Mark VI series. The Mark VI is one of the series that make up the Mark family of gas/turbine equipment. These products are used to automate and manage the processes of gas turbines and/or steam turbines.

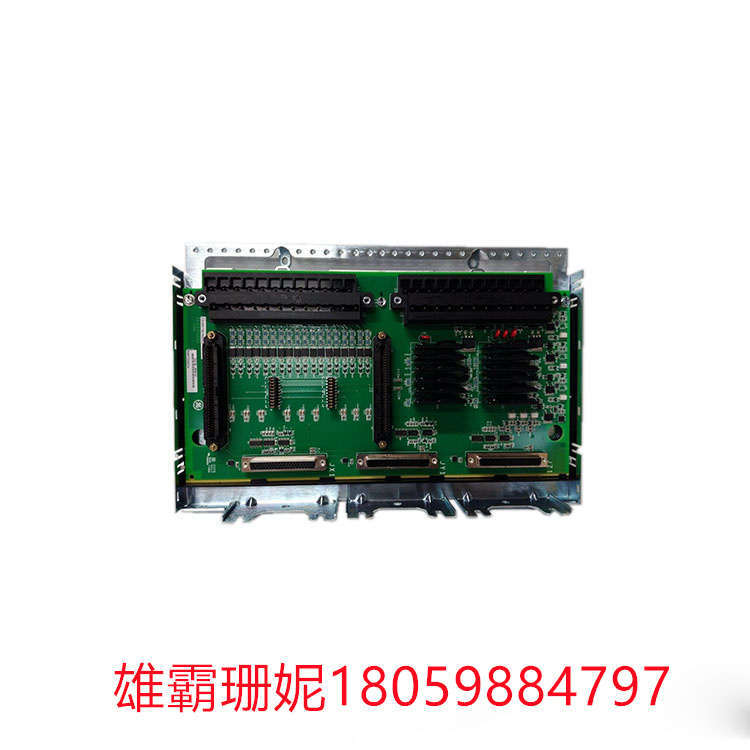

The rectangular IS200TREAH2AED printed circuit board has two (2) long solid black terminal blocks on its left border. Inside each post are 24 silver metal terminals. A series of approximately ten (10) round red elements, called MOVs or metal oxide varistors, are arranged on the right side of these terminal blocks. Most of the space in the middle of the IS200TREAH2AED is occupied by collectors or large relays or contactors. These relays/contactors are arranged into two (2) long wires of each (6) element. Components are placed in pairs, parallel to each other from top to bottom. Along the right border of the IS200TREAH2AED is a set of three (3) jack connector ports. Each port contains a collection of small pin ports. Four large capacitors of rectangular shape can be found in two (2) different regions on the right side of the IS200TREAH2AED. These four (4) components are pure yellow. Two (2) are paired near the top right corner and the other two (2) are paired in the bottom right corner.
