通用电气创建了IS200TPROS1CBB作为Speedtronic Mark VI系列的一个组件。该系列是通用电气Mark系列的几个系列之一。

IS200TPROS1CBB是一种被称为保护终端板的设备。自1969年Mark 1在新泽西州首次亮相以来，通用电气的Mark生产线已被用于燃气和蒸汽轮机的管理和自动化数十年。

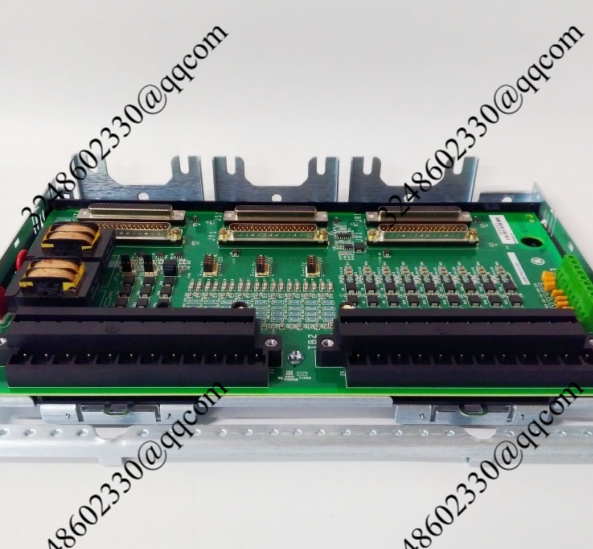

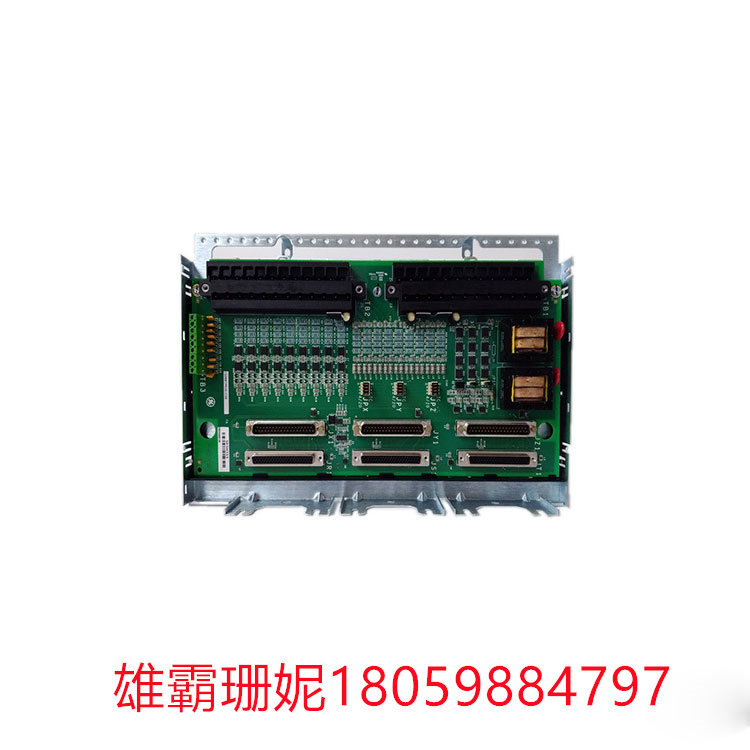

IS200TPROS1CBB是一个长印刷电路板，有许多电子元件，从很小到很大。两个黑色端子块有24(24)个由金属制成的银端子。每个标签上都标有从1到48的白色数字。IS200TPROS1CBB的另一端有三(3)个大型连接器端口，可用于将额外的组件连接到IS200TPROH1A。

三(3)更多的连接器端口，大约有一半大的其他人坐在垂直的线，这些左边。在IS200TPROS1CBB的中央，

两个(2)个中间红中间黄的大继电器垂直配对。红色金属氧化物压敏电阻或MOV直接放置在这些MOV的左侧。

IS200TPROS1CBB的下半部分大部分被一组形状像黑色矩形的二极管所占据。这些二极管是水平排列的。

许多非常小的电阻器被蓝色和黑色的条带覆盖，沿着IS200TPROS1CBB的长度垂直排列。许多非常小的银色电容器也排列在IS200TPROS1CBB的左侧。
