环境温度范围-40℃~ +70℃

功能缩写aepa

制造商美国通用电气公司，通用电气工业系统

印刷电路板

零件号为IS200TPROH1BCB

系列手册ger - 4193a通用电气电源系统手册

重量约3磅。

制造具有连接可选辅助板的能力，IS200TPROH1BCB板被简单地标记为印刷电路板。如果您决定使用可选的辅助板，它将通过两针连接器与AEPA板通信。辅助板与AEPA板通信用的两个引脚连接器为公引脚连接器，位于板的左上角。该板的其他一些组件是两个三插头连接器，六个金属氧化物压敏电阻(MOVs)，以及许多其他组件。这个板上的移动点排列在一起，位于右上角，颜色为红色。

当IS200TPROH1BCB板已安装在马克六涡轮控制系统，它将位于VME机架，VME机架将有21或13个插槽。该单板只占用一个VME槽位。AEPA板可以使用多种冗余模型，如单冗余、双冗余或三重冗余，根据您决定在什么上运行模型，该板实际上可以同时使用几种冗余类型。

IS200TPROH1BCB模型可以使用两种不同类型的通信，即IONet或单元数据高速公路(UDH)。UDH是一个基于以太网的局域网，不仅可以与Mark VI系统中的其他电路板通信，还可以与Fanuc系列基于plc的控制器通信，这些控制器也是由通用电气制造的，以及EX2000发电机励磁控制。其他可以使用的系统可以在GER-4193A涡轮控制系统指令指南中找到。

IS200TPROH1BCB GE  马克六涡轮控制系统

General Electric (GE) has developed the IS200TPROH1BCB protected terminal Board as a component in the Mark VI series for gas/steam turbine management and automation. IS200TPROH1BCB is a version of a printed circuit board or PCB. The IS200TPROH1BCB and other components in the Mark VI series are part of the larger Mark family of turbine controls.

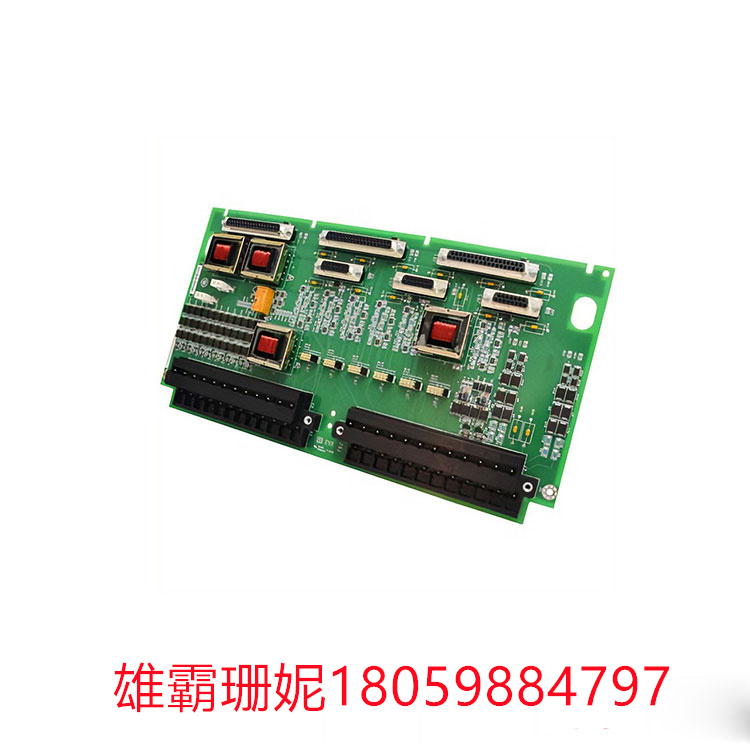

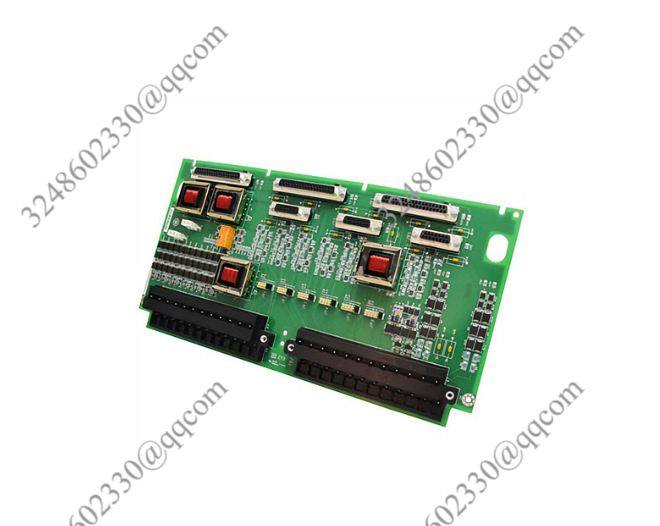

The IS200TPROH1BCB PCB is rectangular. The most prominent components on the IS200TPROH1BCB are the two terminal blocks and the two relays or contactors. The terminals are black and large in size. They are located vertically on the left edge of IS200TPROH1BCB. The relays on the IS200TPROH1BCB are paired vertically in the center of the top of the IS200TPROH1BCB. Most of these relays are red, and they have yellow and black sections on top. Immediately to the left of these relays are two red circular MOVs or metal oxide varistors. Throughout the IS200TPROH1BCB, there are several small size solid yellow capacitors, mainly located in the bottom half of the board. The right edge of the IS200TPROH1BCB has three (3) medium-sized jack connector ports, named JZ1, JY1, and JX1. Three (3) of these connector ports that are smaller (about half the size) than the others have been arranged to the left of these other connector ports. The smaller connector ports are named JZ5, JY5, and JX5. Three (3) black variable resistors or potentiometers are located on the upper right side of the IS200TPROH1BCB.
