通用电气或GE开发了is200tdbth6acd印刷电路板或PCB作为Mark VI系列的组件。Mark VI和GE Mark系列的其他系列是为了管理和自动化燃气轮机和蒸汽轮机的操作而创建的。这些线在世界各地的各个行业中使用，并且自1969年发布以来一直是Mark I。IS200TDBTH6ACD是一个被称为分立单工板的部件。

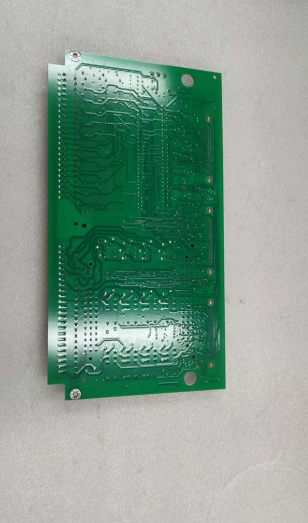

IS200TDBTH6ACD印刷电路板是一个比较大的器件。这块电路板上有许多大大小小的电子元件。位于IS200TDBTH6ACD左边缘的是两(2)个大的绿色端子。每个接线柱内部都包含一系列由银色金属制成的小接线柱，形状像立方体。单个圆形红色电容器位于PCB左侧的这两(2)端子块之间。沿着IS200TDBTH6ACD的对面边缘排列的是三(3)连接器端口。每个连接器端口都有许多母连接器。这些黑色端口安装在银色金属件上。IS200TDBTH6ACD的中心由一系列至少8个小型集成电路组成。这些集成电路每个都包含一个由非常微小的元件组成的独立网络，例如二极管、电容器和电阻器。在这些集成电路中间有一个小矩形的黄色实心电容器。

IS200TDBTH6ACD Mark VI系列的组件

General Electric or GE developed the is200tdbth6acd printed circuit board or PCB as a component of the Mark VI series. The Mark VI and other families of the GE Mark series were created to manage and automate the operation of gas and steam turbines. These lines are used in various industries around the world and have been the Mark I since their release in 1969. The IS200TDBTH6ACD is a component known as a discrete simplex.

The IS200TDBTH6ACD printed circuit board is a relatively large device. There are many large and small electronic components on this circuit board. Located on the left edge of the IS200TDBTH6ACD are two (2) large green terminals. Inside each post is a series of small posts made of silver metal, shaped like a cube. A single round red capacitor is located between these two (2) terminal blocks on the left side of the PCB. Lined up along the opposite edge of the IS200TDBTH6ACD are three (3) connector ports. Each connector port has a number of female connectors. These black ports are mounted on silver metal pieces. The center of the IS200TDBTH6ACD consists of a series of at least eight small integrated circuits. These integrated circuits each contain a separate network of very tiny components, such as diodes, capacitors, and resistors. In the middle of these integrated circuits is a small rectangular yellow solid capacitor.
