IS200TBCIS2CCD触点输入端子板是由通用电气公司或GE公司开发的Mark VI系列中的一个组件。Mark VI用于控制和自动化蒸汽和燃气轮机操作。IS200TBCIS2CCD是一种PCB或印刷电路板。

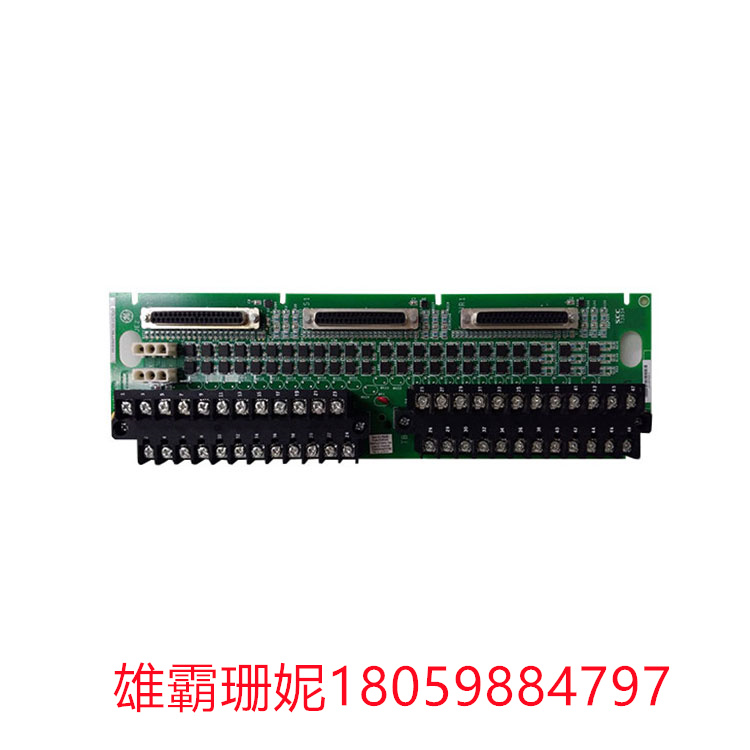

IS200TBCIS2CCD在其表面包含许多电子元件。这些组件中最引人注目的是两个大的黑色接线柱，每个接线柱包含24个端子。每个终端都用白色字母1到48做了标记。直接在这两个(2)端子块的右边是一长串固体红色MOVs或金属氧化物压敏电阻。金属氧化物压敏电阻呈圆形。在中心的IS200TBCIS2CCD的顶部可以找到两个(2)实心白色连接器。沿着IS200TBCIS2CCD的右边缘是一条由三(3)个黑色和银色插孔连接器端口组成的线，垂直对齐。IS200TBCIS2CCD的中心充满了许多银色金属制成的小部件，看起来像非常小的矩形。这许多元件被称为二极管。所述二极管被布置成平行行，每行四(4)个二极管。在这些二极管的左边，在白色连接器和黑色和银色连接器端口之间对齐，是一条小电阻的垂直线。这些电阻器有蓝、黑、白三种颜色。两(2)个额外的垂直行也可以在这个顶部行下面找到。

IS200TBCIS2CCD是带组隔离板的接触输入。它用于Mark VI Speedtronic系统。IS200TBCIS2CCD也可用于MKVIe系统。

IS200TBCIS2CCD GE  触点输入端子板

The IS200TBCIS2CCD contact input terminal board is a component in the Mark VI series developed by General Electric or GE. The Mark VI is used to control and automate steam and gas turbine operations. The IS200TBCIS2CCD is a PCB or printed circuit board.

The IS200TBCIS2CCD contains a number of electronic components on its surface. The most striking of these components are two large black terminals, each containing 24 terminals. Each terminal is marked with white letters 1 through 48. Directly to the right of these two (2) terminal blocks is a long string of solid red MOVs or metal oxide varistors. Metal oxide varistors are circular. Two (2) solid white connectors can be found on the top of the IS200TBCIS2CCD in the center. Along the right edge of the IS200TBCIS2CCD is a line consisting of three (3) black and silver jack connector ports, aligned vertically. The center of the IS200TBCIS2CCD is filled with many small parts made of silver metal that look like very small rectangles. These many components are called diodes. The diodes are arranged in parallel rows with four (4) diodes in each row. To the left of these diodes, aligned between the white connector and the black and silver connector ports, is a vertical line of small resistance. These resistors come in blue, black and white. Two (2) additional vertical rows can also be found below this top row.

The IS200TBCIS2CCD is a contact input for the strip isolation board. It is used in Mark VI Speedtronic systems. The IS200TBCIS2CCD is also available for MKVIe systems.
