IS200DTAIH1ABB GE 模拟输入/输出终端板
IS200DTAIH1ABB是为Mark VI系统创建的GE组件。Mark VI是在Speedtronic系列名称下发布的燃气/蒸汽轮机管理系统。自20世纪60年代以来，该系列一直用于涡轮机管理的各种迭代。Mark VI具有以太网通信能力，并在硬件和软件中包括机载诊断(限制检查)。

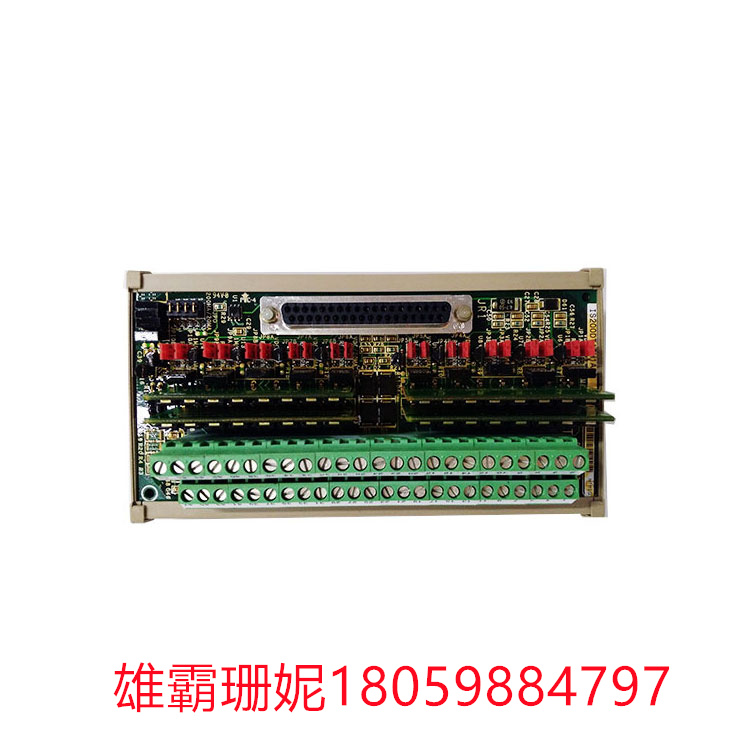

IS200DTAIH1ABB是一款单工模拟输入/输出终端板。它是一个紧凑的模拟信号输入板。电路板安装在一个塑料支架上，使PCB可以安装在din导轨上。这块电路板有十个模拟输入和两个模拟输出。输出为0-20mA，但可以通过重新配置跳线来配置0-200mA电流。

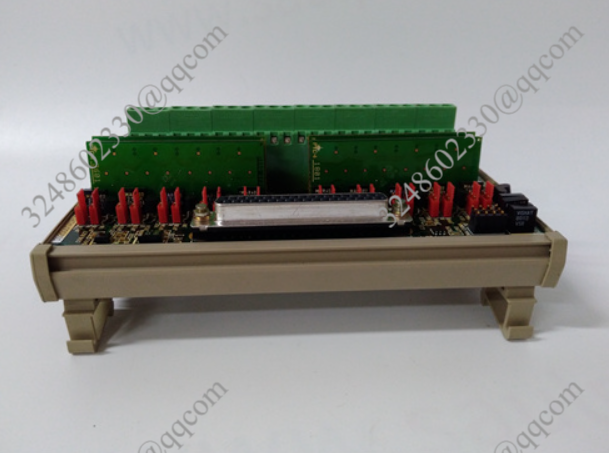

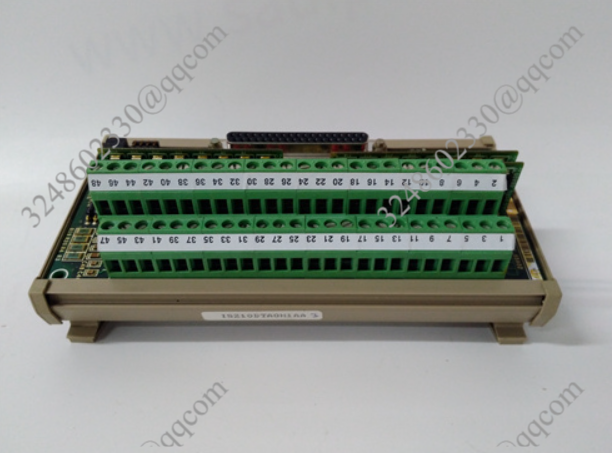

IS200DTAIH1ABB具有单个37针连接器和闭锁紧固件。这个标记为JR1。该板有一个端子板(TB1)，有48个螺钉连接。该端子带永久安装在电路板上。端子排一般采用#18 AWG线的屏蔽双绞线。请注意，螺钉43/44被指定为接地(SCOM)连接。地线应尽量短。该板有21个跳线开关;这些被标记为JP1A/B- jp10a /B(20)加上JP0。电路板还包括各种电容器、电阻器和集成电路，以及四个小的子面板。板上的跳线用于配置电流和电压。
IS200DTAIH1ABB GE 模拟输入/输出终端板
IS200DTAIH1ABB由GE提供技术支持。有关该PCB、其组件或安装程序的信息可以通过手册、用户指南和数据表找到。
The IS200DTAIH1ABB is a GE component created for the Mark VI system. The Mark VI is a gas/steam turbine management system released under the Speedtronic series name. This series has been used for turbine management since the 1960s in its various iterations. The Mark VI has Ethernet communication capabilities and includes onboard diagnostics (limit checking) within both the hardware and the software.
The IS200DTAIH1ABB is a Simplex Analog Input/Output terminal board. It is a compact input board for analog signals. The board is mounted into a plastic holder that allows the PCB to be DIN-rail mounted. This board has ten analog inputs as well as two analog outputs. The outputs are 0-20mA but one can be configured for 0-200mA current by reconfiguring jumpers.
The IS200DTAIH1ABB has a single 37-pin connector with latching fasteners. This is labeled JR1. The board has a terminal board (TB1) with 48 screw connections. This terminal strip is permanently mounted to the board. Shielded twisted pairs of #18 AWG wire are typically used on the terminal block. Please note that screws 43/44 are designated as the ground (SCOM) connection. The ground wire should be as short as possible. The board has twenty-one jumper switches; these are labeled JP1A/B-JP10A/B (20) plus JP0. The board also includes various capacitors, resistors, and integrated circuits, as well as four small sub-panels. Jumpers on the board are used to configure current and voltage.
Technical support for the IS200DTAIH1ABB was provided by GE. Information about this PCB, its components, or installation procedures may be found through manuals, user guides, and data sheets.
