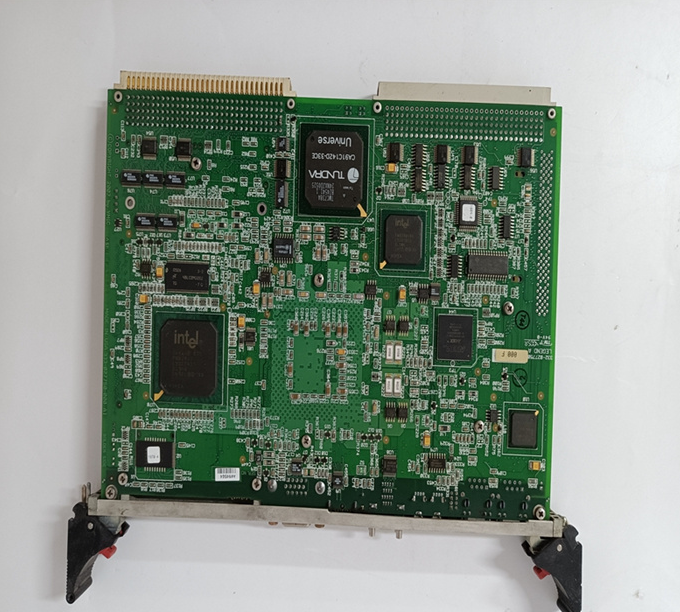

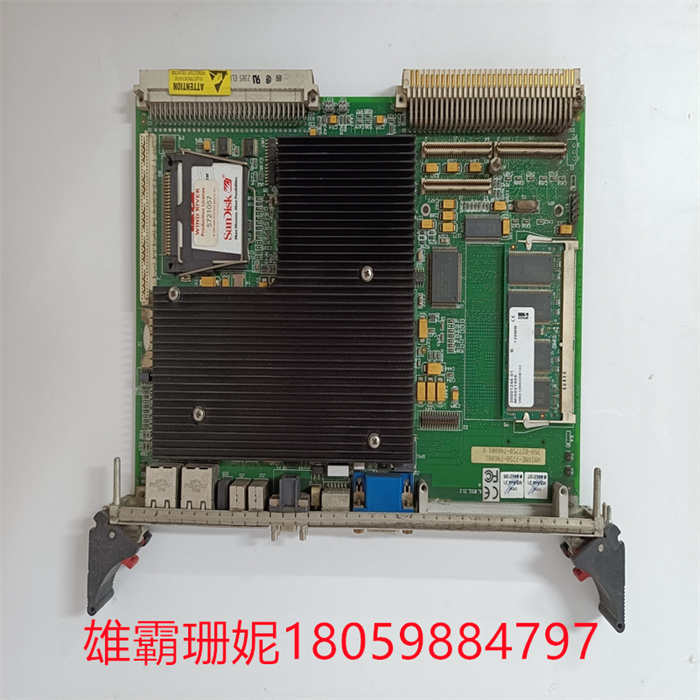

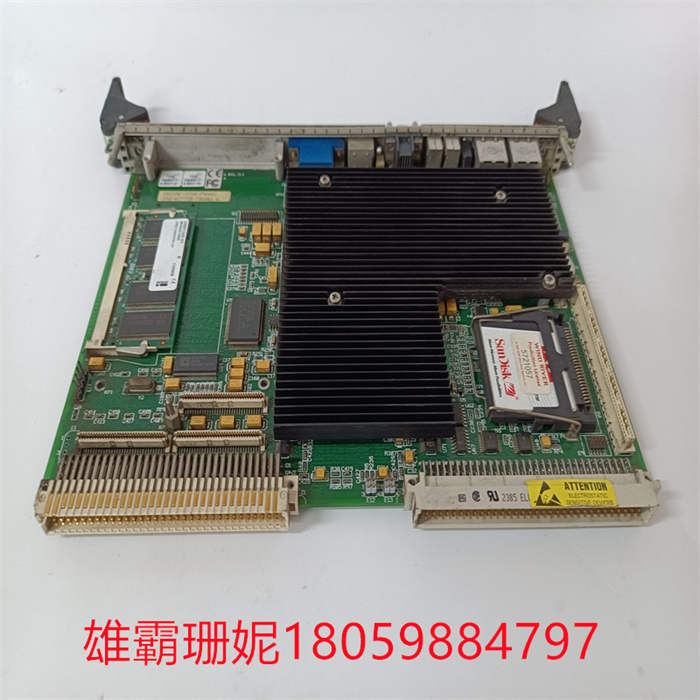

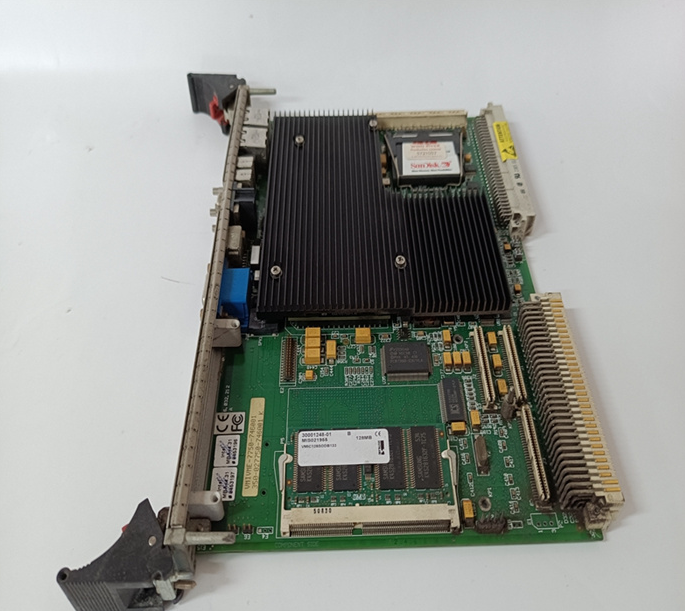

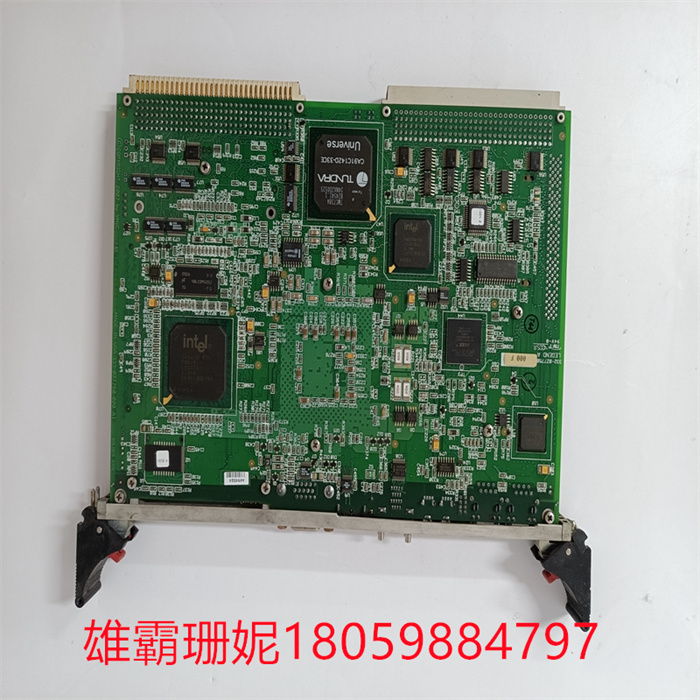

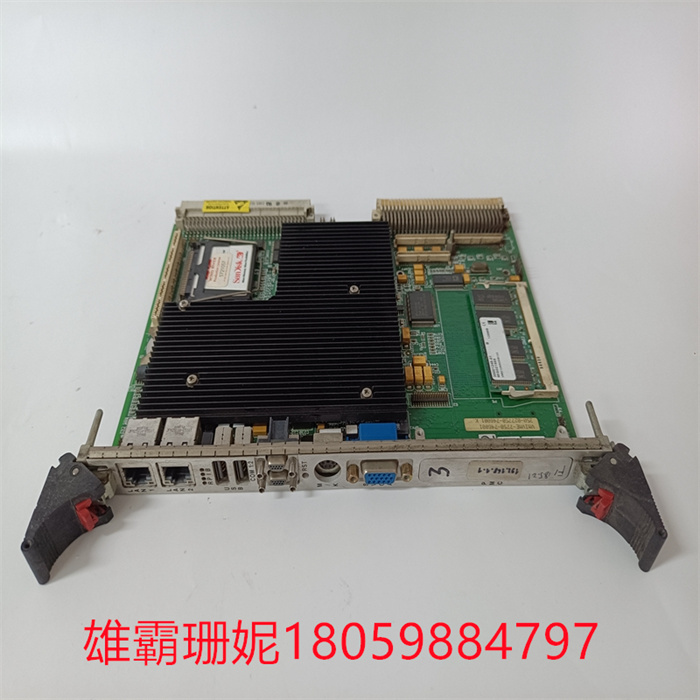

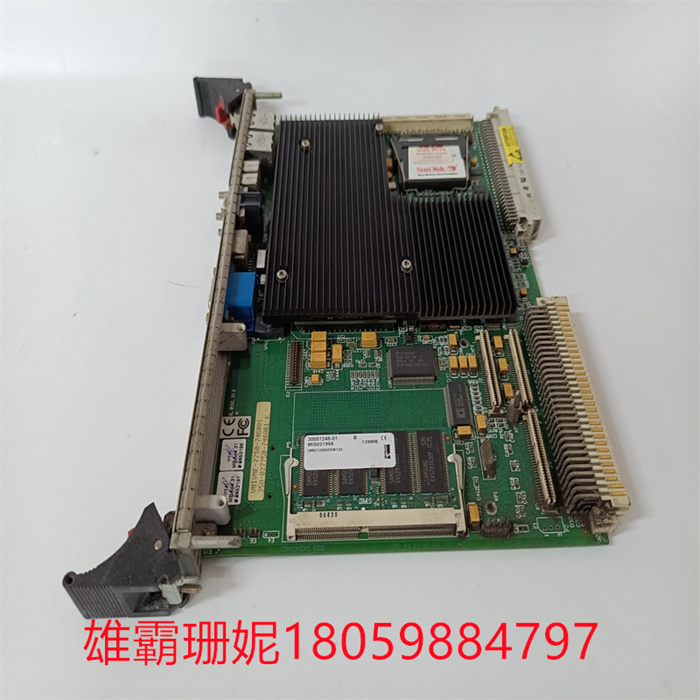

VMIVME-7750-746001 350-027750-746001 VMIC处理器板双奔腾III VMEBUS SBC

VMIVME-7750提供了对嵌入式应用程序有用的功能，例如：

•I2C总线支持

•远程以太网引导

•高达512 MB的可启动小型闪存（可选）

•四个通用可编程定时器（两个16位和两个32位）

•软件可选看门狗定时器，带复位功能

•32KB非易失性SRAM

此外，VMIVME-7750提供了带有前面板访问的PMC扩展站点。

VMIVME-7750能够执行当今许多嵌入式操作系统

VxWorks、QNX、Solaris、LynxOS和Microsoft的嵌入式系统

第章介绍了VMIVME-7750的嵌入式功能

3。VMIVME-7750适用于各种应用，例如：

电信、模拟、仪表、工业控制、过程控制

监控、工厂自动化、自动化测试系统、数据采集系统和任何地方需要VME插槽。

VMIC的VMIVME-7750是一款功能齐全的Pentium III兼容计算机

单槽、被动冷却、Eurocard型，利用先进的

Intel 815E芯片组的技术，以133MHz的前端总线速率运行。这个

VMIVME-7750符合VME规范第C.1版

透明的PCI到VME桥，允许该板用作系统控制器

或多CPU系统中的外围CPU。

VMIVME-7750提供桌面系统上常见的功能，例如：

•最高512MB PC133 SDRAM

•内置SVGA支持4 MB DRAM显示缓存

•内置双10/100 Mbit以太网

VMIVME-7750 VMIVME-7750-746001 350-027750-746001 K 通讯卡

VMIVME-7750-746001 350-027750-746001 VMIC processor board Dual Pentium III VMEBUS SBC

The VMIVME-7750 provides features useful for embedded applications, such as:

•I2C bus support

• Remote Ethernet boot

• Up to 512 MB of bootable small flash memory (optional)

• Four universal programmable timers (two 16-bit and two 32-bit)

• Software optional watchdog timer with reset function

•32KB of non-volatile SRAM

In addition, the VMIVME-7750 provides a PMC extension site with front panel access.

The VMIVME-7750 is capable of running many of today's embedded operating systems

VxWorks, QNX, Solaris, LynxOS, and Microsoft embedded systems

Chapter 1 introduces the embedded functions of VMIVME-7750

3. The VMIVME-7750 is suitable for a variety of applications such as:

Telecommunications, analog, instrumentation, industrial control, process control

VME slots are needed for monitoring, factory automation, automated test systems, data acquisition systems, and anywhere else.

VMIC's VMIVME-7750 is a fully functional Pentium III-compatible computer

Single slot, passive cooling, Eurocard type, utilizing advanced

The Intel 815E chipset's technology runs at a front end bus rate of 133MHz. this

The VMIVME-7750 complies with VME specification version C.1

A transparent PCI to VME bridge allows the board to be used as a system controller

Or a peripheral CPU in a multi-CPU system.

The VMIVME-7750 provides features commonly found on desktop systems, such as:

• Up to 512MB PC133 SDRAM

• Built-in SVGA supports 4 MB DRAM display cache

• Built-in dual 10/100 Mbit Ethernet
