>>>>>型号:VMIACC-5595-208 350-805595-208N |反射式内存集线器 |提供多达 8 个端口
[产品说明]
品牌： GE
型号：VMIACC-5595-208 350-805595-208N
产品类型：反射式内存集线器
付款方式：电汇，西联
汇款 装运港：中国厦门
交货时间：1-3个工作日
条件：全新和 100% 原始
保修：12 个月
VMIACC-5595-208 350-805595-208N 是一款托管集线器，设计用于与我们的 5565 系列反射式存储器实时网络产品配合使用。反射式内存集线器在检测到信号丢失或有效同步模式丢失时可以自动绕过端口，从而允许网络中的其他节点保持运行状态。
VMIACC-5595-208 350-805595-208N
自动旁路可选择通过信号丢失或同步模式丢失来控制
自动绕过光纤网络中有缺陷或断开连接的节点
中心程序集最多可以级联 256 个节点
使用小型可插拔 (SFP) 收发器提供多达 8 个端口
反射式存储器产品网络
适用于我们的 5565
VMIACC-5595-208 350-805595-208N
端口与信号：
使用小型可插拔收发器提供多达八个端口。
每个端口再生串行光信号，消除了插入损耗和电缆衰减的问题。
信号再生也减少了抖动。
自动故障处理：
当检测到信号丢失或有效同步模式丢失时，它可以自动绕过端口，允许网络中的其他节点保持运行。
可配置性：
可配置最长10千米的电缆。
可配置为19英寸1U机架式盘柜或台式盘柜。

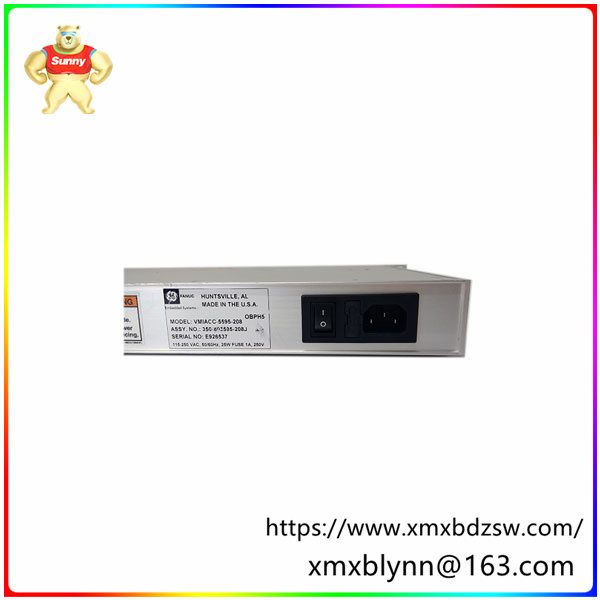

通用电源允许以几乎任何国际电源标准运行。
监测与控制：

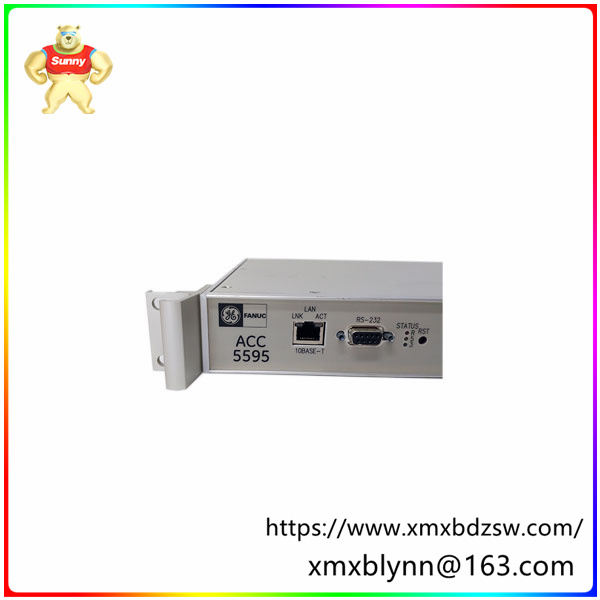

RS232端口提供了通过简单的PC串行端口监控反射内存网络的能力。
以太网端口功能允许用户通过局域网(LAN)或Web浏览器从很远的地方监视和控制集线器。
[其他型号推荐]
>>>>> Model: VMIAC-5595-208 350-805595-208N | Reflective memory hub | provides up to 8 ports
Brand: GE
Model: VMIAC-5595-208 350-805595-208N
Product Type: Reflective memory hub
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
The VMIAC-5595-208 350-805595-208N is a managed hub designed to work with our 5565 series reflective memory real-time networking products. Reflective memory hubs can automatically bypass ports when they detect signal loss or loss of effective synchronization mode, allowing other nodes in the network to remain operational.
VMIACC-5595-208 350-805595-208N
Automatic bypass can optionally be controlled by signal loss or synchronous mode loss
Automatically bypass faulty or disconnected nodes in the fiber network
The central assembly can be cascaded with up to 256 nodes
Up to 8 ports are available with small pluggable (SFP) transceivers
Reflective memory product network
Applies to our 5565
VMIACC-5595-208 350-805595-208N
Ports and signals:
Up to eight ports available with a small pluggable transceiver.
Each port regenerates the serial optical signal, eliminating insertion losses and cable attenuation.
Signal regeneration also reduces jitter.
Automatic troubleshooting:
When a signal loss or loss of effective synchronization mode is detected, it can automatically bypass the port, allowing other nodes in the network to remain operational.
Configurability:
Up to 10 km of cable can be configured.
It can be configured as a 19-inch 1U rack cabinet or desktop cabinet.
Universal power supplies allow operation with almost any international power standard.
Monitoring and control:
The RS232 port provides the ability to monitor reflected memory networks via a simple PC serial port.
The Ethernet port feature allows users to monitor and control hubs from far away via a local area network (LAN) or Web browser.
