>>>>>型号:IS200JPDFG1ACC 配电板 接受冗余的125 V直流电源输入
[产品说明]
品牌：GE
型号：IS200JPDFG1ACC
产品类型：配电板
付款方式：电汇，西联
汇款 装运港：中国厦门
交货时间：1-3个工作日
条件：全新和 100% 原始
保修：12 个月

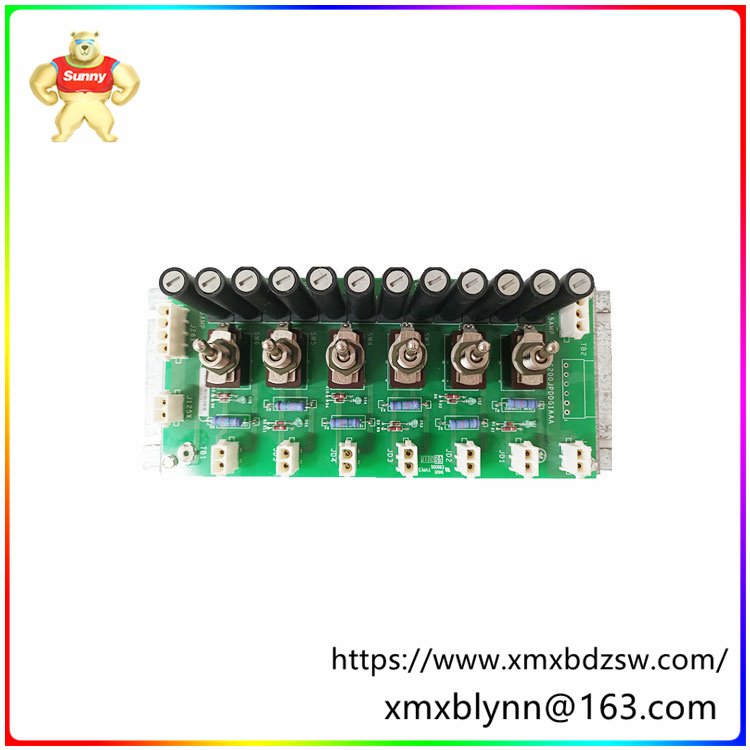

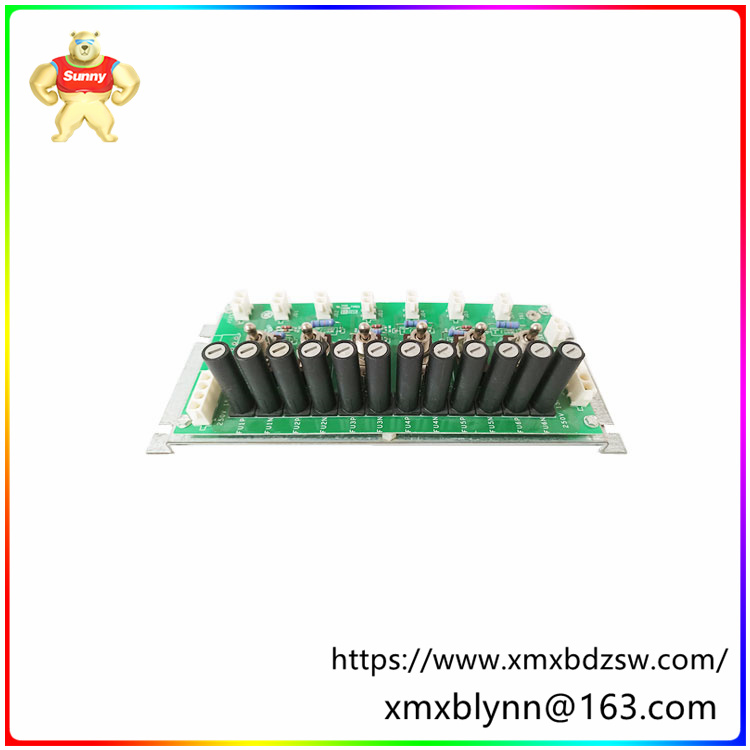

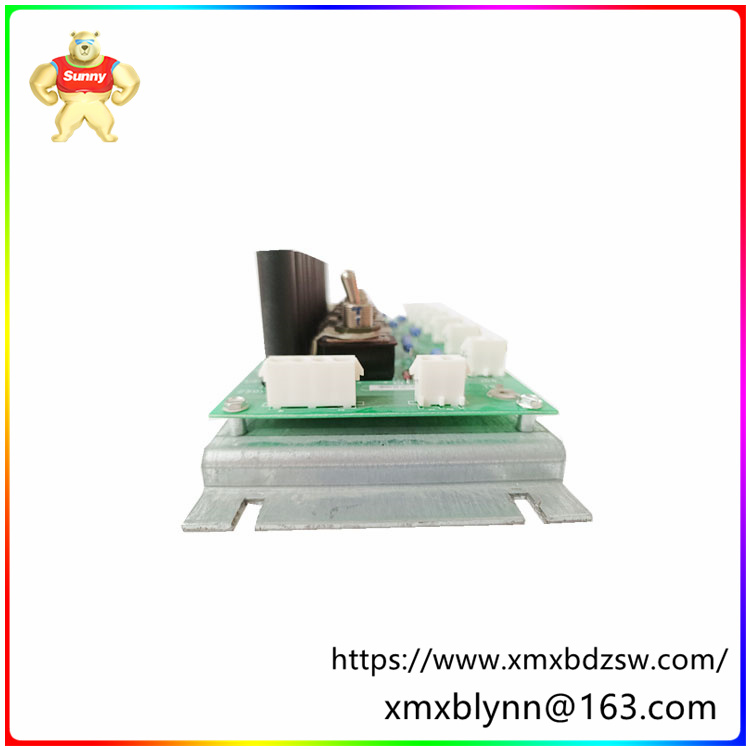

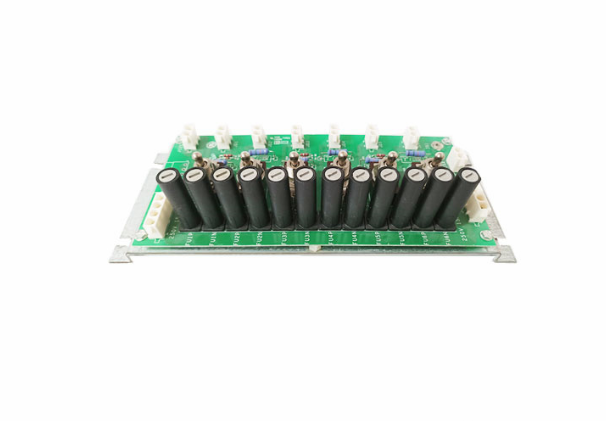

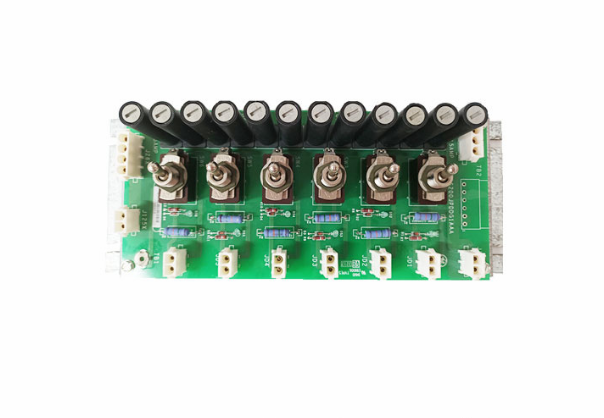

IS200JPDFG1A是Mark VI配电板。JPDF板接受冗余的125 V直流电源输入，并将电源分配给其他系统板。JPDF在以大地为中心的浮动直流总线上运行，而不是在接地系统上运行。
IS200JPDFG1A板非常可靠，因此不易损坏。但是处理不当和存放不当会影响卡的功能。因此，我们建议在推荐的条件下将卡片保存在静电敏感的储物盒中。
IS200JPDFG1ACC是通用电气为Mark VI或Mark VIe创建的组件。Mark VI使用中央控制模块，而Mark VIe则通过分布式控制系统(DCS)实现中央管理。
集成软件协作：
这两个系统都是为了与CIMPLICITY图形平台等集成软件协同工作而创建的。
物理特性：
IS200JPDFG1ACC作为通用电气ISBB旁路模块，包含在一个具有四个输入或输出的矩形外壳内。
其中两个输入/输出放置在单元的底部，两个放置于顶部。
在装置的顶部，有两个并排放置的母千斤顶。
连接与通信：
该板使用以太网连接，该连接使用由主板上的BIOS功能初始化的IRQ 5。
ACLE板上的以太网连接是位于ACL板前面板的10baseT或RJ45插孔。
控制与管理：
作为基于微处理器的控制，该板具有外围组件互连(PCI)控制器，该控制器管理不同的输入和输出、与PCI总线之间的配置传输以及管理各种存储器功能。
该型号还具有一个128 KB的L2缓存，该缓存与PCI控制器一起使用并由其控制，缓存设置为152 NC缓存行，用于填充L1和L2缓存之间的行。
[其他型号推荐]
>>>>> Model :IS200JPDFG1ACC switchboard accepts redundant 125 V DC power input
Brand: GE
Model: IS200JPDFG1ACC
Product type: Power distribution board
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
The IS200JPDFG1A is a Mark VI switchboard. The JPDF board accepts redundant 125 V DC power input and distributes the power to other system boards. JPDF operates on a floating DC bus centered on the ground, rather than on a grounded system.
The IS200JPDFG1A board is very reliable and therefore not susceptible to damage. However, improper handling and storage can affect the function of the card. Therefore, we recommend keeping the card in an electrostatic sensitive storage box under the recommended conditions.
IS200JPDFG1ACC is a General Electric component created for Mark VI or Mark VIe. Mark VI uses a central control module, while Mark VIe is centrally managed through a distributed control system (DCS).
Integrated software collaboration:
Both systems were created to work with integrated software such as the CIMPLICITY graphics platform.
Physical characteristics:
The IS200JPDFG1ACC, as a General Electric ISBB bypass module, is contained in a rectangular housing with four inputs or outputs.
Two of the inputs/outputs are placed at the bottom of the unit and two at the top.
At the top of the device, there are two female jacks placed side by side.
Connectivity and Communication:
The board uses an Ethernet connection that uses IRQ 5 initialized by the BIOS function on the motherboard.
The Ethernet connection on the ACLE board is a 10baseT or RJ45 jack located on the front panel of the ACL board.
Control and management:
As a microprocessor-based control, the board has a Peripheral Component Interconnection (PCI) controller that manages different inputs and outputs, configuration transfers to and from the PCI bus, and manages various memory functions.
The model also has a 128 KB L2 cache, which is used with and controlled by the PCI controller, and the cache is set to 152 NC cache rows for filling the rows between the L1 and L2 caches.
