IS200TBCIS2C Mark VI端子板 每个输入都有一对接线点

>>>>>型号:IS200TBCIS2C   Mark VI端子板     每个输入都有一对接线点

【功能描述】

制造者:GE通用电气

产品编号:IS200TBCIH2C

产品类型:端子板

系列:GE Speedtronic Mark Vl系列

保修:3-7天

加急维修:24- 48小时

保证:1年

IS200TBCIS2C是Mark VI端子板。该板通过外部 I/O 端接。这主要用于 GE Speedtronic Mark VI 系列。此外，Mark VI是一个灵活的平台，适用于多种应用。它还为单工、双冗余和三冗余系统提供高速网络 I/O。

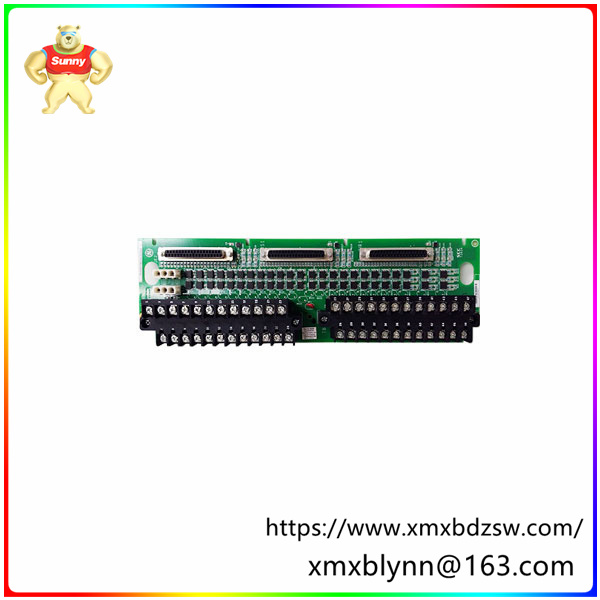

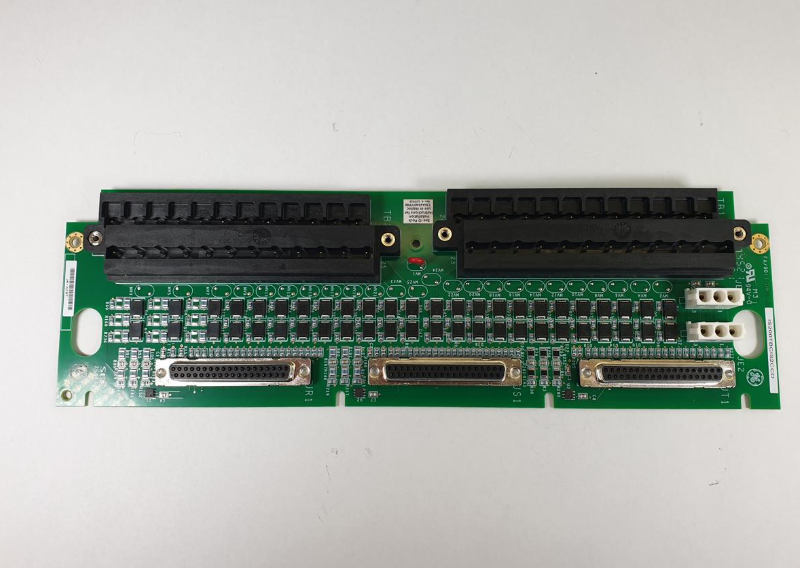

通用电气 Speedtronic Mark VIeS IS200TBCIS2C 是一款分立式输入端子板，设计为 Mark VI 系统的端子板。这是一个非常长的电路板，包含许多电气元件，包括两个用于固定一系列端子的接线端子。这些接线端子中的每一个都有 48 个银色金属端子或 24 个端子。它们被指定为 TB1 和 TB2，上面刻有白色文字的数字。该板还具有五个红色实心电容器，位于小型全球形接线端子之间。其他组件被放置在多个平行行中，每行四个组件位于电路板的中间。

它在每个输入端都有滤波器，可降低高频噪声，同时抑制浪涌。每个输入都有一对接线点，一个螺钉提供正直流电源，另一个螺钉提供电路板的返回。

前 21 个输入当前以每点 2.5 mA 的电流加载，而后 3 个输入的负载为 10 mA。电路板上没有硬件设置或跳线。

【英文介绍】

Manufacturer: General Electric

Product number :IS200TBCIH2C

Product type: Terminal board

Series :GE Speedtronic Mark Vl series

Warranty :3-7 days

Urgent maintenance: 24-48 hours

Guarantee :1 year

IS200TBCIS2C is a Mark VI terminal board. The board is terminated by external I/O. This is primarily used in the GE Speedtronic Mark VI series. In addition, Mark VI is a flexible platform for a variety of applications. It also provides high-speed network I/O for simplex, dual-redundancy, and triple-redundancy systems.

The GE Speedtronic Mark VIeS IS200TBCIS2C is a separate input terminal board designed for the Mark VI system. This is a very long circuit board containing many electrical components, including two terminal blocks for securing a series of terminals. Each of these terminals has 48 silver metal terminals or 24 terminals. They are designated TB1 and TB2 and are engraved with numbers in white text. The board also has five solid red capacitors located between small global-shaped terminals. The other components are placed in multiple parallel rows, with four components in each row located in the middle of the board.

It has filters at each input to reduce high-frequency noise while suppressing surges. Each input has a pair of wiring points, with one screw providing a straight stream power supply and the other screw providing a return to the board.

The first 21 inputs are currently loaded at 2.5 mA per point, and the last 3 inputs are loaded at 10 mA. There are no hardware Settings or jumpers on the board.
