IS200WROBH1A 配电板 实现最大的故障检测和可用性

☆型号：IS200WROBH1A     配电板    实现最大的故障检测和可用性

【产品详情】

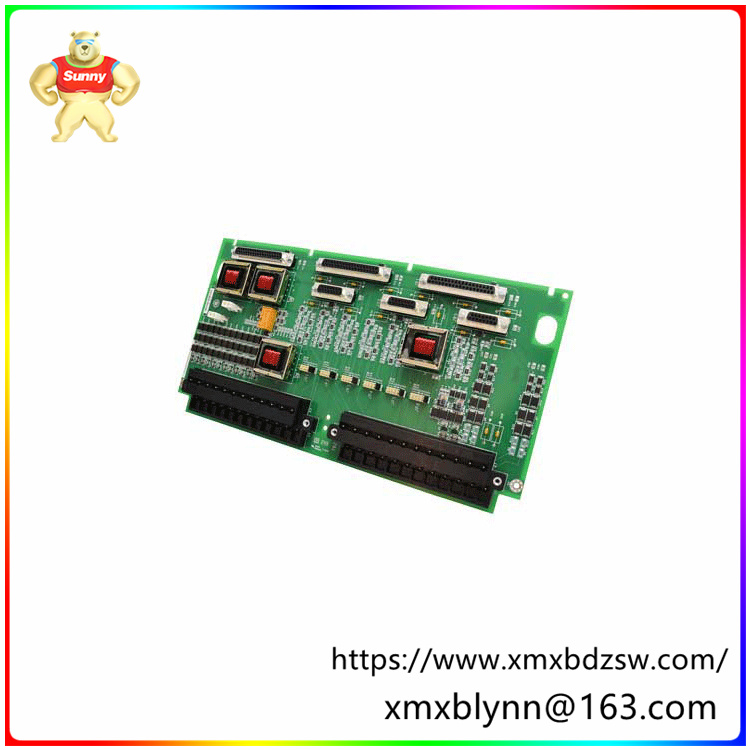

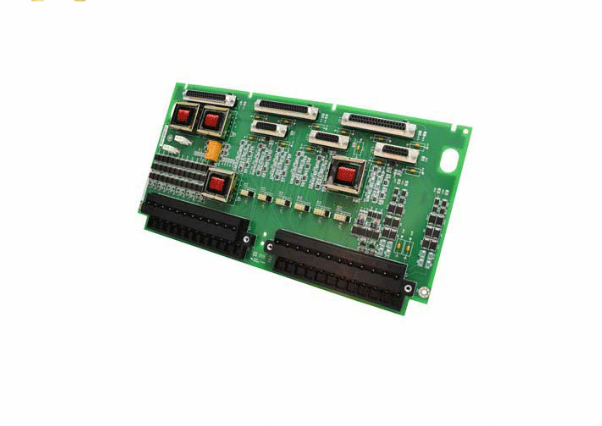

零件编号：IS200WROBH1A

制造商：通用电气

产品类型：配电板

系列：Mark VI 制造

国家/地区：美国

IS200WROBH1A是Mark VI系列下的配电板。GE 将该板作为其 Speedtronic 系列的一部分。Mark 控制平台提供可扩展的冗余级别。具有单工 I/O 和单个网络的单个（简单）控制器是系统的基础。双系统有两个控制器，单或扇形 TMR I/O 和双网络，可提高可靠性并允许在线维修。三个控制器（单个或扇形 TMR I/O）、三个网络以及控制器之间的状态投票构成了 TMR 系统，可实现最大的故障检测和可用性。

核心配电系统和分支电路元件是 PDM 中的两种不同类型。它们负责一个机柜或一组机柜的主电源管理。分支电路元件获取内核输出并将其分配到机柜中的特定电路以供使用。分支电路有自己的反馈方法，这些方法不包括在PPDA I/O包的反馈中。IS200WROBH1A是WROB的继电器保险丝和功率传感卡。这张卡上有十二个保险丝。保险丝的额定电流为 3.15 A，额定电压为 500VAC/400VDC。

【英文介绍】

Part number: IS200WROBH1A

Manufacturer: General Electric

Product type: Power distribution board

Series: Made by Mark VI

Country/region: USA

IS200WROBH1A is a power distribution board of the Mark VI series. GE is offering the board as part of its Speedtronic series. The Mark control platform provides scalable levels of redundancy. A single (simple) controller with simplex I/O and a single network is the foundation of the system. Dual systems with two controllers, single or sector TMR I/O and dual networks increase reliability and allow for online repairs. Three controllers (single or sector TMR I/O), three networks, and state voting between controllers make up the TMR system for maximum fault detection and availability.

The core distribution system and branch circuit elements are two different types in PDM. They are responsible for the main power management of a cabinet or group of cabinets. The branch circuit element takes the kernel output and assigns it to a specific circuit in the cabinet for use. The branch circuit has its own feedback methods, which are not included in the feedback of the PPDA I/O package. IS200WROBH1A is WROB's relay fuse and power sensing card. There are twelve fuses on this card. The fuse is rated at 3.15A and rated at 500VAC/400VDC.
