IS200TRLYS1B 电路板组件 带有使用 C 型触点的插入式磁继电器

☆型号：IS200TRLYS1B      电路板组件      带有使用 C 型触点的插入式磁继电器

【产品详情】

该IS200TRLYS1BGG是通用电气Mark VI系统的电路板组件。该系统旨在管理和控制工业燃气轮机和蒸汽轮机。它是通用电气最复杂的 Speedtronic 系统之一，属于一系列涡轮控制系统，其历史可以追溯到 1960 年代最初的 Mark I 系统发布时。

IS200TRLYS1BGG是一个独立的I/O板。它是可用于 MKVI 的几种分立式 I/O 板之一。其他包括 TBCI、DTCI、TICI 和 DRLY。与 TBCI 和 TICI 一样，IS200TRLYS1BGG 是一种势垒型输入/输出板，带有使用 C 型触点的插入式磁继电器。此版本的电路板用于线圈电流诊断。如果您需要用于诊断触点电压的电路板，请参阅以 H1C 结尾的 TRLY 电路板。在某些情况下，该板还可以在使用 120/240 VAC 电源的系统中提供部分电源保护。

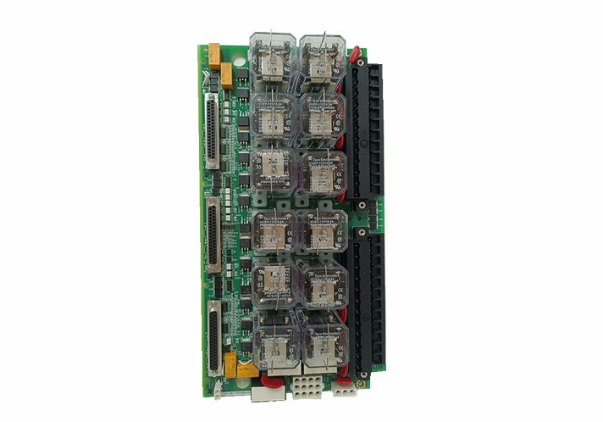

该IS200TRLYS1BGG由沿电路板中心排列的多个继电器构成。一个长板边缘由两个端子条填充，每个端子连接都有编号。另一块板边缘填充了四个 d-shell 连接器。其他板连接器包括三个三针插头。其他电路板组件包括集成电路、可变电阻器、保险丝和电阻器、电容器和二极管。

【英文介绍】

The IS200TRLYS1BGG is a circuit board component for the GE Mark VI system. The system is designed to manage and control industrial gas and steam turbines. It is one of GE's most complex Speedtronic systems and belongs to a family of turbine control systems that dates back to the release of the original Mark I system in the 1960s.

The IS200TRLYS1BGG is an independent I/O board. It is one of several separate I/O boards available for MKVI. Others include TBCI, DTCI, TICI, and DRLY. Like TBCI and TICI, the IS200TRLYS1BGG is a barrier type input/output board with a plug-in magnetic relay using C-type contacts. This version of the board is used for coil current diagnosis. If you need a circuit board for diagnosing contact voltage, see the TRLY circuit board ending in H1C. In some cases, the board can also provide partial power protection in systems using 120/240 VAC power supplies.

The IS200TRLYS1BGG consists of multiple relays arranged along the center of the circuit board. A longboard edge is filled with two terminal strips, each of which is numbered. The other board is filled with four d-shell connectors around the edges. Other board connectors include three three-pin plugs. Other board components include integrated circuits, variable resistors, fuses and resistors, capacitors and diodes.
