IS200TBAIH1C 端子板 提供总电流信号

>>>>>型号:IS200TBAIH1C    端子板      提供总电流信号

【功能描述】

产品编号： IS200TBAIH1C

制造商： 通用电气

系列： Mark VI

产品类型： 端子板

可用性： 有货

制造国家/地区： 美国（USA）

维修： 3-7 天

手册： GEH-6421J

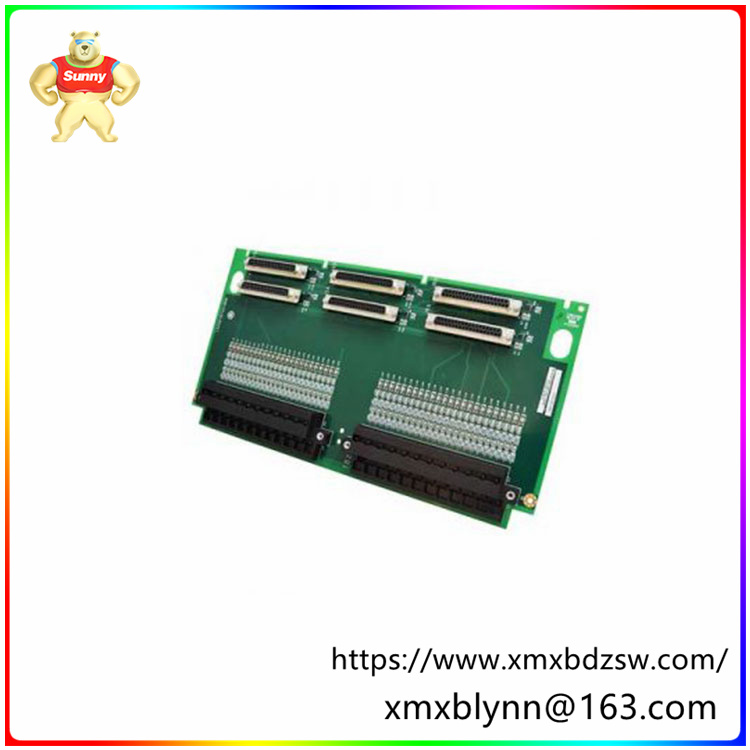

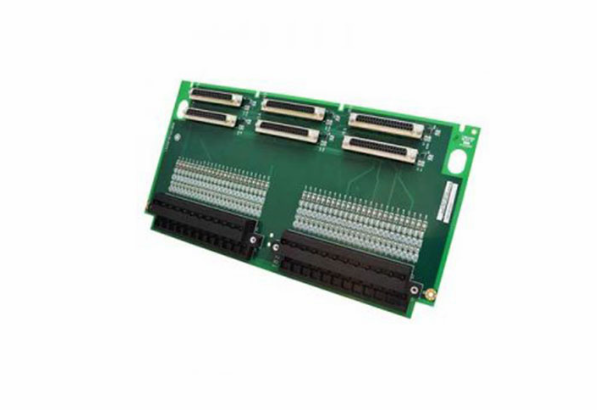

IS200TBAIH1C是由通用电气制造和设计的模拟输入端子板，是燃气轮机控制系统中使用的Mark VI系列的一部分。模拟输入终端板支持2路输出和10路模拟输入。由外部供电的两线制、三线制、四线制或变送器都可以插入十个模拟输入之一。模拟输出的电流可配置为0-20 mA或0-200 mA。浪涌和高频噪声由输入和输出中的噪声抑制电路保护。

为了连接到 I/O 处理器，TBAI 提供了三个 DC-37 引脚连接器。可以使用 TMR 连接所有三个连接器或单工连接一个连接器 （JR1）。可以直接连接到电子设备和电缆连接。对于 TMR 应用中用于 R、S 和 T 控件的三个连接器，输入信号向外扇形。利用TBAI上的测量分流器，将连接的三个输出驱动器的总电流组合在一起，以运行TMR输出。之后，TBAI 为电子设备提供总电流信号，以便它们可以将其调节到指定的设定值。

IS200TBAIH1C安装

位于接线板上的两个I/O接线端子直接连接到10个输入和两个输出。每个块都用两个螺钉固定，并包含 24 个端子，可容纳高达 #12 AWG 的电线。每个接线端子旁边都有一个屏蔽端子连接点。可以支持以下类别的模拟输入和输出：

带模拟输入的两线制变送器

带模拟输入的三线制变送器

带模拟输入的四线制变送器

带有模拟输入和外部电源的变送器

模拟输入，5 伏和 10 伏直流电

0-20 mA 模拟输出

0-200 mA 模拟输出

【英文介绍】

Product ID: IS200TBAIH1C

Manufacturer: General Electric

Series: Mark VI

Product type: Terminal board

Availability: Available

Manufacturing Country: United States (USA)

Maintenance: 3-7 days

Manual: GEH-6421J

The IS200TBAIH1C is an analog input terminal board manufactured and designed by General Electric as part of the Mark VI family used in gas turbine control systems. Analog input The terminal board supports 2 outputs and 10 analog inputs. Externally powered two-wire, three-wire, four-wire, or transmitters can be plugged into one of ten analog inputs. The current of the analog output can be configured to be 0-20 mA or 0-200 mA. Surge and high-frequency noise are protected by noise suppression circuits in the input and output.

To connect to the I/O processor, TBAI offers three DC-37 pin connectors. You can use TMR to connect all three connectors or simplex to connect one connector (JR1). Can be connected directly to electronic devices and cable connections. For the three connectors used for R, S, and T controls in TMR applications, the input signals fan out. Using the measuring shunt on the TBAI, the total current of the three connected output drivers is combined to run the TMR output. After that, TBAI provides a total current signal to electronic devices so that they can adjust it to a specified set point.

IS200TBAIH1C Installation

The two I/O terminals located on the patch board are directly connected to the 10 inputs and two outputs. Each block is secured with two screws and contains 24 terminals that can hold up to #12 AWG of wire. There is a shielded terminal connection point next to each terminal. The following categories of analog inputs and outputs can be supported:

Two-wire transmitter with analog input

Three-wire transmitter with analog input

Four-wire transmitter with analog input

Transmitter with analog input and external power supply

Analog input, 5 volts and 10 volts DC

0-20 mA analog output

0-200 mA analog output
