IS210SAMBH1A 印刷电路板 采用GE的三重模块化冗余（TMR）架构设计

☆型号：IS210SAMBH1A   印刷电路板    采用GE的三重模块化冗余（TMR）架构设计

【产品详情】

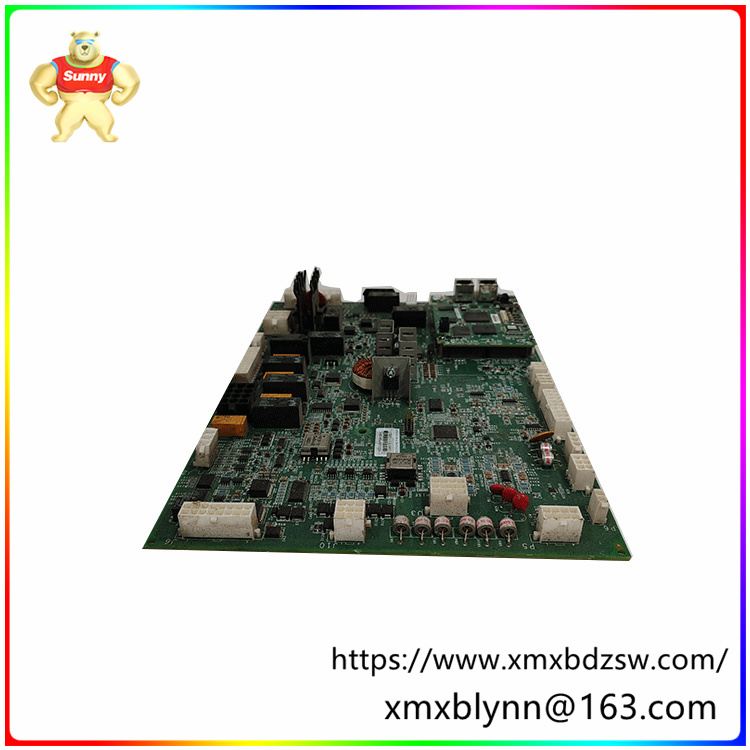

IS210SAMBH1A是一种印刷电路板或PCB部件，最初由通用电气为该公司的Mark VI和Mark VIe涡轮控制系统生产。 这两个系统均采用GE的三重模块化冗余（TMR）架构设计，该架构提供涡轮机关键控制和保护参数的备份，以提高系统的整体可靠性。

该IS210SAMBH1A用作声学监测模块。使用时，该电路板通过位于一个长板边缘的端子条向 Mark VI （Mark VIe） 声学监测系统添加额外的 18 个输入。这些条带提供用于两线输入的附件。该板还具有用于类似输出的附件。输出监控电压信号。

IS210SAMBH1A 内置在 DIN 导轨内。这围绕着电路板的所有四个边缘;但是，法兰在三个边上向上移动，在一个边上向下移动。一些法兰已钻有槽口或安装孔。该板本身标有许多代码，还包括母连接器。该板还标有通用电气标志。

【英文介绍】

The IS210SAMBH1A is a printed circuit board or PCB component originally produced by General Electric for the company's Mark VI and Mark VIe turbine control systems. Both systems are designed with GE's Triple Modular Redundancy (TMR) architecture, which provides backup of key turbine control and protection parameters to improve the overall reliability of the system.

The IS210SAMBH1A is used as an acoustic monitoring module. When used, the board adds an additional 18 inputs to the Mark VI (Mark VIe) acoustic monitoring system via a terminal strip located at the edge of a long board. These strips provide attachments for two-wire input. The board also has attachments for similar outputs. Output monitoring voltage signal.

The IS210SAMBH1A is built into the DIN rail. This surrounds all four edges of the board; However, the flange moves up on three sides and down on one. Some flanges have been drilled with notches or mounting holes. The board itself is marked with many codes and also includes female connectors. The board is also marked with the GE logo.
